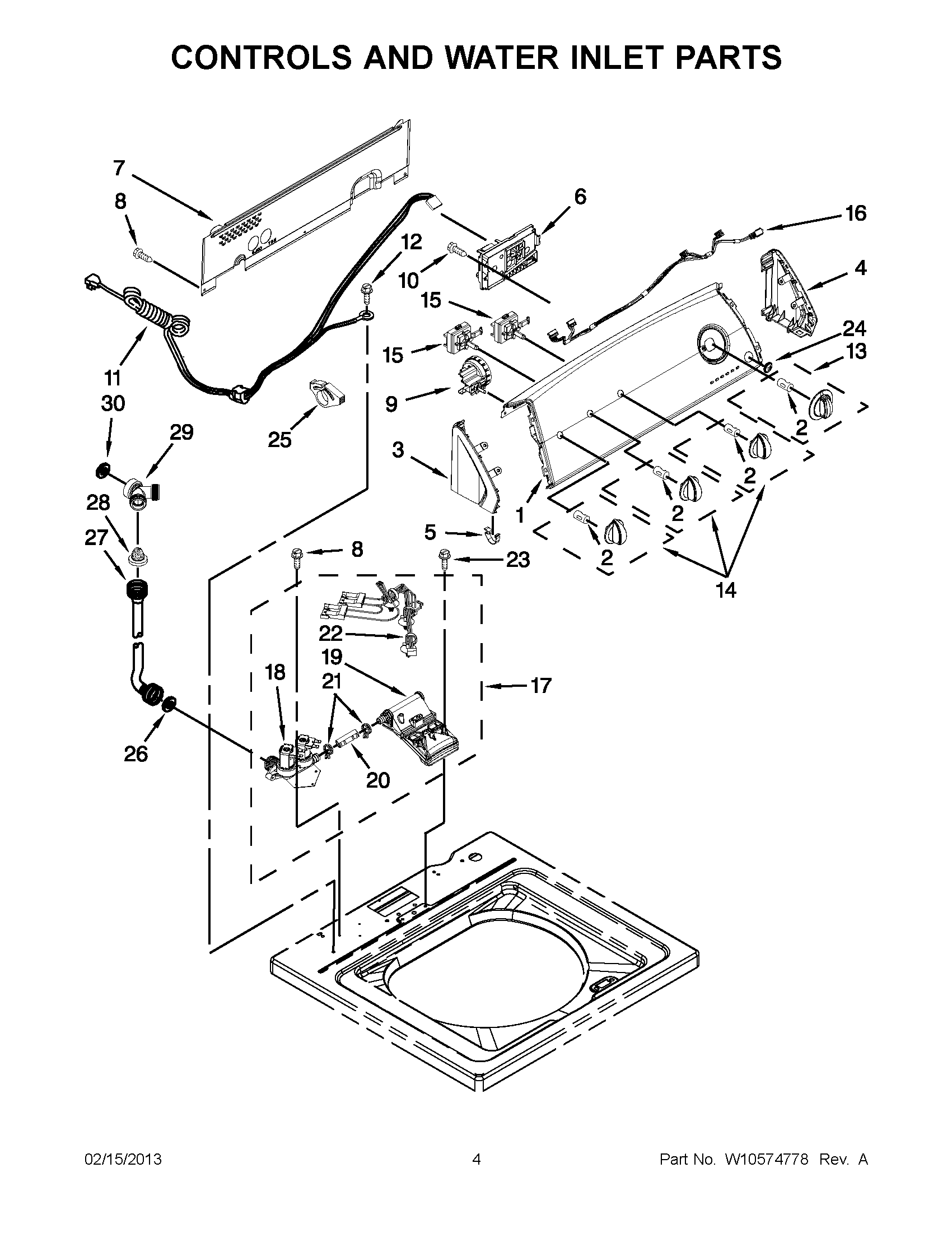

4GATW4900YW1 02 – CONTROLS AND WATER INLET PARTS

4GATW4900YW1 02 – CONTROLS AND WATER INLET PARTS

Written by

in

4GATW4900YW1 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1CONSOLE
2CLIP, SPRING
3MAY W10251358
4MAY W10251355
5MAY 8312709
6MAY W10480685
7MAY W10420985
8MAY 1157158
9MAY W10268912
10SCREW,8-18 X 3/8
1110A CORD LOCK
11MAY W10422755
1110A CORD ADAPTER (EUROPEAN)
1110A CORD ADAPTER (BRITISH)
1110A CORD ADAPTER (TYPE B)
12Screw, 10-32 x 5/8
13MAY W10327522
14MAY W10327523
15SWITCH, ROTARY ENCODER
16MAY W10291174
17MAY W10337066
18MAY W10336726
19MAY W10441423
20MAY W10238347
21MAY W10117298
22MAY W10344775
23Screw
24MAY W10251309
25CLAMP, HOSE
26ACCESSORY PARTS, WASHER, HOSE
27MAY W10194211
27MAY W10194210
28MAY 353362
29MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
30MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
