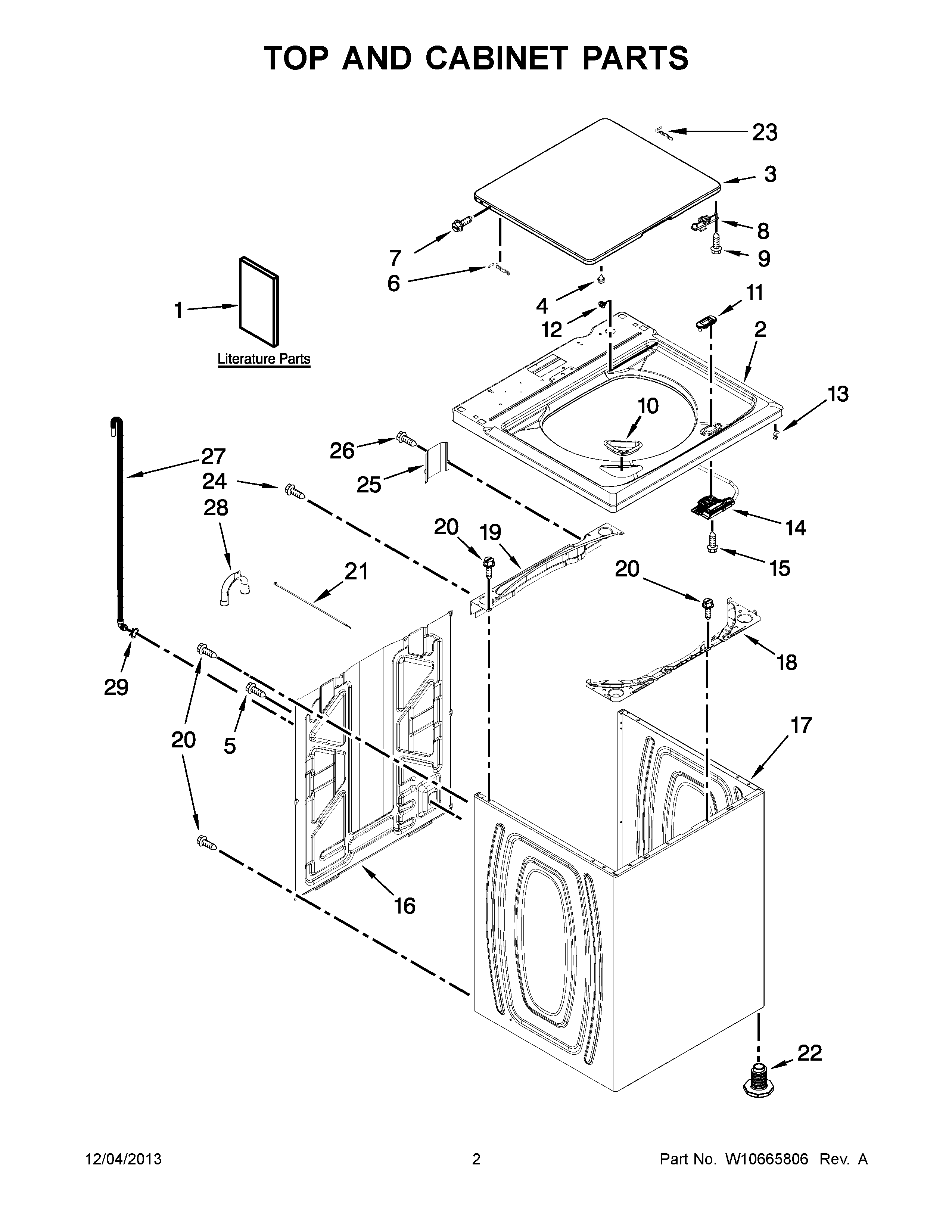

4GATW4900YW2 02 – TOP AND CABINET PARTS

4GATW4900YW2 02 – TOP AND CABINET PARTS

Written by

in

4GATW4900YW2 02 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10589598
1MAY W10620479
1MAY W10589601
2TOP
3ASSEMBLY, LID (WHITE)
4MAY 9724509
5SCREW
6HINGE, LID
7Screw And Washer
8MAY W10240513
9SCREW
10MAY W10192089
11MAY W10392041
12Hinge, Bearing (2)
13Clip, Wire (4)
14LOCK, LID
15Screw
16PANEL, REAR
17MAY W10478060
18MAY W10215098
19BRACE, CABINET TOP – REAR
20MAY 1157158
21TIE, CABLE
22MAY W10397994
23HINGE, LID (RIGHT HAND)
24SCREW
25MAY W10215139
26Screw, 10-32 x 5/8
27HOSE, OUTER DRAIN ASSEMBLY
28MAY W10280024
29MAY 356138
