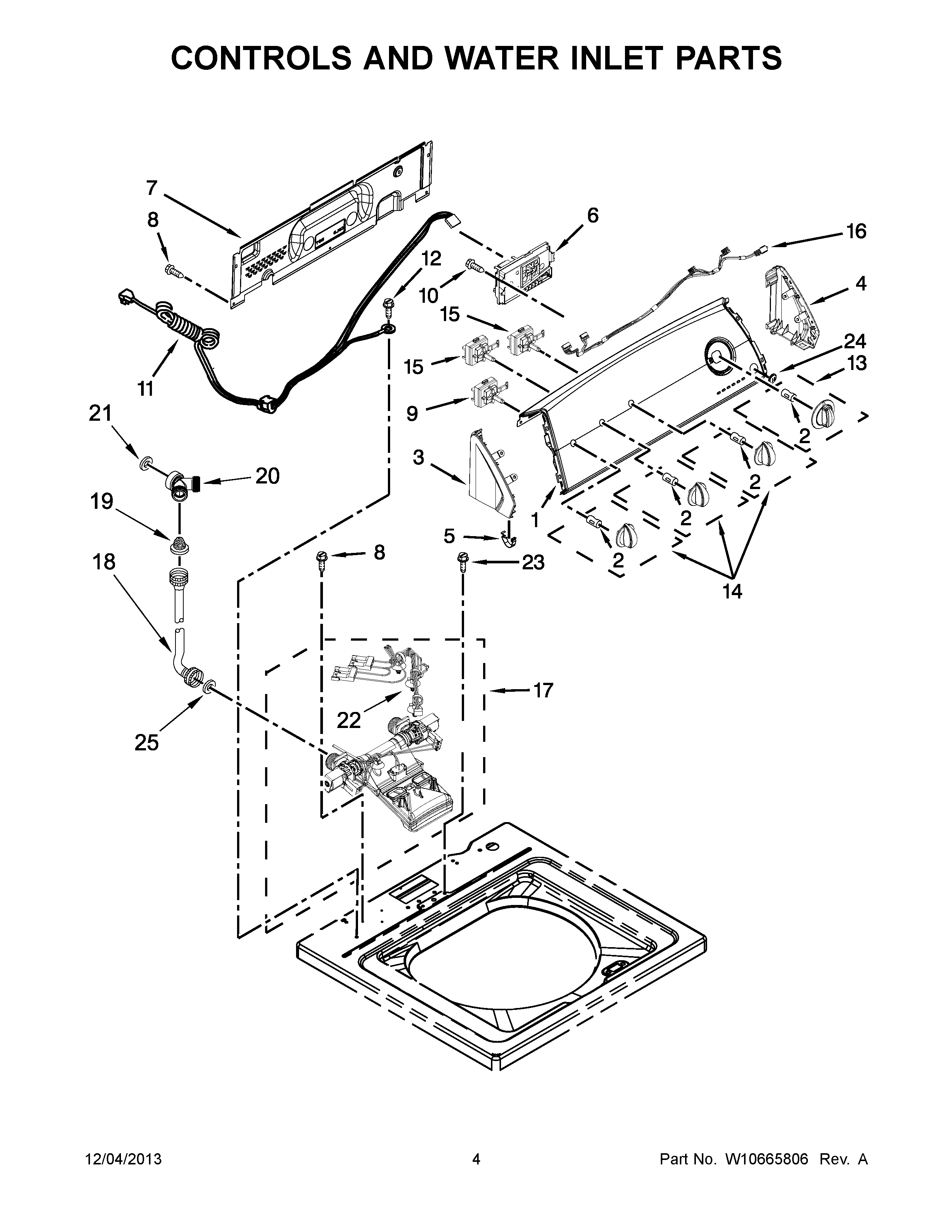

4GATW4900YW2 03 – CONTROLS AND WATER INLET PARTS

4GATW4900YW2 03 – CONTROLS AND WATER INLET PARTS

Written by

in

4GATW4900YW2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NI10A CORD ADAPTER (TYPE B)
NI10A CORD ADAPTER (EUROPEAN)
NI10A CORD ADAPTER (BRITISH)
NI10A CORD LOCK
NILINER (NOT A SERVICEABLE PART)
1CONSOLE
2CLIP, SPRING
3MAY W10251358
4MAY W10251355
5MAY 8312709
6MAY W10591682
7MAY W10461159
8MAY 1157158
9MAY W10285518
10SCREW,8-18 X 3/8
11MAY W10422755
12Screw, 10-32 x 5/8
13MAY W10327522
14MAY W10327523
15SWITCH, ROTARY ENCODER
16MAY W10291183
17MAY W10486030
18MAY W10194210
18MAY W10194211
19MAY 353362
20MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
21MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
22MAY W10423127
23Screw
24MAY W10251309
25ACCESSORY PARTS, WASHER, HOSE
