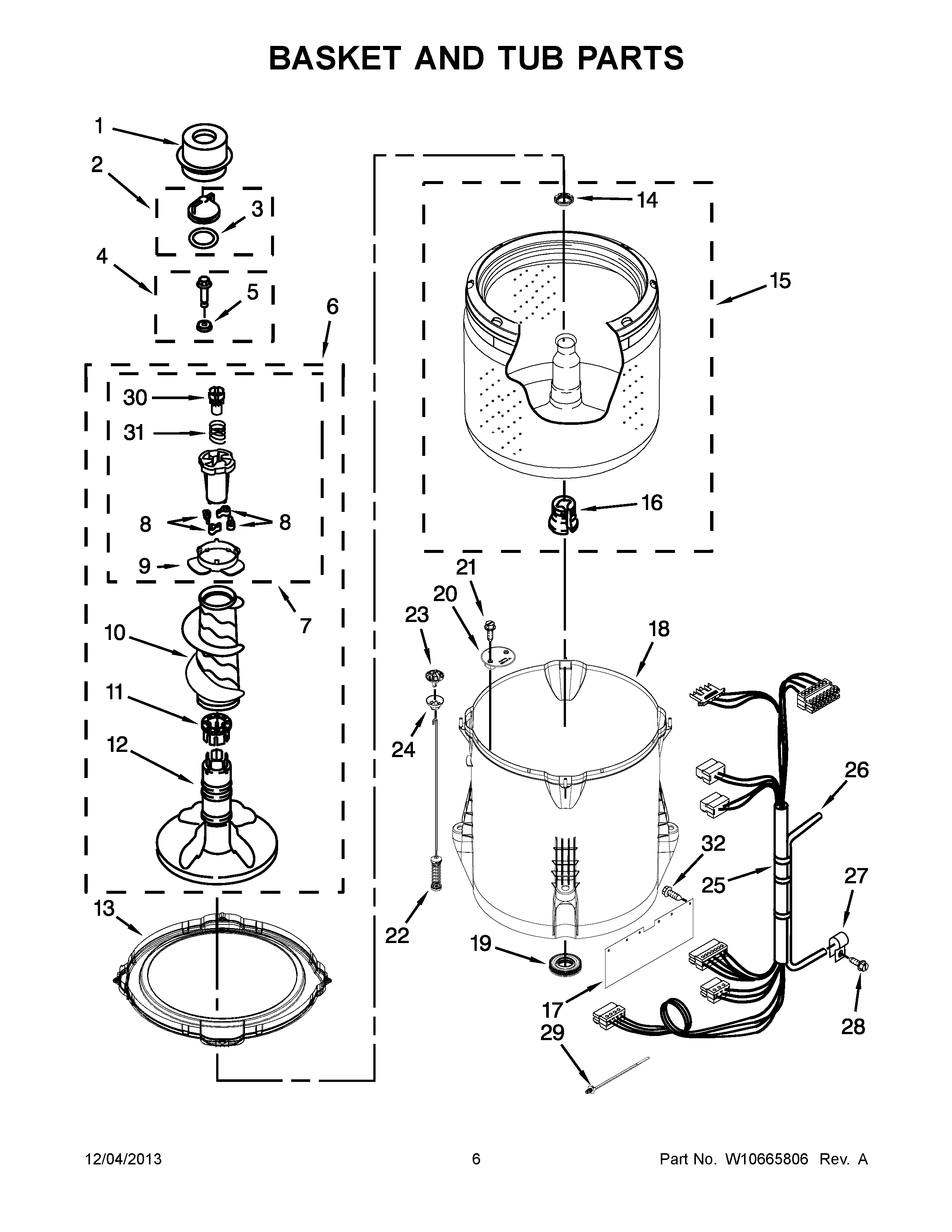

4GATW4900YW2 04 – BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8580006
2	MAY 3354733
3	MAY W10072840
4	SCREW & WASHER
5	MAY 3949550
6	AGITATOR (COMPLETE)
7	MAY 8537434
8	Dog, Agitator (4)
9	Bearing-Driven Cam
10	MOVER, CLOTHES
11	MAY 8055228
12	AGITATOR, COMPLETE ASSEMBLY
13	MAY W10215107
14	MAY 21366
15	MAY W10358261
16	Block, Drive
17	MAY W10339098
18	TUB (INCLUDES TUB SEAL)
19	MAY W10006371
20	MAY W10215093
21	Screw
22	DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES BALL & BUSHING)
23	BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSION BUSHINGS)
24	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
25	MAY W10504119
26	MAY W10431037
27	CLAMP, CABLE
28	SCREW
29	MAY W10298887
30	MAY 8533540
31	MAY 8055140
32	MAY W10429200
