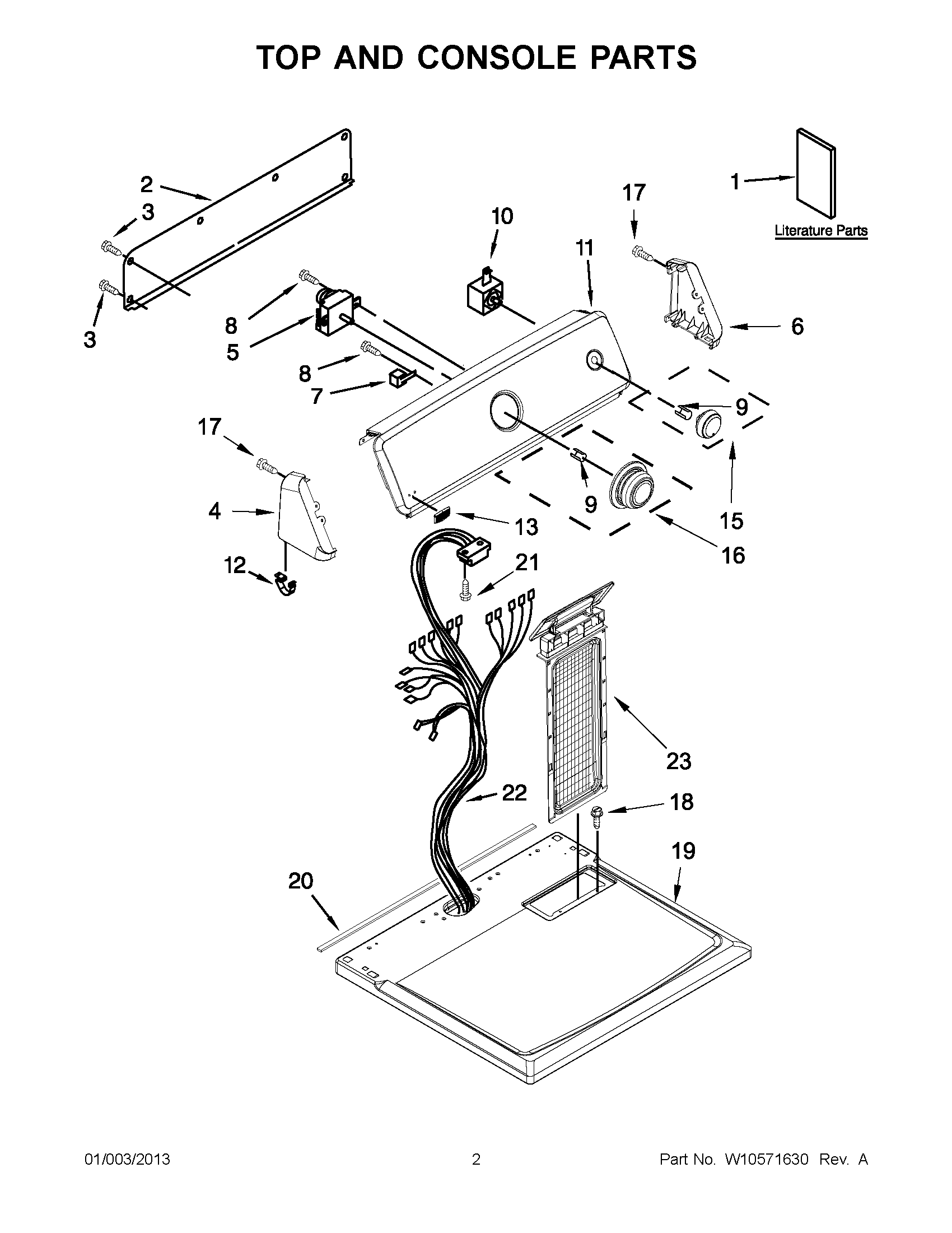

4GMEDC100YQ1 01 – TOP AND CONSOLE PARTS

4GMEDC100YQ1 01 – TOP AND CONSOLE PARTS

Written by

in

4GMEDC100YQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10454277
1	MAY W10396178
1	MAY W10454274
2	MAY W10103406
3	Screw
4	Endcap (L.H.)
5	MAY 8299781
6	Endcap (R.H.)
7	MAY 3952439
8	MAY 8533971
9	Spring, Clip Knob
10	MAY 3404233
11	MAY W10449055
12	MAY 8312709
13	MAY W10323734
14	CLIP, SPRING
15	ASSEMBLY, CONTROL KNOB (GREY)
16	ASSEMBLY, KNOB & DIAL (GREY)
17	MAY 3348629
18	SCREW
19	Top
20	MAY W10316616
21	SCREW
22	MAY W10450283
23	Screen, Lint
