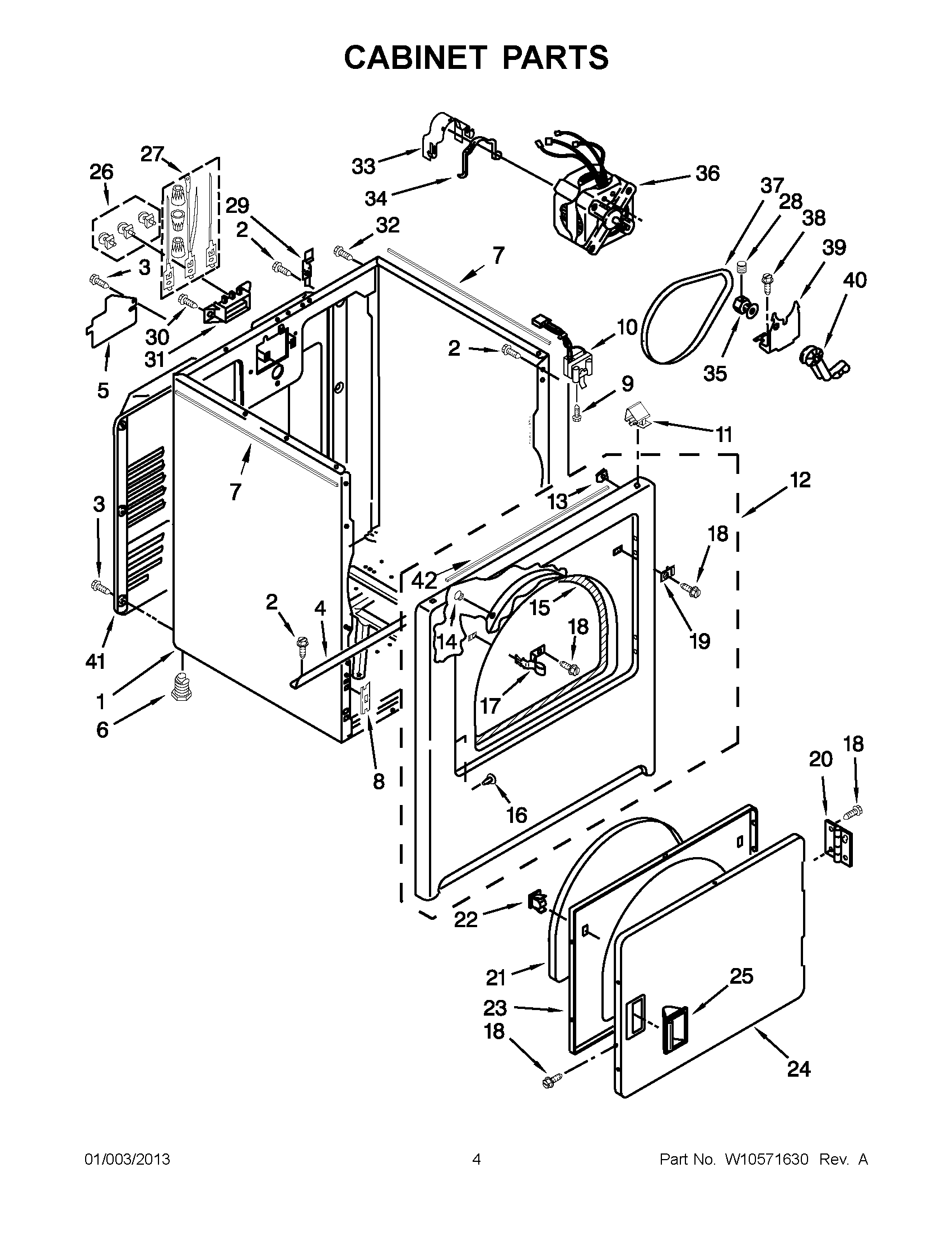

4GMEDC100YQ1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	CABINET (WHITE)
2	SCREW
3	SCREW
4	MAY W10236073
5	MAY 3396795
6	MAY 3392100
7	SEAL, FOAM
8	MAY 3394083
9	SCREW
10	MAY 3406109
11	MAY 8066092
12	Panel Front Assembly
13	Clip, Ground
14	Clip, Felt Pad
15	MAY 3406129
16	PLUG, HINGE HOLES
17	Strike, Door
18	MAY 342055
19	PLUG-STRIKE
20	ASSEMBLY, HINGE AND PIN
21	MAY 3405246
22	DOOR CATCH ASSEMBLY
23	Door, Rear
24	DOOR FRONT
25	Handle, Door
26	MAY 279393
27	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
28	Screw, Set
29	Hinge, Top
30	SCREW, 10-16 X 1/2
31	MAY 3397659
32	MAY 8533974
33	Clamp, Motor (With Shield)
34	CLAMP, MOTOR MOUNT
35	PULLEY, MOROR 60 HZ.
36	ASSEMBLY, MOTOR (50 HZ)
37	BELT, DRIVE
38	BOLT
39	MAY 348780
40	IDLER ASSEMBLY
41	MAY 3396805
42	SEAL, SPILL GUARD
