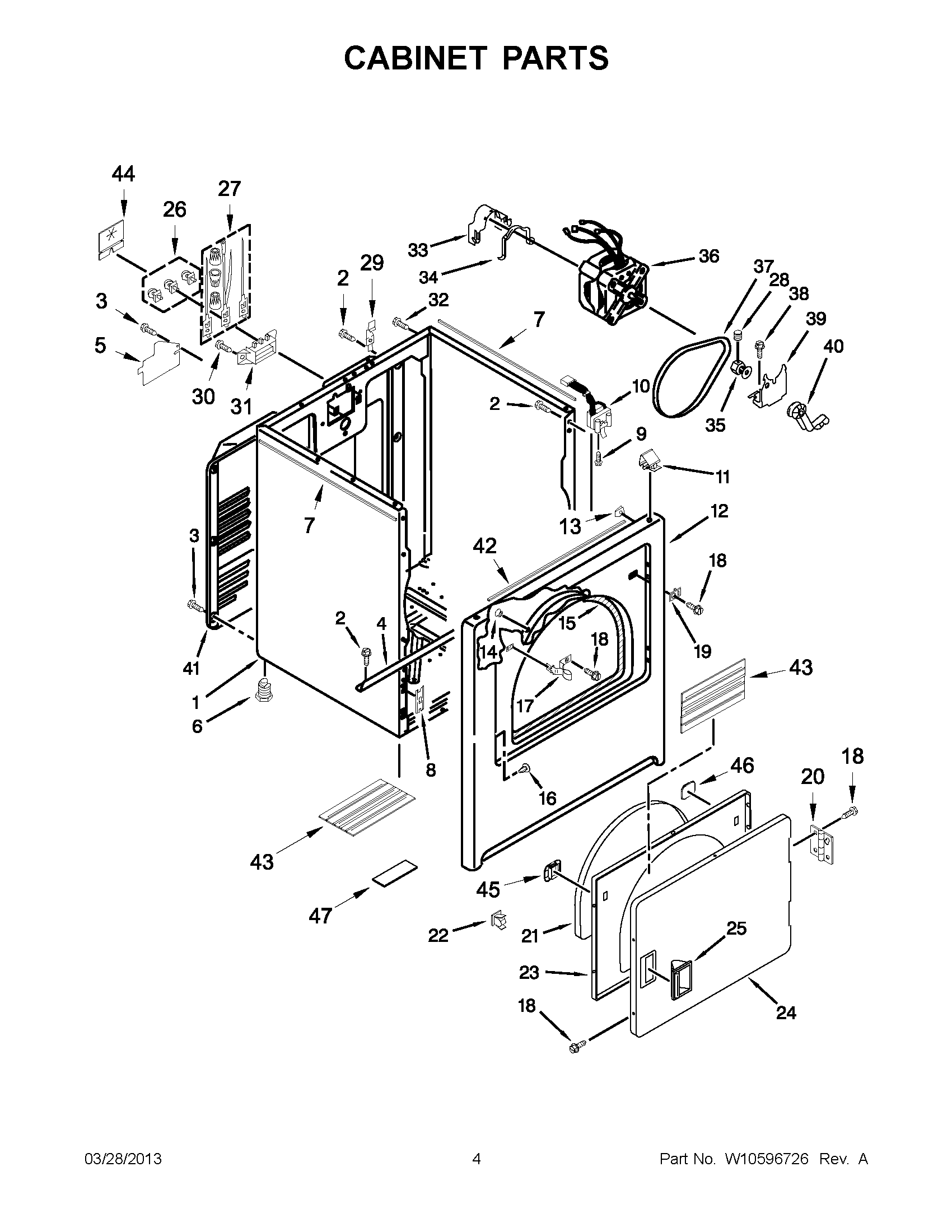

4GMEDC100YQ2 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	CABINET (WHITE)
2	SCREW
3	SCREW
4	MAY W10236073
5	MAY W10571619
6	MAY 3392100
7	SEAL, FOAM
8	MAY 3394083
9	SCREW
10	MAY 3406109
11	MAY 8066092
12	Panel Front Assembly
13	Clip, Ground
14	Clip, Felt Pad
15	SEAL & BEARING ASSEMBLY
16	PLUG, HINGE HOLES
17	Strike, Door
18	MAY 342055
19	PLUG, STRIKE
20	ASSEMBLY, HINGE AND PIN
21	MAY W10389572
22	MAY W10529190
23	DOOR, INNER
24	DOOR FRONT
25	Handle, Door
26	MAY 279393
27	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
28	Screw, Set
29	Hinge, Top
30	SCREW, 10-16 X 1/2
31	MAY 3397659
32	MAY 8533974
33	Clamp, Motor (With Shield)
34	CLAMP, MOTOR MOUNT
35	PULLEY, MOROR 60 HZ.
36	ASSEMBLY, MOTOR (50 HZ)
37	BELT, DRIVE
38	BOLT
39	MAY 348780
40	IDLER ASSEMBLY
41	MAY W10571724
42	SEAL, SPILL GUARD
43	MAY W10532676
44	PAD, POWER CORRD
45	BEZEL, DOOR CATCH
46	COVER, DOOR CATCH
47	MAY W10567977
