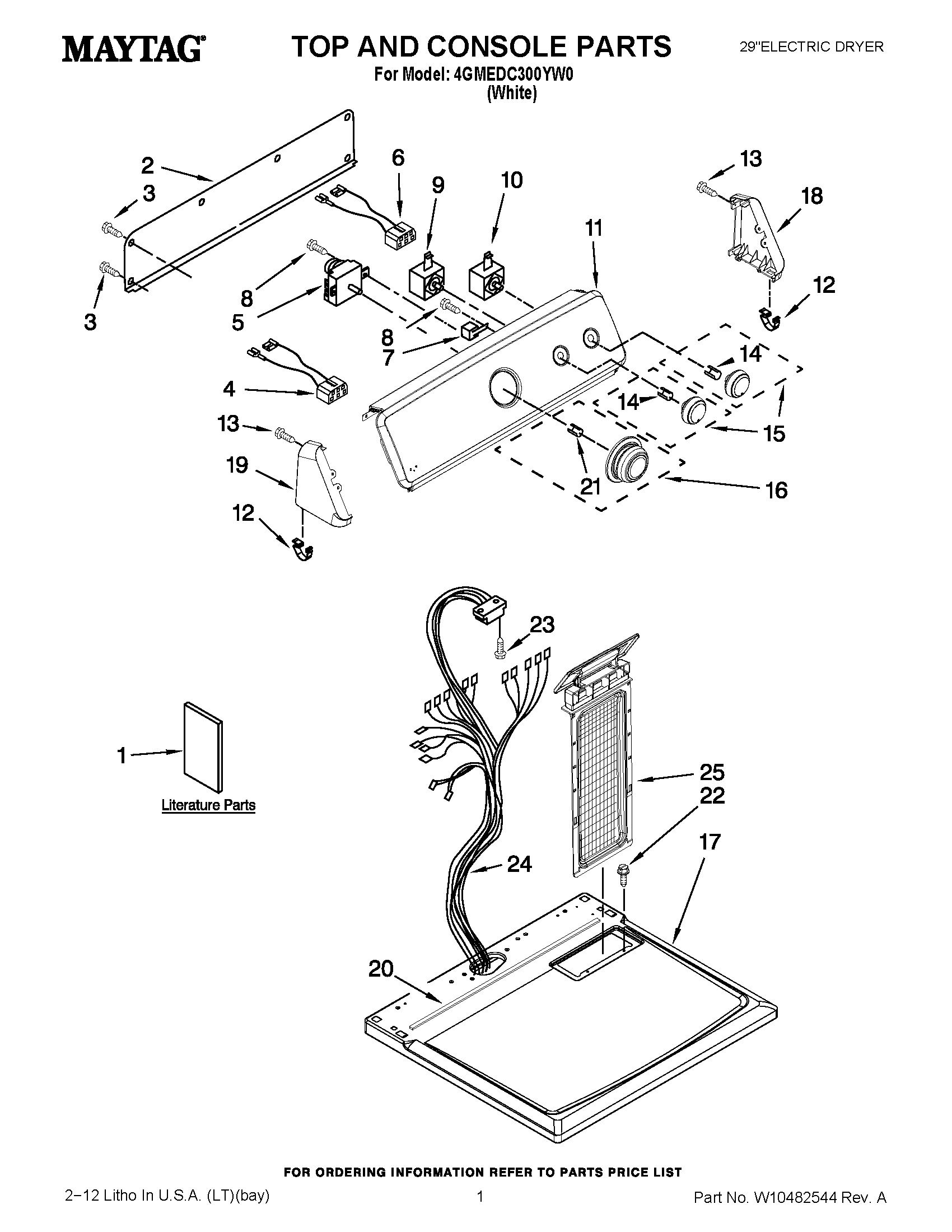

4GMEDC300YW0 01 – TOP AND CONSOLE PARTS

4GMEDC300YW0 01 – TOP AND CONSOLE PARTS

Written by

in

4GMEDC300YW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10454277
1MAY W10454274
1MAY 8578889
2MAY W10103406
3Screw
4WIRE, JUMPER (BUZZER)
5MAY 3979617
6MAY W10110861
7MAY 3952439
8MAY 8533971
9Switch, Temperature
10MAY W10112668
11MAY W10365104
12MAY 8312709
13MAY 3348629
14CLIP, SPRING
15ASSEMBLY, CONTROL KNOB (GREY)
16ASSEMBLY, KNOB & DIAL (GREY)
17MAY W10225059
18Endcap (R.H.)
19Endcap (L.H.)
20MAY W10316616
21Spring, Clip Knob
22SCREW
23SCREW
24MAY W10386313
25Screen, Lint
