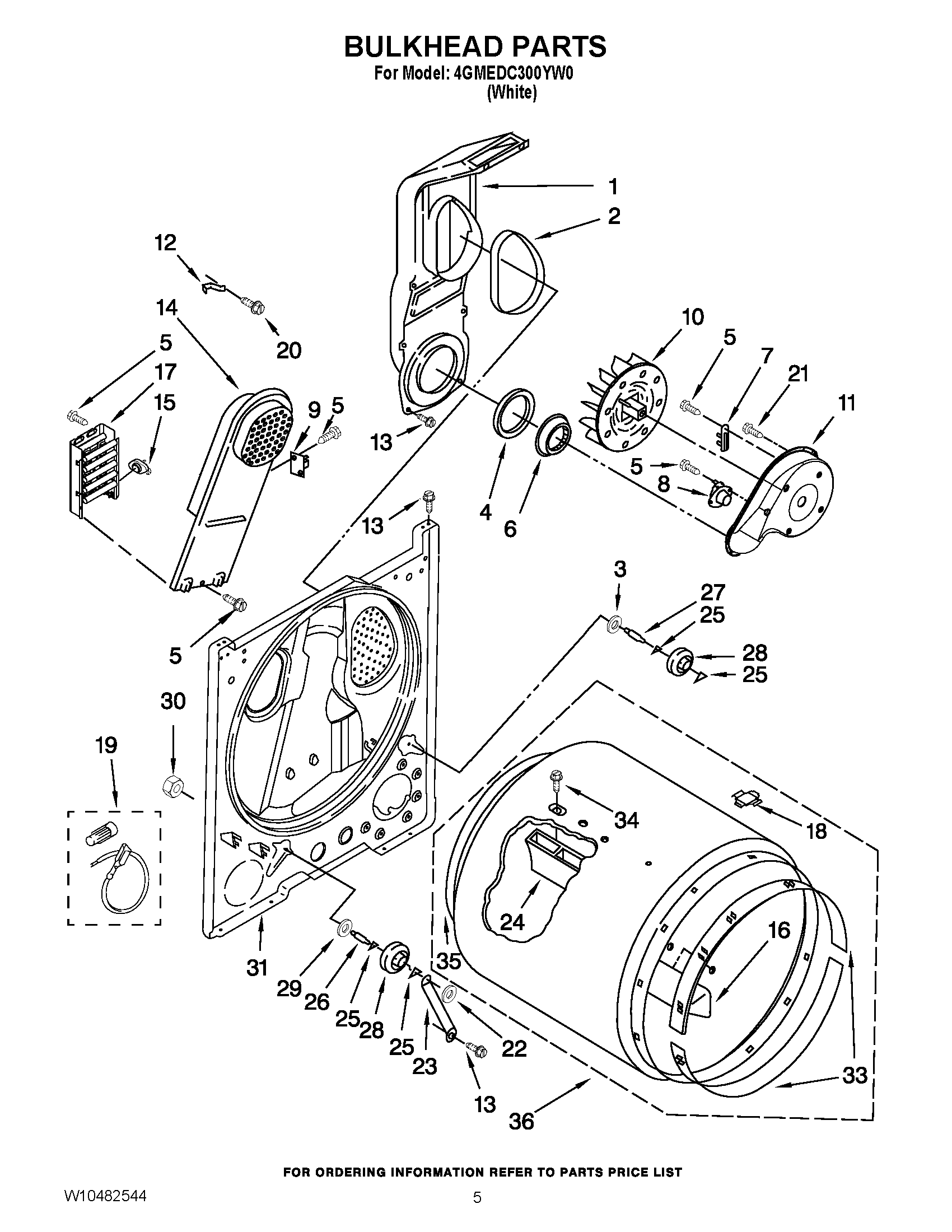

4GMEDC300YW0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	MAY 339956
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 696302
7	Fuse, Thermal (91 C)
8	THERMOSTAT, INTERNAL BIAS
9	MAY 3977393
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	MAY 8541818
15	MAY 3977767
16	BAFFLE, DRUM (SHORT)
17	MAY 3403585
18	Plug, Drum Hole
19	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20	Screw
21	SCREW
22	NUT, PUSH ON
23	MAY 3976434
24	BAFFLE, DRUM (LONG)
25	WASHER, TRI RING
26	MAY W10359270
27	MAY W10359269
28	ROLLER, SUPPORT
29	WASHER
30	MAY W10298789
31	MAY 3403410
33	Bearing, Ring
34	MAY W10219342
35	MAY W10352407
36	MAY 695587
