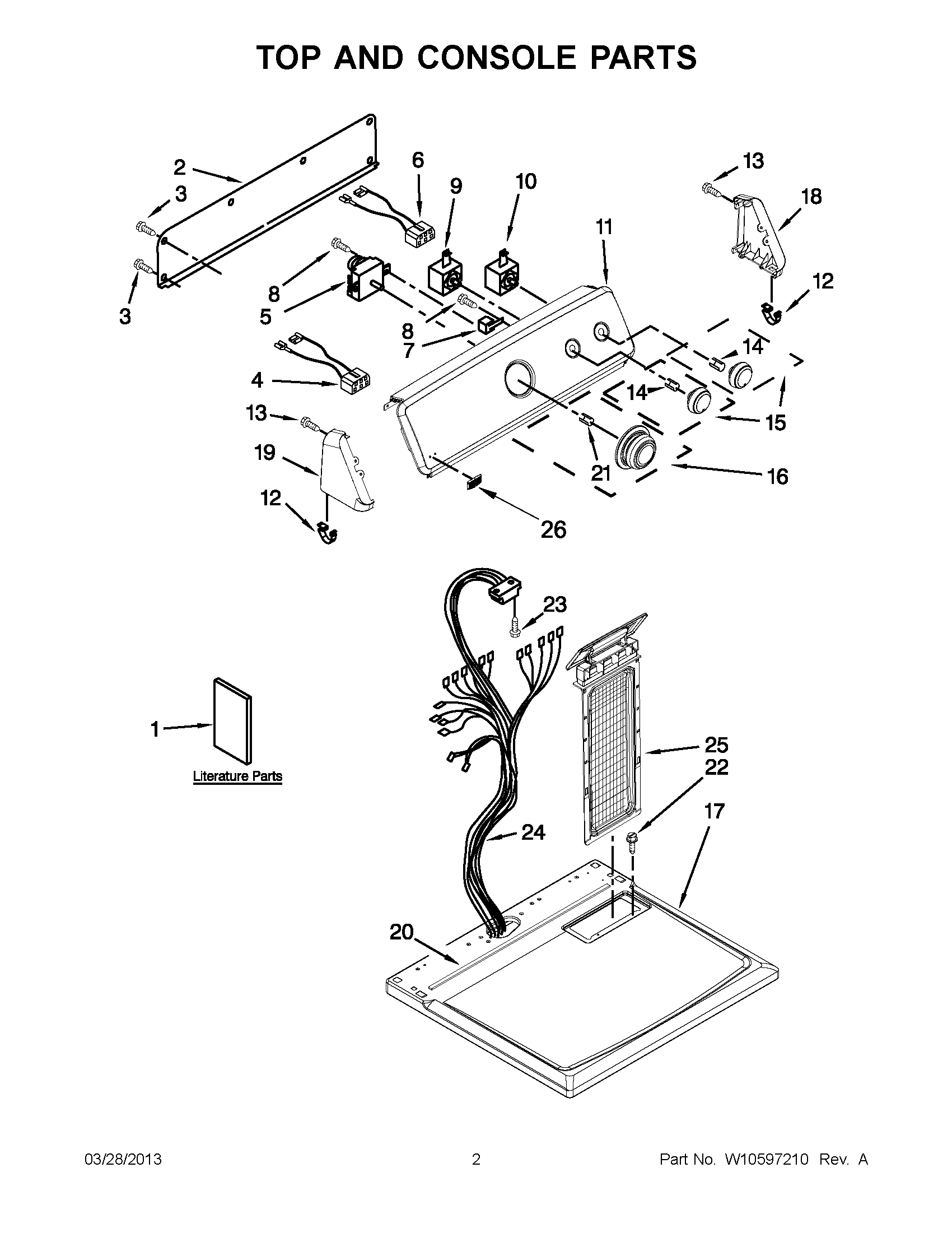

4GMEDC300YW2 01 – TOP AND CONSOLE PARTS

4GMEDC300YW2 01 – TOP AND CONSOLE PARTS

Written by

in

4GMEDC300YW2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10514189
1	MAY W10454277
1	MAY W10396179
2	MAY W10103406
3	Screw
4	WIRE, JUMPER (BUZZER)
5	MAY 3979617
6	MAY W10110861
7	MAY 3952439
8	MAY 8533971
9	Switch, Temperature
10	MAY W10112668
11	MAY W10365104
12	MAY 8312709
13	MAY 3348629
14	CLIP, SPRING
15	ASSEMBLY, CONTROL KNOB (GREY)
16	ASSEMBLY, KNOB & DIAL (GREY)
17	MAY W10225059
18	Endcap (R.H.)
19	Endcap (L.H.)
20	MAY W10316616
21	Spring, Clip Knob
22	SCREW
23	SCREW
24	MAY W10386313
25	Screen, Lint
26	MAY W10323734
