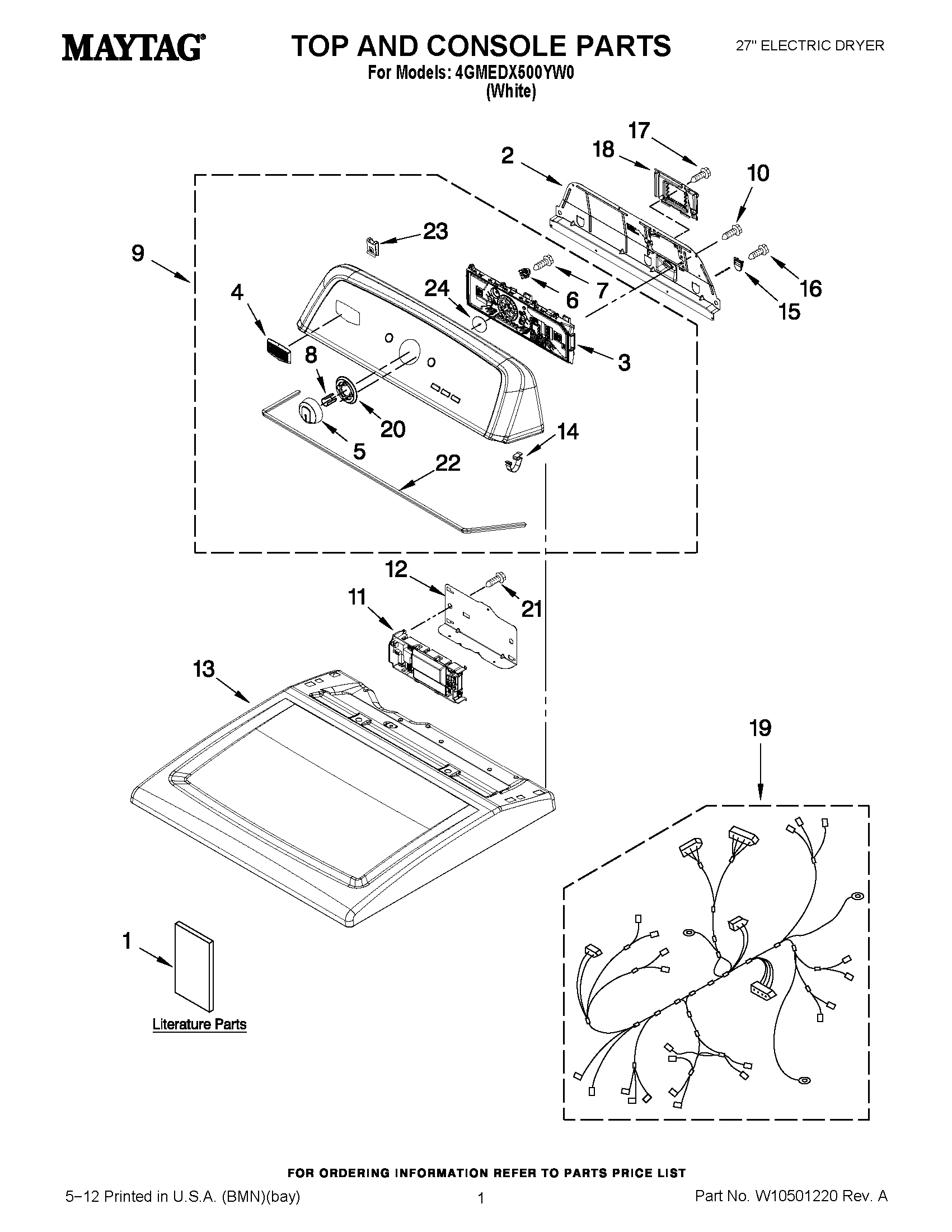

4GMEDX500YW0 01 – TOP AND CONSOLE PARTS

4GMEDX500YW0 01 – TOP AND CONSOLE PARTS

Written by

in

4GMEDX500YW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10366230
1	MAY W10417013
1	MAY W10462984
1	INSTALLATION, INSTRUCTION
2	MAY W10096969
3	ASSEMBLY, USER INTERFACE
4	MAY W10323735
5	MAY W10251381
6	TENSIONER, FASCIA
7	MAY W10219342
8	CLIP, SPRING
9	MAY W10464793
11	MAY W10465534
12	MAY W10271580
13	MAY W10268730
14	MAY 8312709
15	PLUG, UPPER REAR PANEL
16	SCREW
17	Screw, 8-18 x 3/8
18	MAY W10286180
19	MAY W10339708
20	MAY W10305134
21	MAY 8533971
22	MAY W10280079
23	NUT, "U"
24	SEAL, USER INTERFACE
