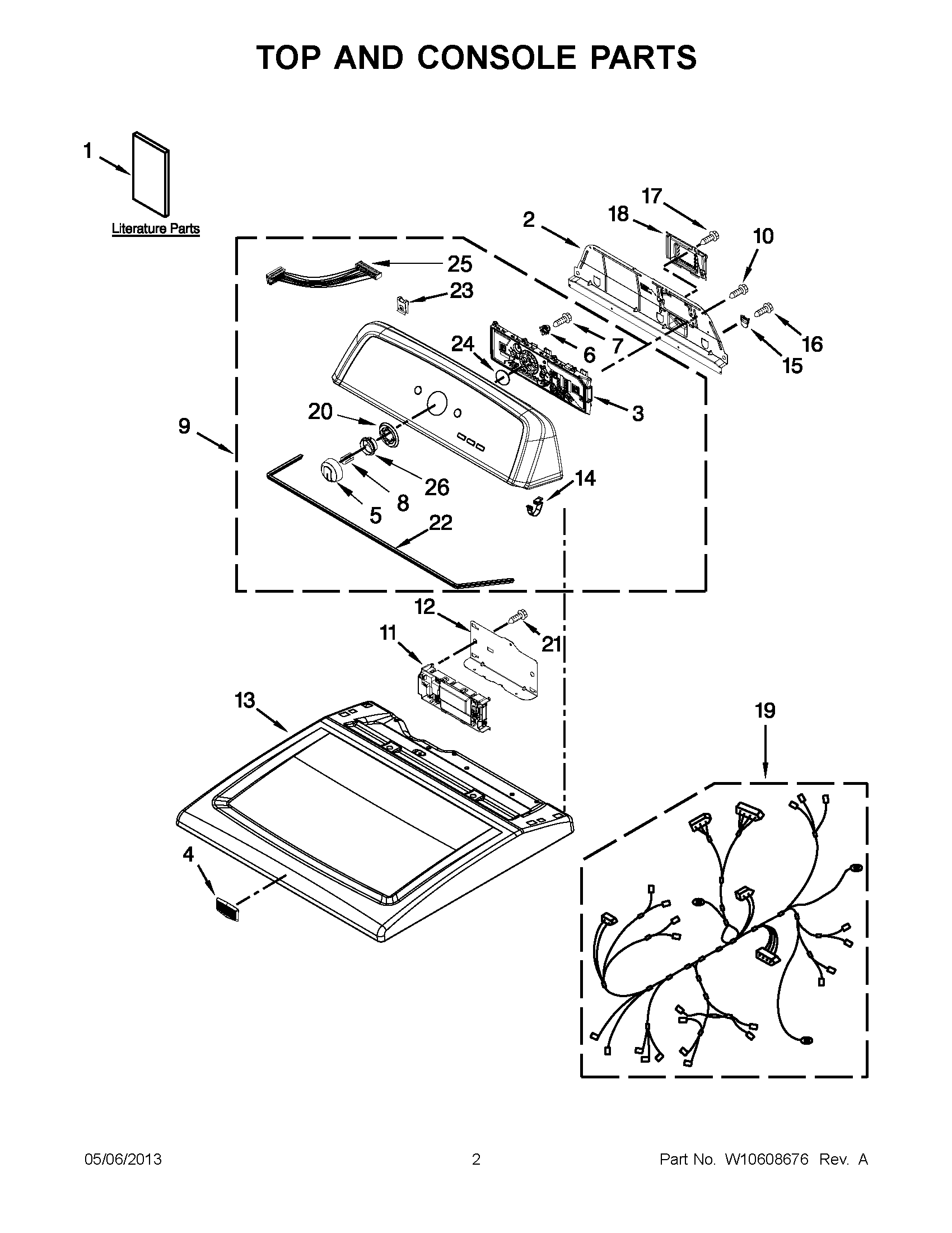

4GMEDX500YW2 01 – TOP AND CONSOLE PARTS

4GMEDX500YW2 01 – TOP AND CONSOLE PARTS

Written by

in

4GMEDX500YW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10589602
1MAY W10589600
1MAY W10511617
1TECH SHEET
2MAY W10550615
3ASSEMBLY, USER INTERFACE
4MAY W10492808
5MAY W10251381
6TENSIONER, FASCIA
7MAY W10219342
8CLIP, SPRING
9MAY W10464793
11MAY W10465534
12MAY W10271580
13MAY W10268730
14MAY 8312709
15PLUG, UPPER REAR PANEL
16SCREW
17Screw, 8-18 x 3/8
18MAY W10286180
19HARNESS, MAIN
20MAY W10305134
21MAY 8533971
22MAY W10280079
23NUT, "U"
24SEAL, USER INTERFACE
25CABLE, USER INTERFACE
26MAY W10326923
