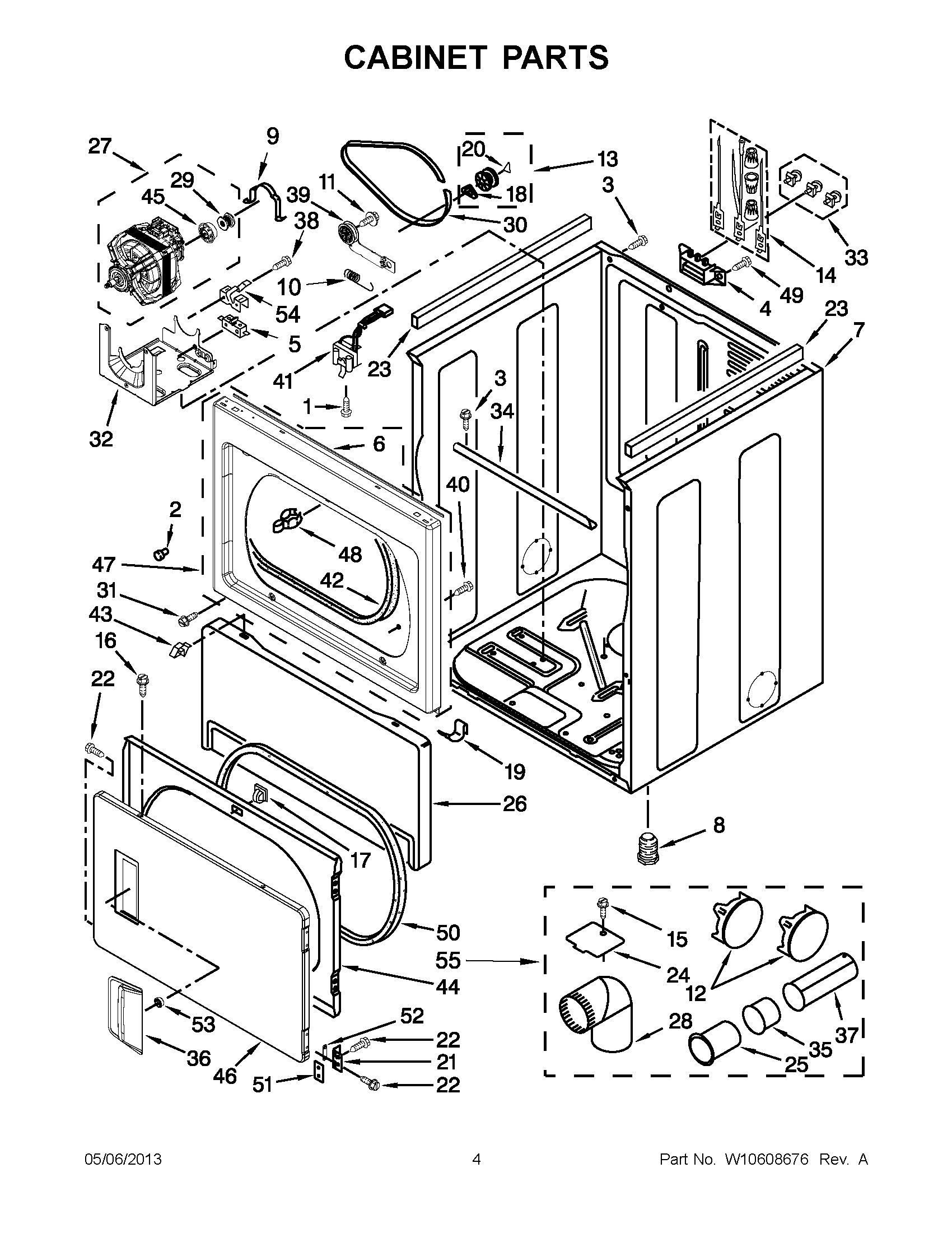

4GMEDX500YW2 02 – CABINET PARTSadmin2025-04-26T09:18:51+00:004GMEDX500YW2 02 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279810 |
| 1 | SCREW |
| 2 | BUMPER |
| 3 | SCREW |
| 4 | MAY 3397659 |
| 5 | MAY 8318457 |
| 6 | SEAL, SPILL GUARD |
| 7 | MAY W10547697 |
| 8 | MAY 3392100 |
| 9 | MAY 660658 |
| 10 | MAY W10446781 |
| 11 | SCREW |
| 12 | PLUG, MULTIVENT (MIDNIGHT GREY) |
| 13 | MAY W10468057 |
| 14 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 15 | MAY 488729 |
| 16 | Screw, 8-18 x 1/2 |
| 17 | MAY 3392538 |
| 18 | WASHER, TRI RING |
| 19 | CLIP |
| 20 | MAY W10121334 |
| 21 | Hinge & Pin Assembly (2) |
| 22 | MAY 342055 |
| 23 | SEAL, FOAM |
| 24 | MAY W10354249 |
| 25 | PIPE, EXHAUST (MEDIUM) |
| 26 | Toe Panel (Includes Item. 2) (White) |
| 27 | MAY W10489550 |
| 28 | MAY 49026 |
| 29 | MAY 3389729 |
| 30 | MAY W10112954 |
| 31 | Screw |
| 32 | MAY 3387118 |
| 33 | MAY 279393 |
| 34 | BRACKET, CABINET |
| 35 | PIPE, EXHAUST (SHORT) |
| 36 | MAY W10284182 |
| 37 | PIPE, EXHAUST (LONG) |
| 38 | SCREW |
| 39 | ASSEMBLY, IDLER |
| 40 | SCREW |
| 41 | Switch, Door |
| 42 | MAY 3387242 |
| 43 | RETAINER |
| 44 | MAY W10323061 |
| 45 | MAY 3393657 |
| 46 | MAY W10322551 |
| 47 | Upper Front Panel (White) |
| 48 | MAY 696144 |
| 49 | SCREW, 10-16 X 1/2 |
| 50 | MAY 3390735 |
| 51 | MAY 3390902 |
| 52 | PLUG, HINGE SCREW |
| 53 | MAY W10294344 |
| 54 | Lever, Snap Switch |
| 55 | DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY) |
