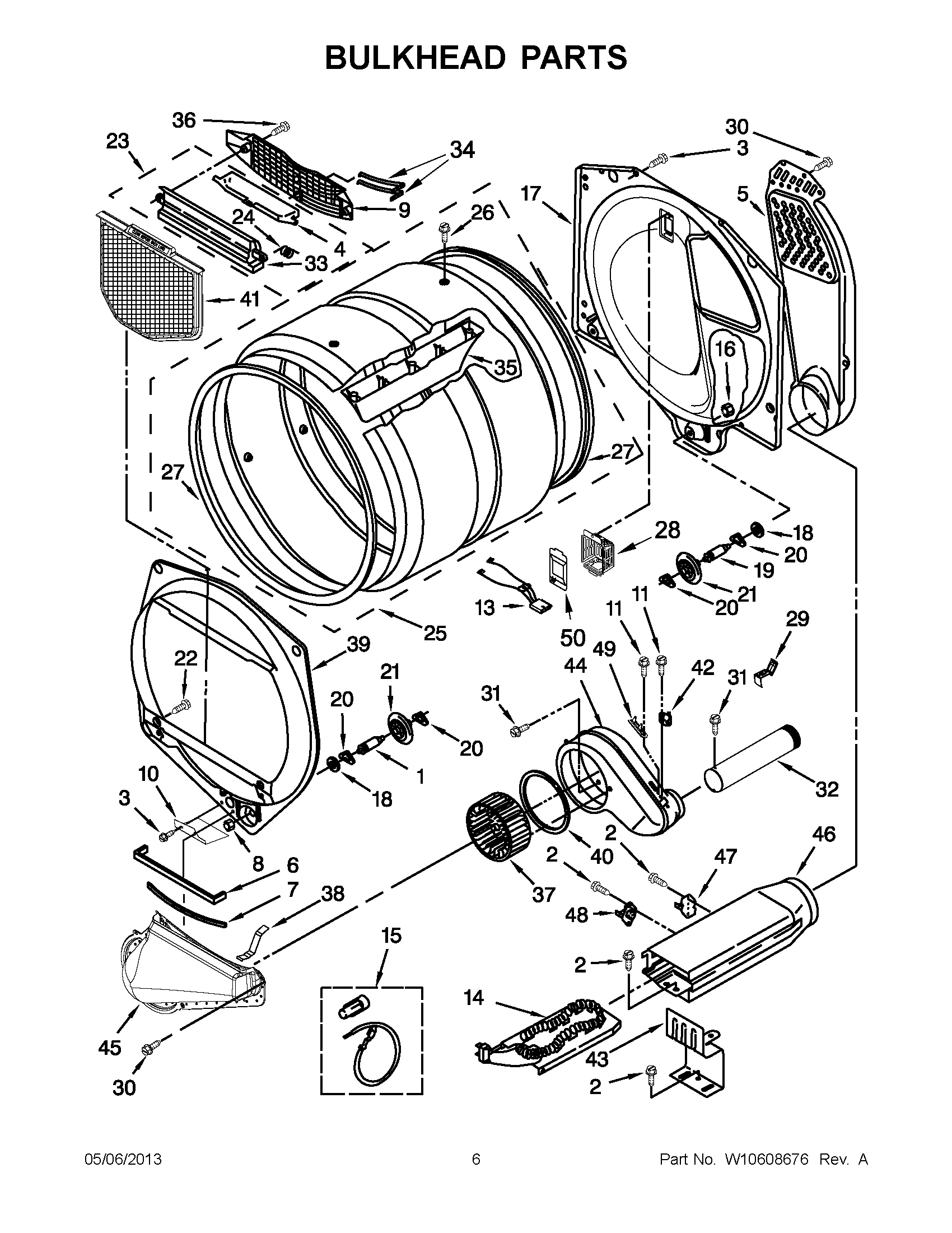

4GMEDX500YW2 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW,8-18 X 3/8
3	SCREW
4	MAY W10153413
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	MAY W10153412
10	MAY W10128629
12	MAY 359625
13	MAY W10298258
14	ELEMENT, HEATER
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	SCREW
23	Housing, Outlet
24	Spring, Lint Screen Door
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	MAY 8578825
29	CLIP, EXHAUST
30	MAY 8533971
31	Screw
32	PIPE, EXHAUST
33	MAY W10153414
34	SENSOR, ELECTRODE
35	BAFFLE, DRUM
36	SCREW
37	MAY W10349492
38	CLIP, SPRING
39	BULKHEAD, FRONT
40	SEAL, PLATE COVER
41	LINT SCREEN (WHITE)
42	THERMISTOR
43	MAY 8066099
44	MAY 8544362
45	Lint Duct Assembly
46	HEATER BOX,
47	MAY 8318314
48	MAY 3391914
49	Fuse, Thermal (91 C)
50	MAY 3402841
