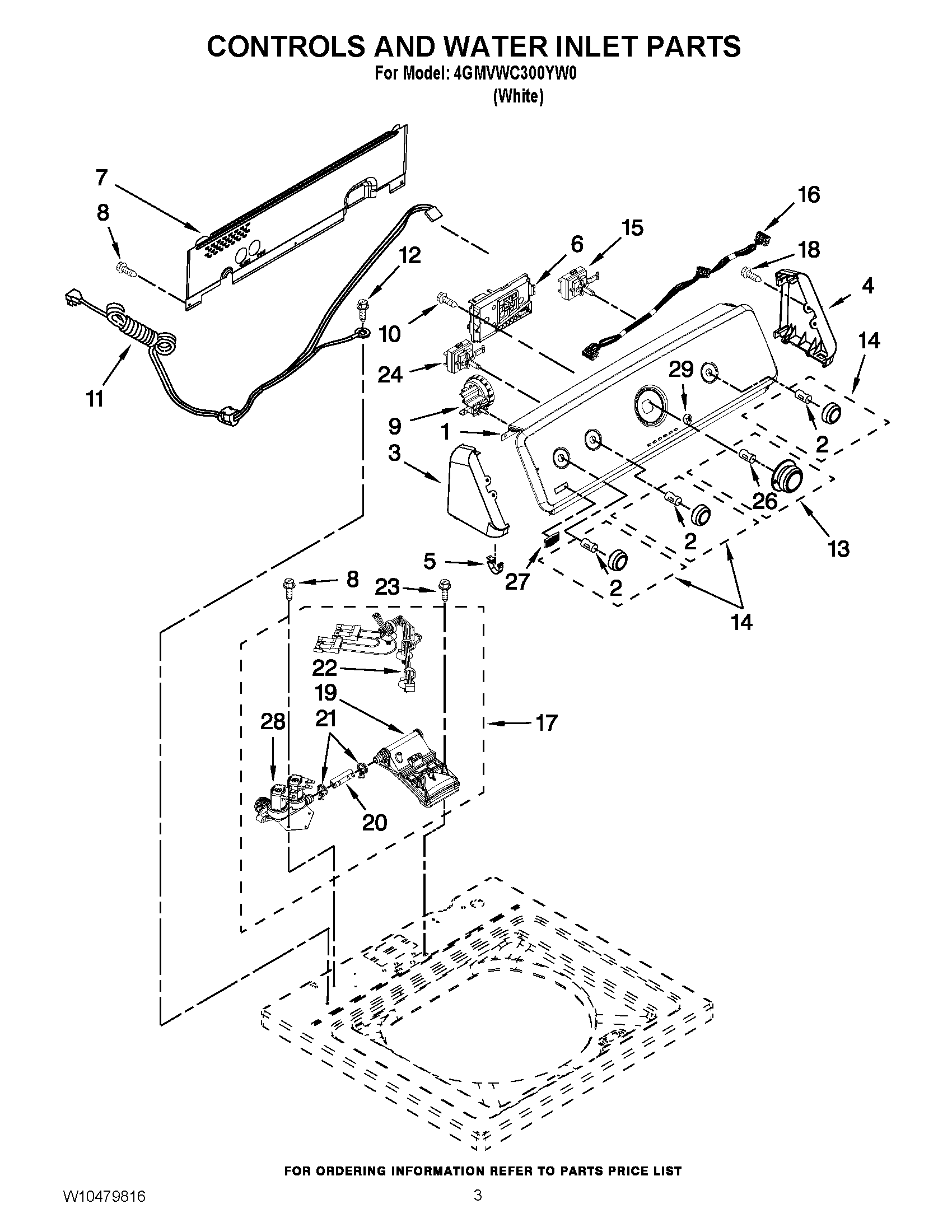

4GMVWC300YW0 02 – CONTROLS AND WATER INLET PARTS

4GMVWC300YW0 02 – CONTROLS AND WATER INLET PARTS

Written by

in

4GMVWC300YW0 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1MAY W10365085
2CLIP, SPRING
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6MAY W10453176
7MAY W10420985
8MAY 1157158
9MAY W10268911
10SCREW,8-18 X 3/8
11MAY W10422755
12Screw, 10-32 x 5/8
13ASSEMBLY, KNOB & DIAL (GREY)
14ASSEMBLY, CONTROL KNOB (GREY)
15MAY W10285511
16MAY W10291175
17MAY W10345523
18MAY 359625
19MAY W10441423
20MAY W10238347
21MAY W10117298
22MAY W10344775
23Screw
24SWITCH, ROTARY ENCODER
26Spring, Clip Knob
27MAY W10323734
28MAY W10339585
29MAY W10251309
