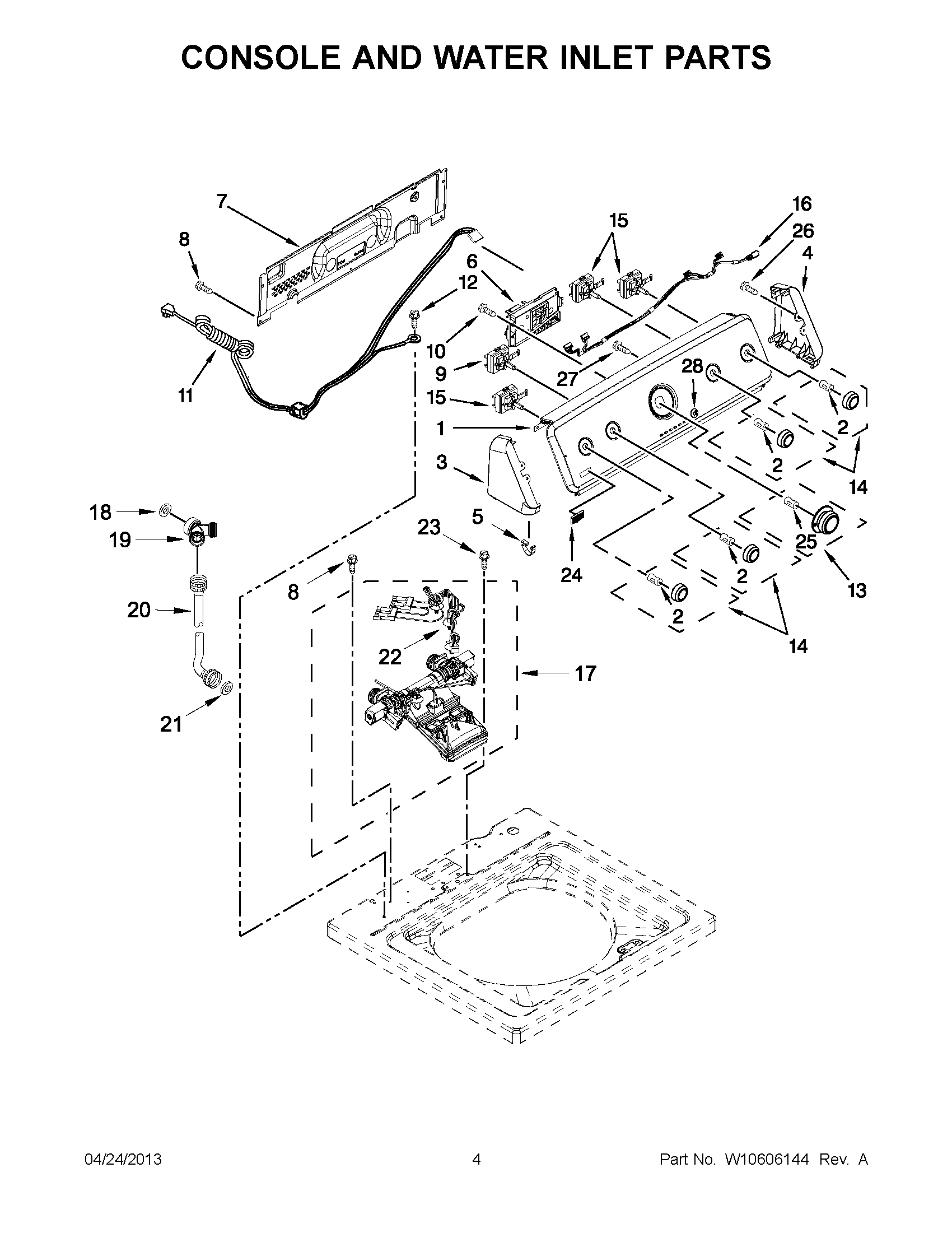

4GMVWC400YW2 02 – CONSOLE AND WATER INLET PARTS

Products

Position	Product
NI	10A CORD ADAPTER (TYPE B)
NI	LINER (NOT A SERVICEABLE PART)
NI	10A CORD ADAPTER (EUROPEAN)
NI	10A CORD ADAPTER (BRITISH)
NI	10A CORD LOCK
1	MAY W10365086
2	CLIP, SPRING
3	Endcap (L.H.)
4	Endcap (R.H.)
5	MAY 8312709
6	MAY W10544156
7	MAY W10461159
8	MAY 1157158
9	SWITCH, ROTARY ENCODER
10	SCREW,8-18 X 3/8
11	MAY W10422755
12	Screw, 10-32 x 5/8
13	ASSEMBLY, KNOB & DIAL (GREY)
14	ASSEMBLY, CONTROL KNOB (GREY)
15	MAY W10285511
16	MAY W10291177
17	MAY W10486030
18	ACCESSORY PARTS, WASHER, HOSE
19	MAY W10194211
19	MAY W10194210
20	MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
21	MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
22	MAY W10423127
23	Screw
24	MAY W10323734
25	Spring, Clip Knob
26	MAY 359625
27	SCREW
28	MAY W10251309
