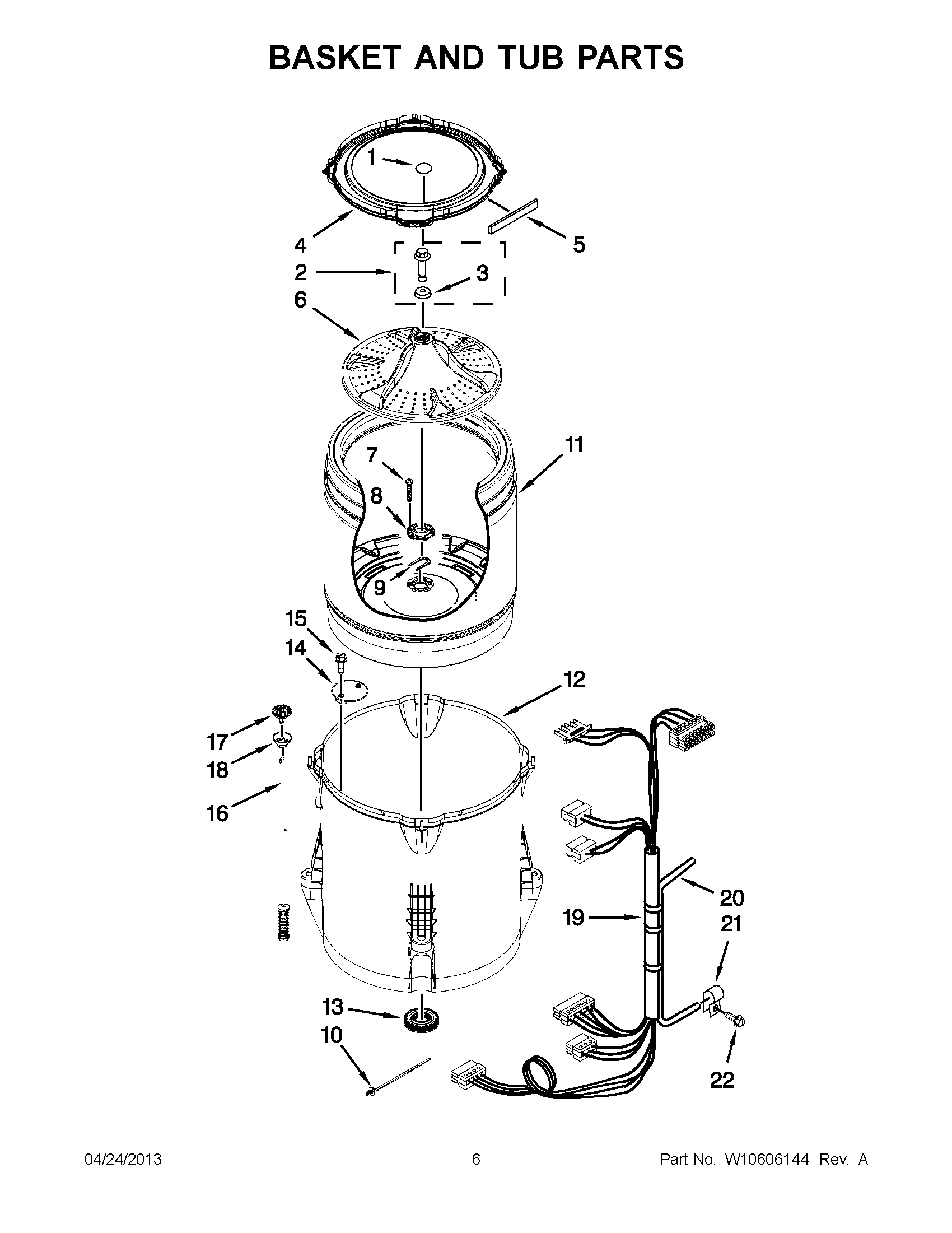

4GMVWC400YW2 03 – BASKET AND TUB PARTS

Products

Position	Product
1	MAY W10305251
2	SCREW & WASHER
3	MAY 3949550
4	RING, TUB (INCLUDES ITEM 4)
5	MAY W10205824
6	MAY W10215116
7	SCREW
8	HUB – DRIVEN, BASKET
9	RETAINER, DRIVE BLOCK
10	MAY W10298887
11	BASKET ASSEMBLY (INCLUDES ITEMS 7, 8 & 9)
12	TUB
13	MAY W10006371
14	MAY W10215093
15	Screw
16	MAY W10257085
17	BALL (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
18	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
19	MAY W10504124
20	MAY W10297437
21	CLAMP, CABLE
22	SCREW
