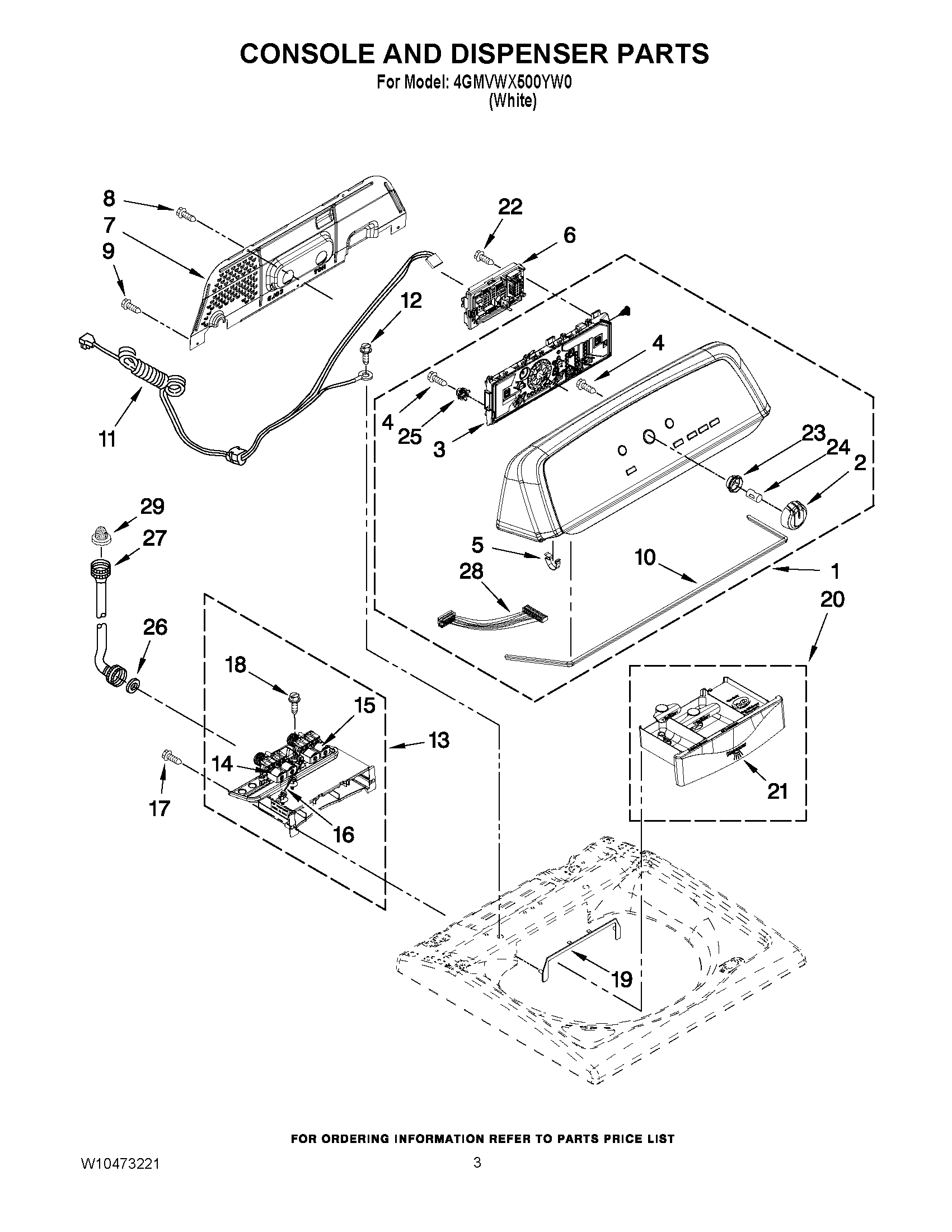

4GMVWX500YW0 02 – CONSOLE AND DISPENSER PARTS

Products

Position	Product
1	MAY W10460136
2	MAY W10251381
3	MAY W10272630
4	MAY W10219342
5	MAY 8312709
6	MAY W10480662
7	MAY W10420984
8	SCREW
9	MAY 1157158
10	MAY W10280079
11	MAY W10453573
12	Screw, 10-32 x 5/8
13	HOUSING ASSEMBLY – DISPENSER
14	MAY W10240976
15	MAY W10240975
16	MAY W10368547
17	SCREW, DISPENSER HOUSING MOUNTING
18	MAY 97787
19	MAY W10240946
20	MAY W10240960
21	MAY W10287478
22	SCREW
23	MAY W10326923
24	CLIP, SPRING
25	TENSIONER, FASCIA
26	ACCESSORY PARTS, WASHER, HOSE
27	MAY W10194210
27	HOSE, INLET (HOT)
28	CABLE, USER INTERFACE
29	MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
