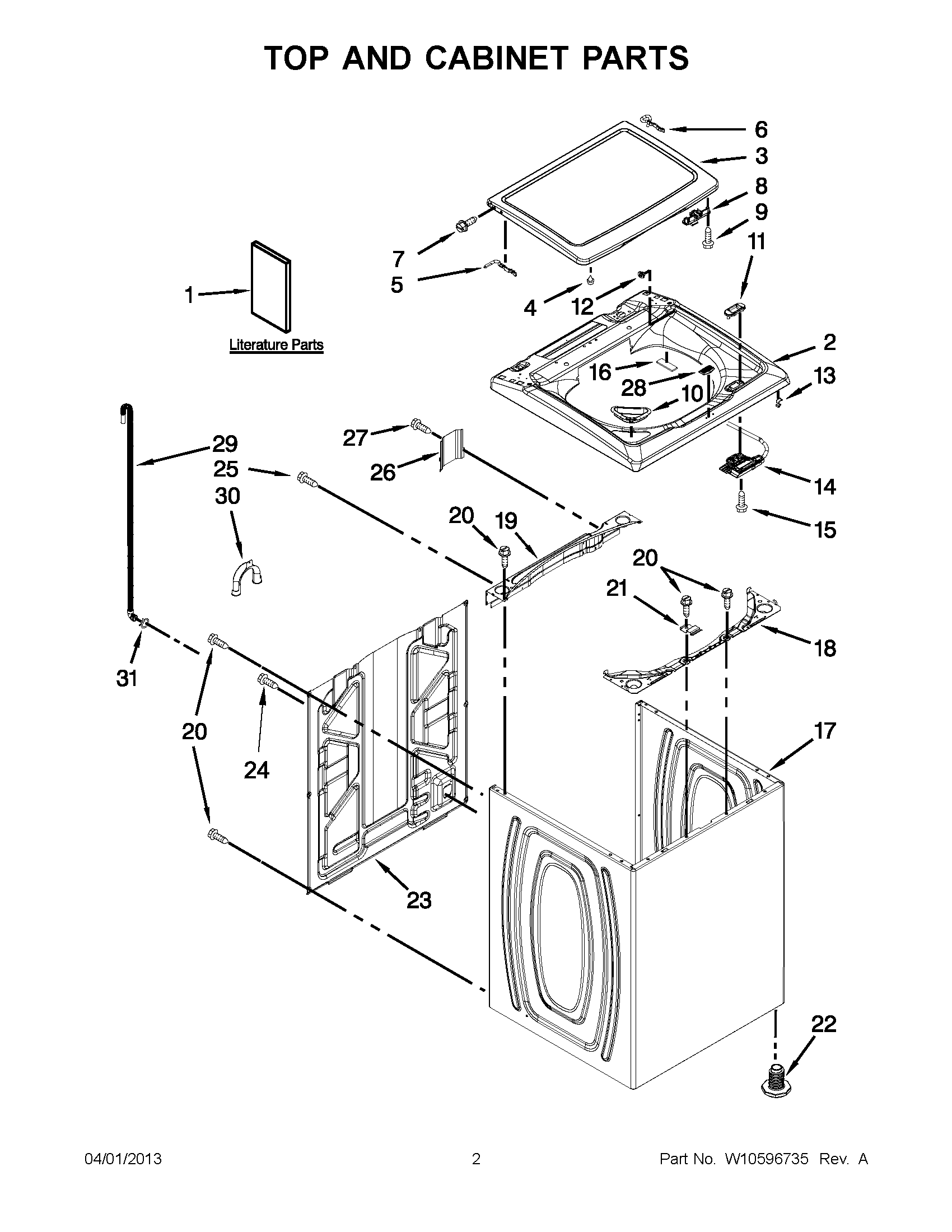

4GMVWX500YW1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10549309
1	MAY W10492230
1	MAY W10549313
2	TOP (WHITE)
3	LID & BUMPER ASSEMBLY (WHITE)
4	MAY 9724509
5	MAY W10295775
6	MAY W10294031
7	SCREW, LID HINGE
8	MAY W10240513
9	SCREW
10	MAY W10240977
11	MAY W10392041
12	MAY W10293230
12	MAY W10293272
13	Clip, Wire (4)
14	LOCK, LID
15	Screw
16	MAY W10333228
17	MAY W10478060
18	MAY W10215098
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	MAY W10248088
22	MAY W10397994
23	PANEL, REAR
24	SCREW
25	SCREW
26	MAY W10215139
27	Screw, 10-32 x 5/8
28	MAY W10492808
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY 356138
