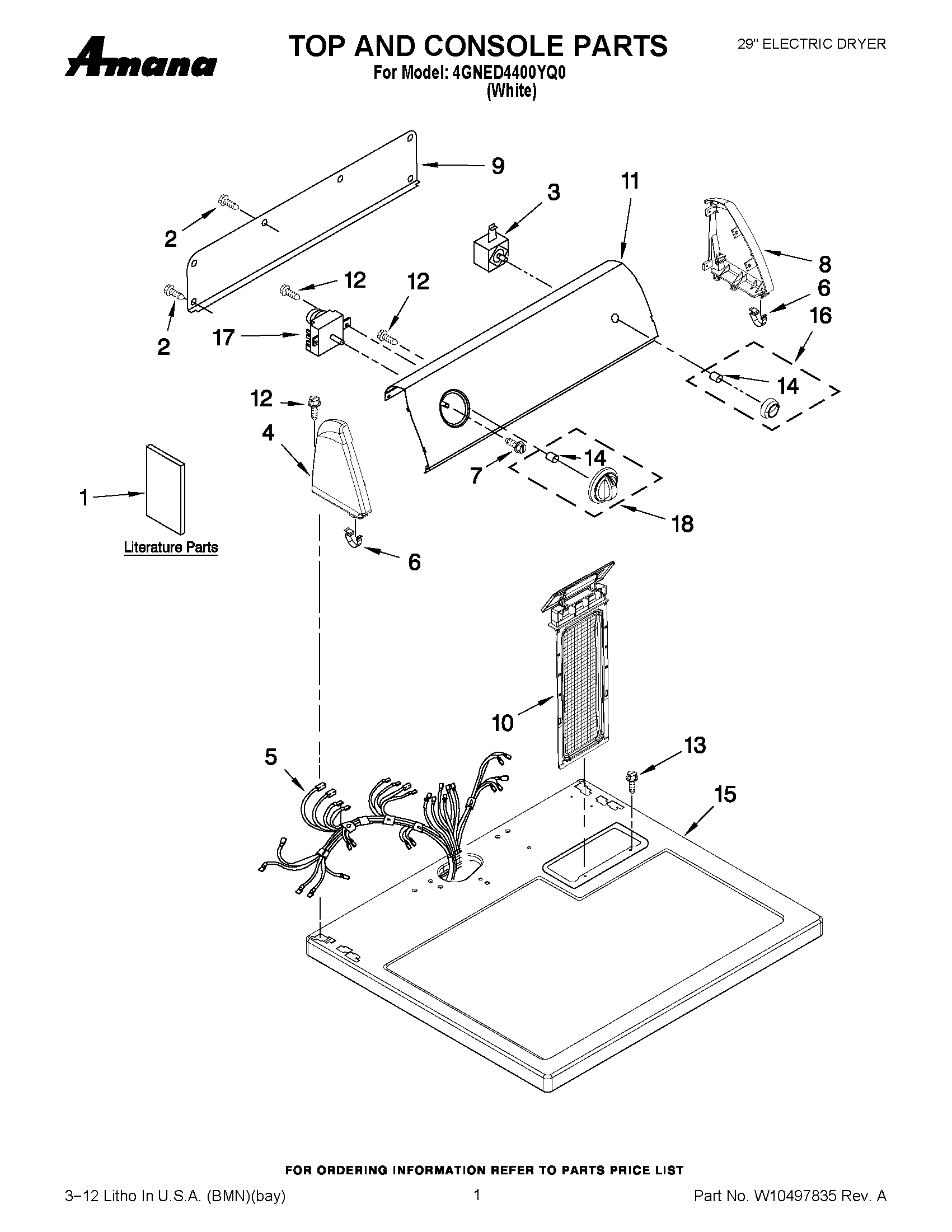

4GNED4400YQ0 01 – TOP AND CONSOLE PARTS

4GNED4400YQ0 01 – TOP AND CONSOLE PARTS

Written by

in

4GNED4400YQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10462985
1	MAY W10396178
1	MAY W10454274
2	Screw
3	MAY 3977456
4	MAY W10251358
5	MAY W10386309
6	MAY 8312709
7	MAY 3348629
8	MAY W10251355
9	MAY 8274261
10	LINT SCREEN (WHITE)
11	MAY W10449052
12	SCREW,8-18 X 3/8
13	SCREW
14	CLIP, SPRING
15	MAY 8559800
16	MAY W10317459
17	MAY 8299781
18	KNOB ASSEMBLY, TIMER
