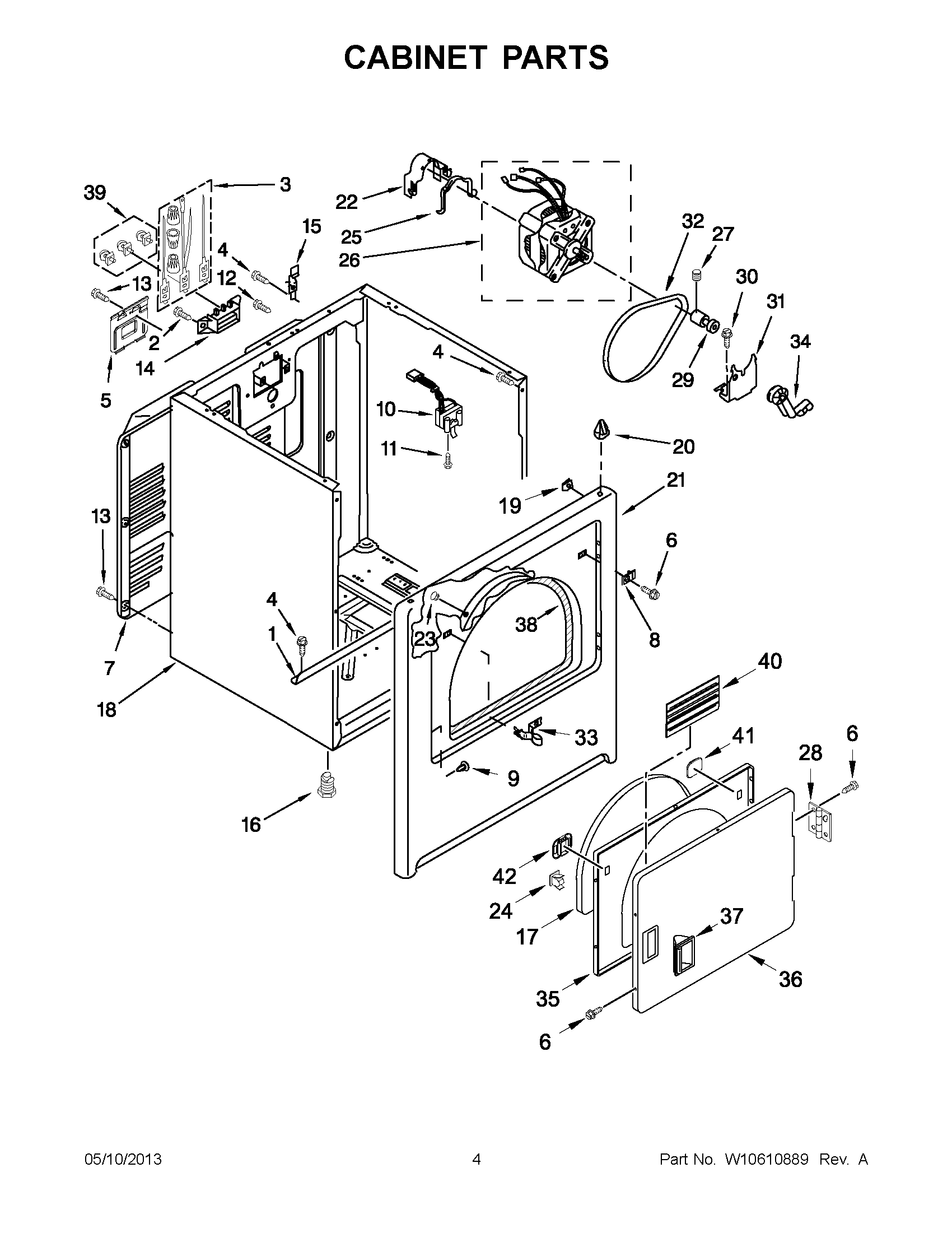

4GNED4400YQ2 02 – CABINET PARTS

Products

Position	Product
1	MAY W10236073
2	SCREW, 10-16 X 1/2
3	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
4	SCREW
5	MAY W10571619
6	MAY 342055
7	MAY W10571724
8	PLUG, STRIKE
9	PLUG, HINGE HOLES
10	MAY 3406109
11	SCREW
12	SCREW
13	Screw
14	MAY 3397659
15	Hinge, Top
16	MAY 3392100
17	MAY W10389572
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	Panel Front Assembly
22	Clamp, Motor (With Shield)
23	Clip, Felt Pad
24	MAY W10529190
25	CLAMP, MOTOR MOUNT
26	ASSEMBLY, MOTOR (50 HZ)
27	Screw, Set
28	ASSEMBLY, HINGE AND PIN
29	PULLEY, MOROR 60 HZ.
30	BOLT
31	MAY 348780
32	MAY W10131364
33	Strike, Door
34	IDLER ASSEMBLY
35	DOOR, INNER
36	DOOR FRONT
37	MAY W10549554
38	SEAL & BEARING ASSEMBLY
39	MAY 279393
40	MAY W10532676
41	COVER, DOOR CATCH
42	BEZEL, DOOR CATCH
