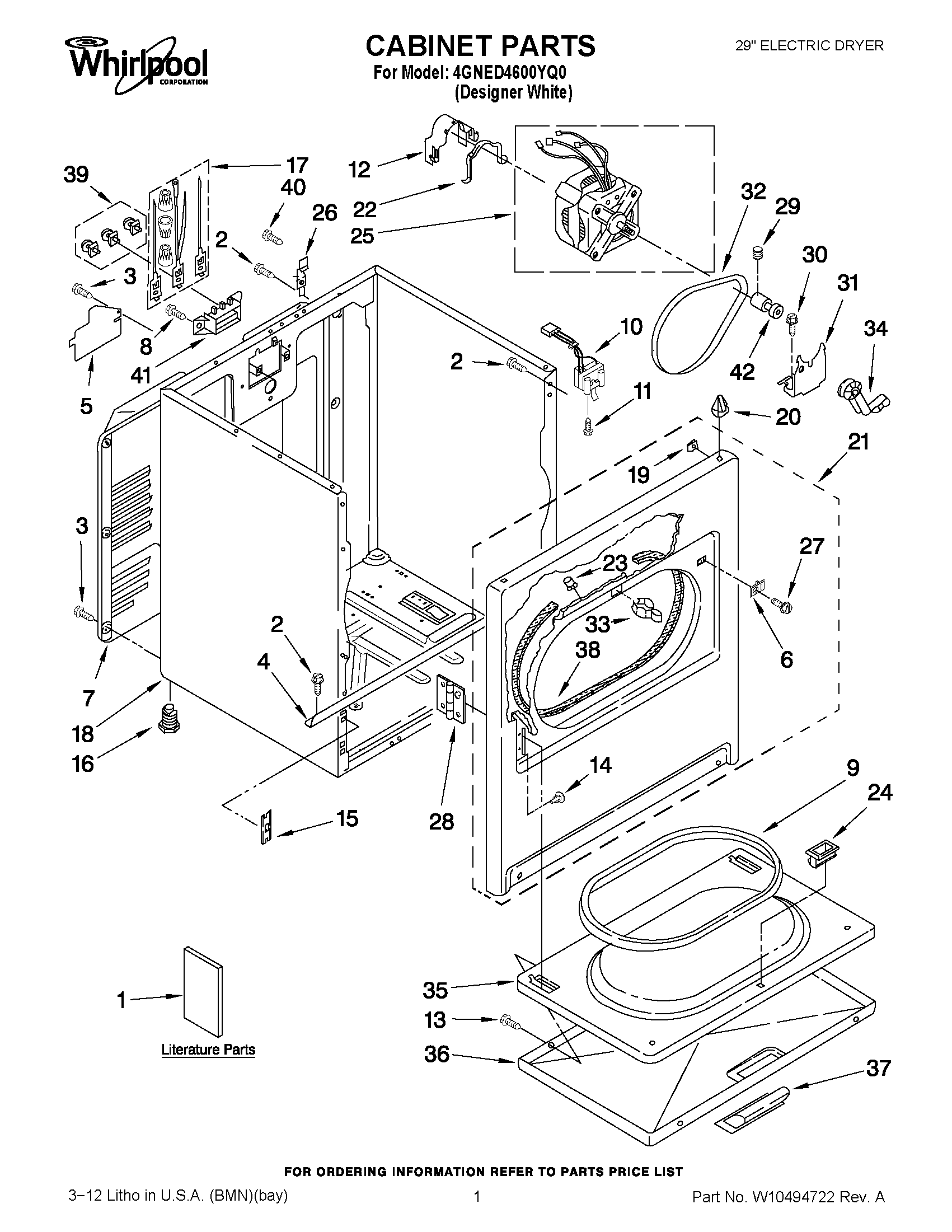

4GNED4600YQ0 01 – CABINET PARTS

4GNED4600YQ0 01 – CABINET PARTS

Written by

in

4GNED4600YQ0 01 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WIRING DIAGRAM
1INSTRUCTIONS, INSTALLATION
1USE & CARE GUIDE
3WP693995 Whirlpool Screw
4BRACKET, CABINET
5W11539855 Whirlpool Refrigerator Pump
6WP3403630 Whirlpool Plug
7280043 Whirlpool Rear Panel
8WP308685 Whirlpool Microwave Screw
9SEAL-DOOR DRYER
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
12WP3404162 Whirlpool Clamp
13SCREW
14WP3404413 Whirlpool Plug
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP8066092 Whirlpool Panel Clip
21W10806345 Whirlpool Panel
22CLAMP
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25W11618508 Whirlpool Drive Motor
26WP8066217 Whirlpool Hinge
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29SCREW, SET
303400500 Whirlpool Screw
31WP348780 Whirlpool Base
32341241 Whirlpool Dryer Drum Belt
33W11429589 Whirlpool Strike
34WP691366 Whirlpool Dryer Idler Pulley Assembly
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
37W10908280 Whirlpool Handle
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40WP3390631 Whirlpool Screw
41WP3397659 Whirlpool Terminal Block
42W11233559 Whirlpool Motor Pulley
