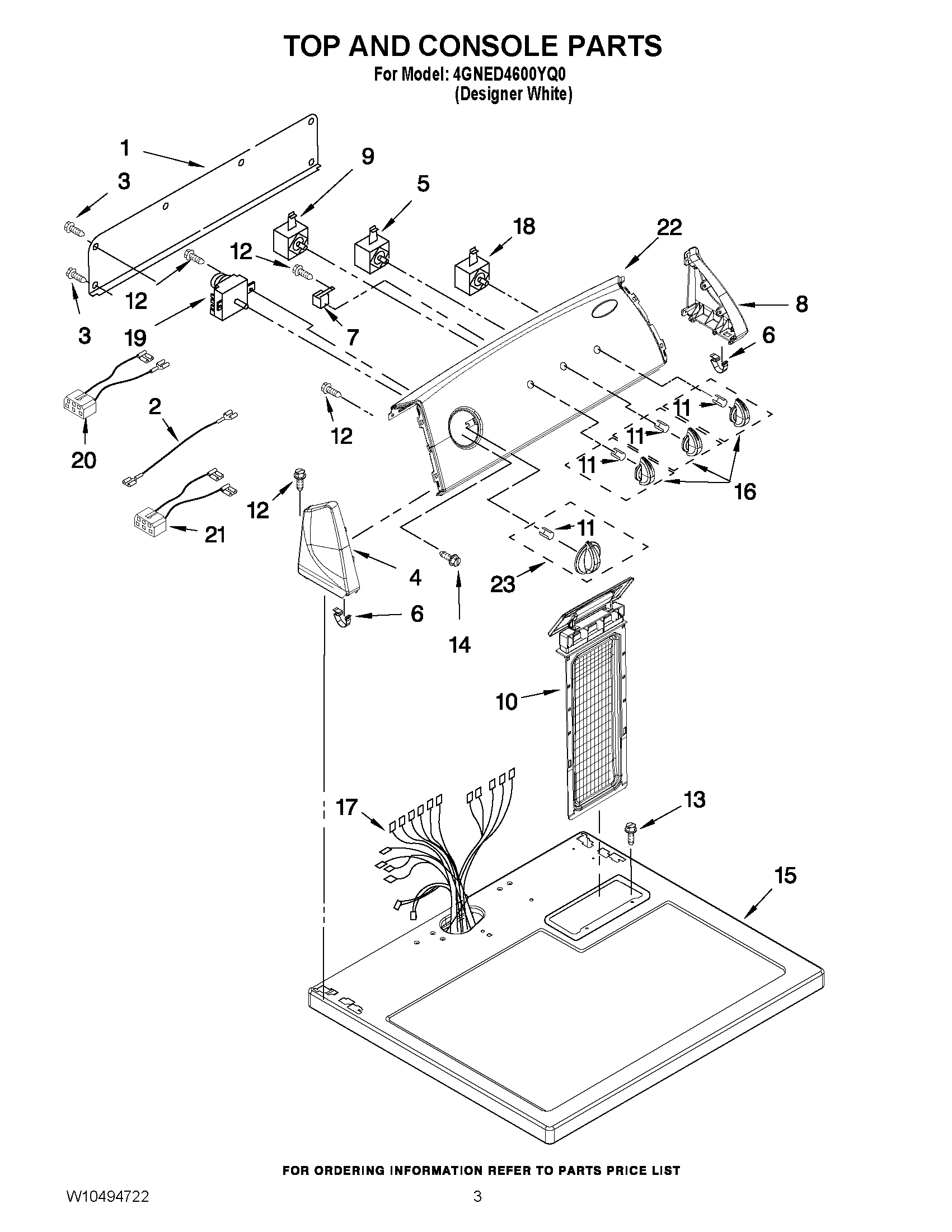

4GNED4600YQ0 02 – TOP AND CONSOLE PARTS

4GNED4600YQ0 02 – TOP AND CONSOLE PARTS

Written by

in

4GNED4600YQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2W10113080 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
4WPW10251358 Whirlpool Endcap
5WP3405156 Whirlpool Switch
6WP8312709 Whirlpool Endcap Clip
73952439 Whirlpool Buzzer
8WPW10251355 Whirlpool End Cap
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP8563663 Whirlpool Top Assembly
16W10317458 Whirlpool Knob
17WPW10386312 Whirlpool Wire Harness
18WPW10112668 Whirlpool Relay Push to Start
19WP3979618 Whirlpool Timer
203397695 Whirlpool Wire Harness
218539893 Whirlpool Wire Harness
22CONTROL PANEL & BRACKET ASSEMBLY (WHITE)
23W10317457 Whirlpool Knob
