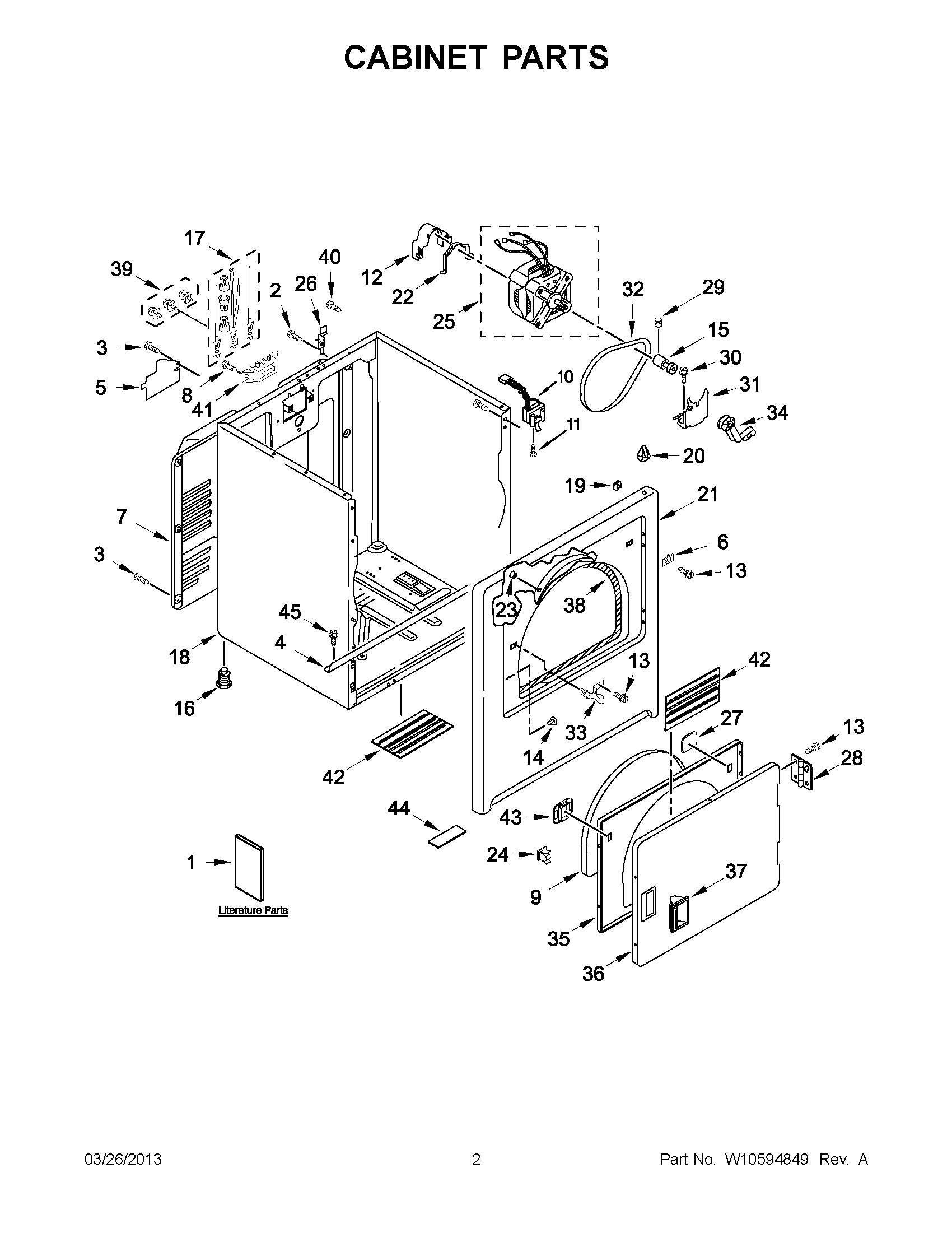

4GNED4600YQ2 01 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10462985
1	MAY W10514189
1	MAY W10396180
2	SCREW
3	Screw
4	MAY W10236073
5	MAY W10571619
6	PLUG, STRIKE
7	MAY W10571724
8	SCREW, 10-16 X 1/2
9	MAY W10389572
10	MAY 3406109
11	SCREW
12	Clamp, Motor (With Shield)
13	MAY 342055
14	PLUG, HINGE HOLES
15	PULLEY, MOROR 60 HZ.
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	Panel Front Assembly
22	CLAMP, MOTOR MOUNT
23	Clip, Felt Pad
24	MAY W10529190
25	ASSEMBLY, MOTOR (50 HZ)
26	Hinge, Top
27	COVER, DOOR CATCH
28	ASSEMBLY, HINGE AND PIN
29	Screw, Set
30	BOLT
31	MAY 348780
32	MAY W10131364
33	Strike, Door
34	IDLER ASSEMBLY
35	DOOR, INNER
36	DOOR FRONT
37	MAY W10549554
38	SEAL & BEARING ASSEMBLY
39	MAY 279393
40	MAY 8533974
41	MAY 3397659
42	MAY W10532676
43	BEZEL, DOOR CATCH
44	MAY W10567977
45	SCREW
