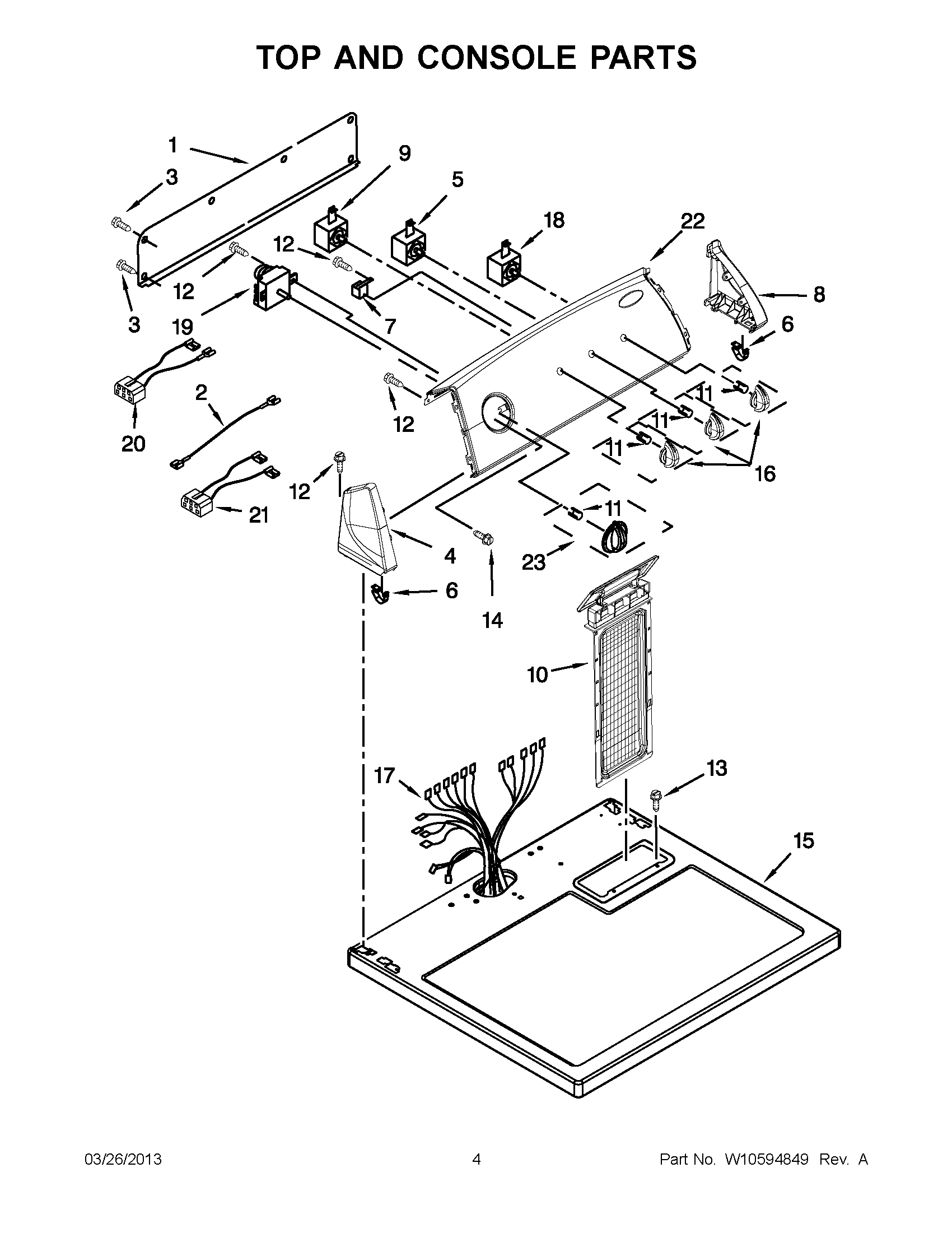

4GNED4600YQ2 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY 8274261
2	WIRE, JUMPER (BUZZER)
3	Screw
4	MAY W10251358
5	MAY 3405156
6	MAY 8312709
7	MAY 3952439
8	MAY W10251355
9	Switch, Temperature
10	LINT SCREEN (WHITE)
11	CLIP, SPRING
12	MAY 3348629
13	SCREW
14	SCREW
15	MAY 8559800
16	KNOB ASSEMBLY, CONTROL
17	MAY W10386312
18	MAY W10112668
19	MAY 3979618
20	MAY W10521801
21	Jumper, Three Temperature
22	CONTROL PANEL & BRACKET ASSEMBLY
23	KNOB ASSEMBLY, TIMER
