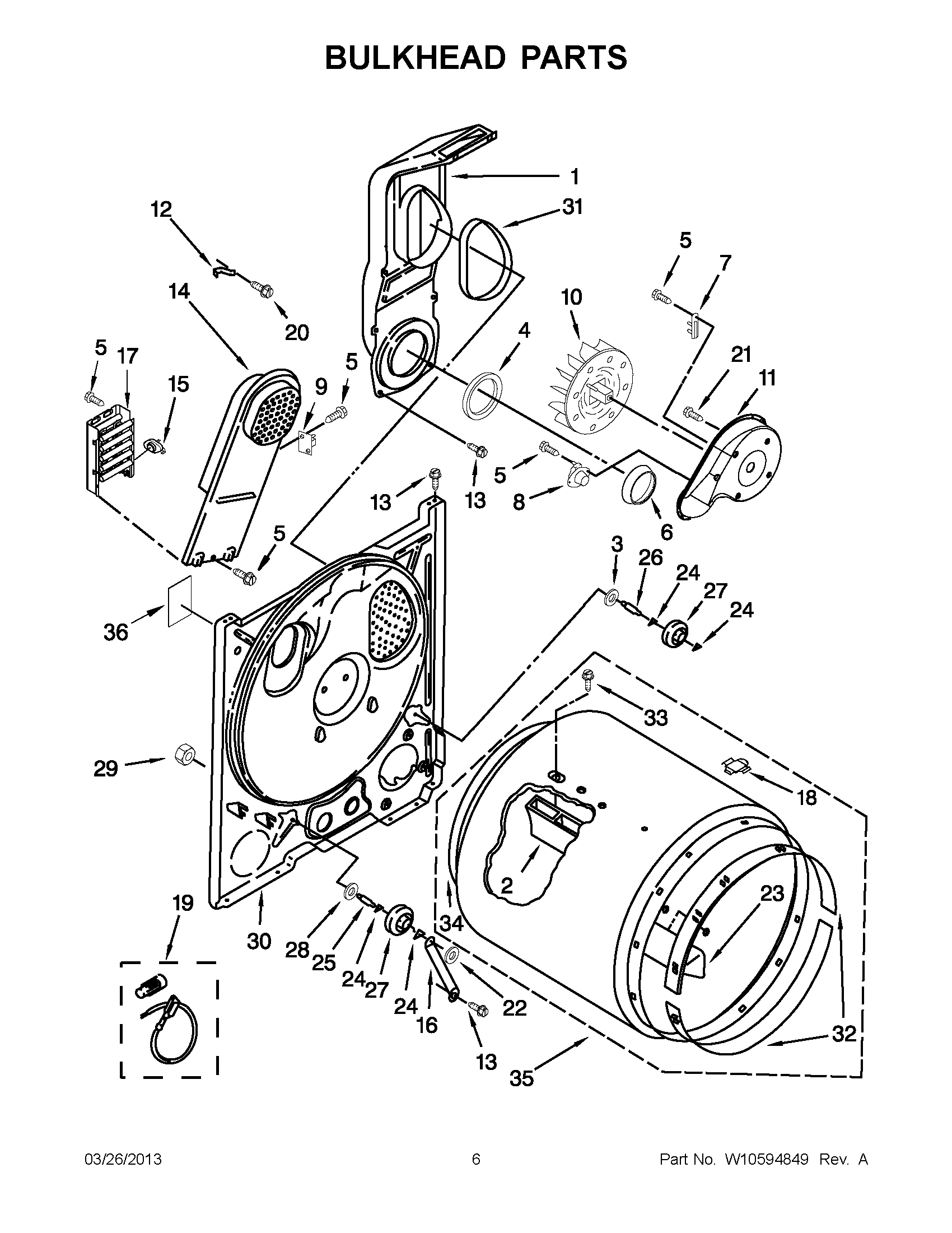

4GNED4600YQ2 03 – BULKHEAD PARTSadmin2025-04-26T09:17:04+00:004GNED4600YQ2 03 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | MAY 348368 |
| 2 | BAFFLE, DRUM (LONG) |
| 3 | WASHER |
| 4 | MAY 347139 |
| 5 | SCREW,8-18 X 3/8 |
| 6 | MAY W10389567 |
| 7 | Fuse, Thermal (91 C) |
| 8 | THERMOSTAT, INTERNAL BIAS |
| 9 | MAY 3977393 |
| 10 | Wheel, Blower |
| 11 | MAY 8577230 |
| 12 | CLIP HEATER BOX |
| 13 | SCREW |
| 14 | MAY 8541818 |
| 15 | MAY 3977767 |
| 16 | MAY 3976434 |
| 17 | MAY 3403585 |
| 18 | Plug, Drum Hole |
| 19 | BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE |
| 20 | Screw |
| 21 | SCREW |
| 22 | NUT, PUSH ON |
| 23 | BAFFLE, DRUM (SHORT) |
| 24 | WASHER, TRI RING |
| 25 | MAY W10359270 |
| 26 | MAY W10359269 |
| 27 | MAY 3397590 |
| 28 | WASHER |
| 29 | MAY W10298789 |
| 30 | MAY 3403410 |
| 31 | MAY 339956 |
| 32 | Bearing, Ring |
| 33 | MAY W10219342 |
| 34 | MAY W10389561 |
| 35 | DRUM ASSEMBLY COMPLETE |
| 36 | MAY W10504381 |
