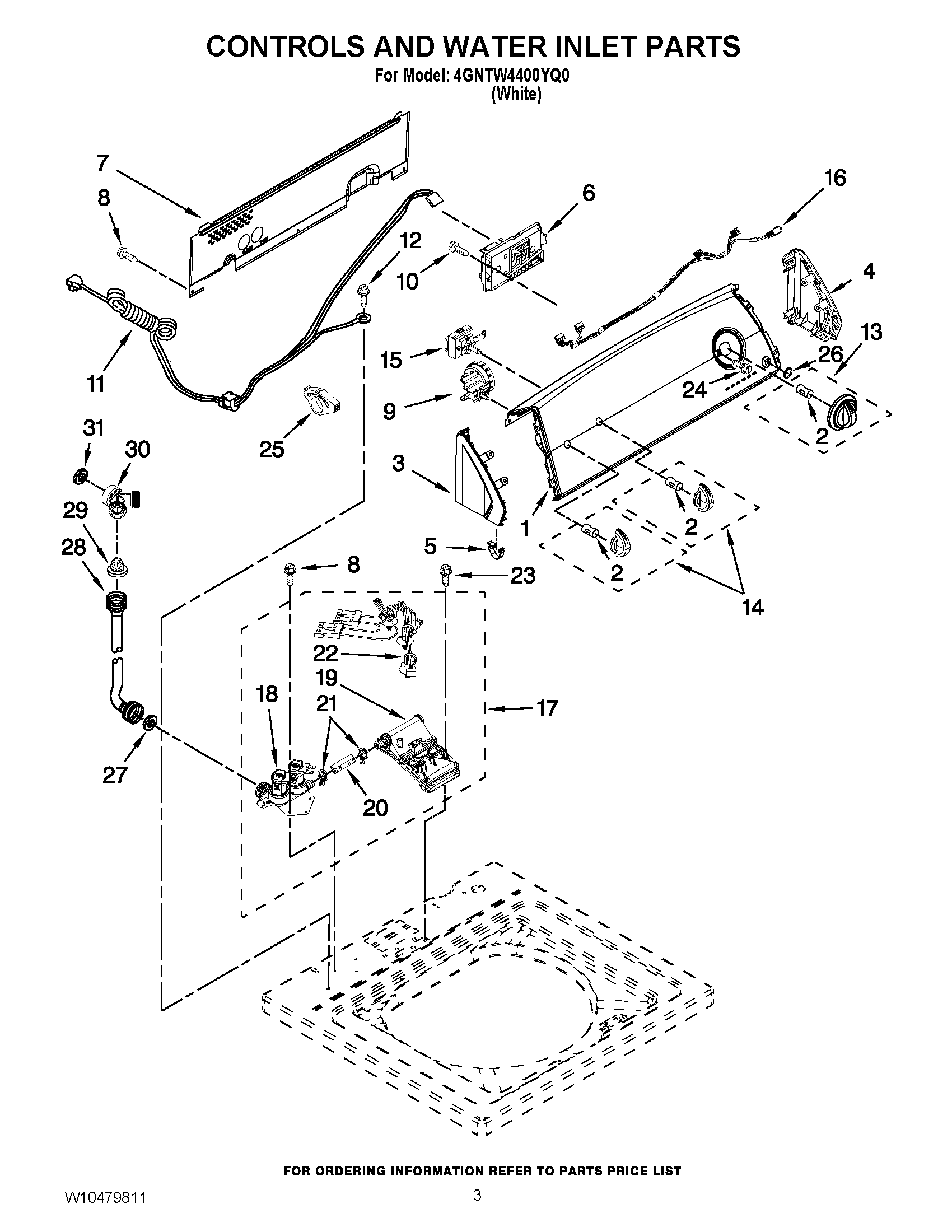

4GNTW4400YQ0 02 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	MAY W10449048
2	CLIP, SPRING
3	MAY W10251358
4	MAY W10251355
5	MAY 8312709
6	MAY W10455302
7	MAY W10420985
8	MAY 1157158
9	MAY W10268911
10	SCREW,8-18 X 3/8
11	MAY W10422755
12	Screw, 10-32 x 5/8
13	MAY W10327522
14	MAY W10327523
15	SWITCH, ROTARY ENCODER
16	MAY W10291178
17	MAY W10337066
18	MAY W10336726
19	MAY W10441423
20	MAY W10238347
21	MAY W10117298
22	MAY W10344775
23	Screw
24	SCREW
25	CLAMP, HOSE
26	MAY W10251309
27	ACCESSORY PARTS, WASHER, HOSE
28	MAY W10194210
28	HOSE, INLET (HOT)
29	MAY 353362
30	MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
31	MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
