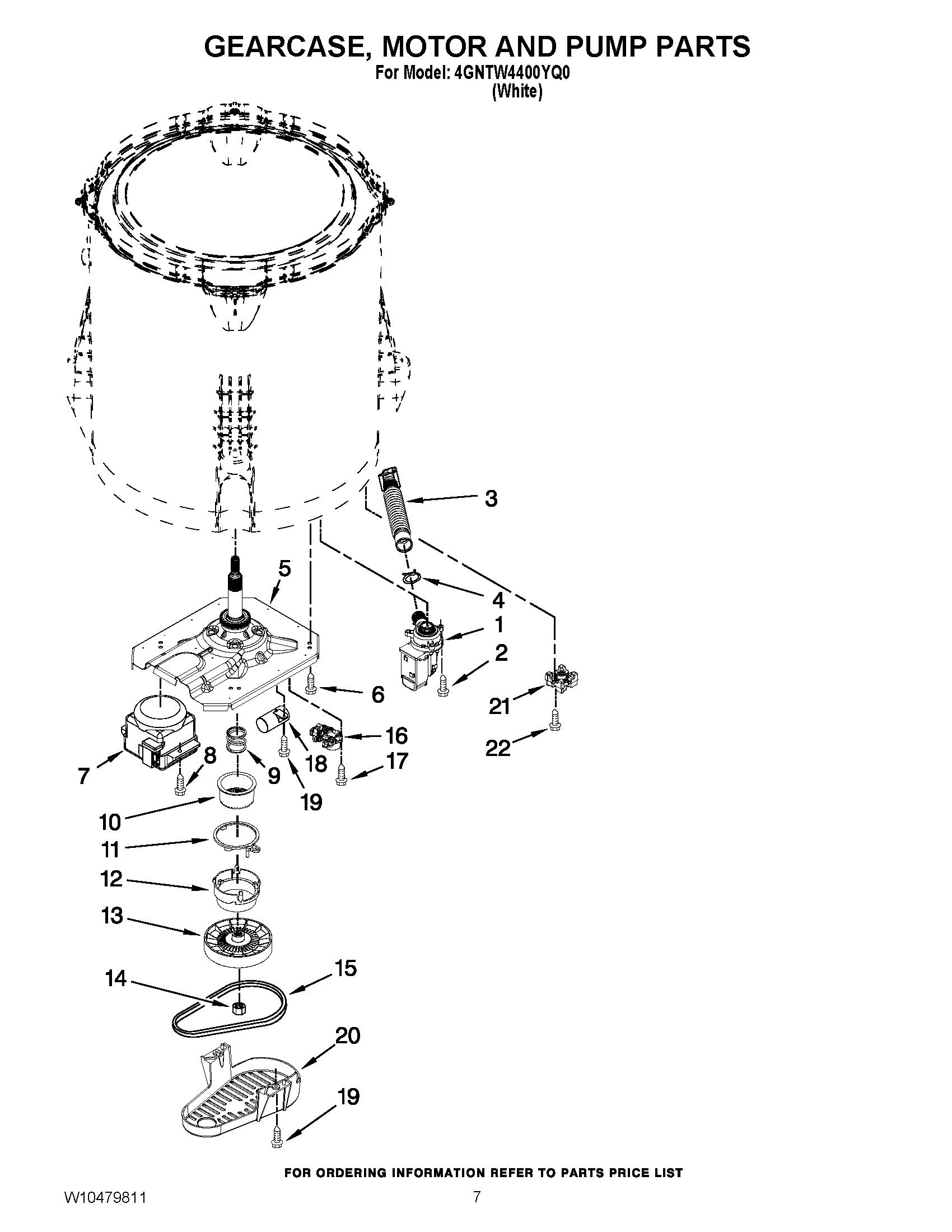

4GNTW4400YQ0 04 – GEARCASE, MOTOR AND PUMP PARTS

4GNTW4400YQ0 04 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

4GNTW4400YQ0 04 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	MAY W10297344
2	SCREW
3	HOSE, INNER DRAIN ASSEMBLY
4	MAY 8317496
5	MAY W10006378
6	SCREW
7	MAY W10249626
8	BOLT, COUNTERWEIGHT
9	SPRING, SPLUTCH
10	SLIDER, SPLUTCH
11	CAM RING, SPLUTCH
12	CAM, SPLUTCH
13	MAY W10006356
14	MAY W10163336
15	MAY W10006384
16	MAY W10249623
17	SCREW
18	MAY W10349182
19	SCREW
20	MAY W10006383
21	MAY W10238318
22	SCREW
