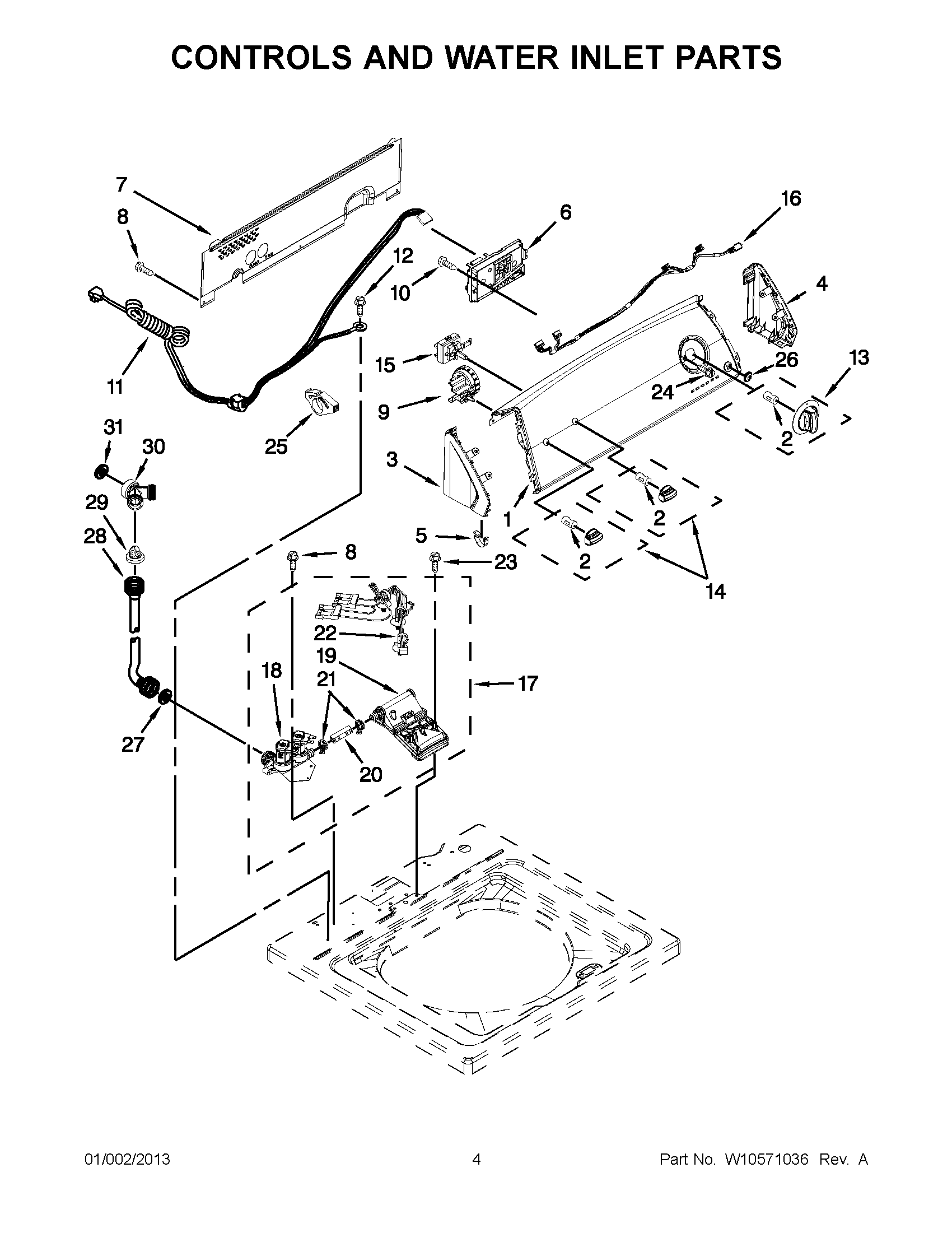

4GNTW4400YQ1 02 – CONTROLS AND WATER INLET PARTS

4GNTW4400YQ1 02 – CONTROLS AND WATER INLET PARTS

Written by

in

4GNTW4400YQ1 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NI10A CORD LOCK
NI10A CORD ADAPTER (TYPE B)
NI10A CORD ADAPTER (BRITISH)
NI10A CORD ADAPTER (EUROPEAN)
1MAY W10449048
2CLIP, SPRING
3MAY W10251358
4MAY W10251355
5MAY 8312709
6MAY W10480678
7MAY W10420985
8MAY 1157158
9MAY W10268911
10SCREW,8-18 X 3/8
11MAY W10422755
12Screw, 10-32 x 5/8
13KNOB ASSEMBLY, TIMER
14KNOB ASSEMBLY, CONTROL
15SWITCH, ROTARY ENCODER
16MAY W10291178
17MAY W10337066
18MAY W10336726
19MAY W10441423
20MAY W10238347
21MAY W10117298
22MAY W10344775
23Screw
24SCREW
25CLAMP, HOSE
26MAY W10251309
27ACCESSORY PARTS, WASHER, HOSE
28MAY W10194210
28MAY W10194211
29MAY 353362
30MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
31MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
