4GNTW4400YQ2 02 – TOP AND CABINET PARTS – Aparts

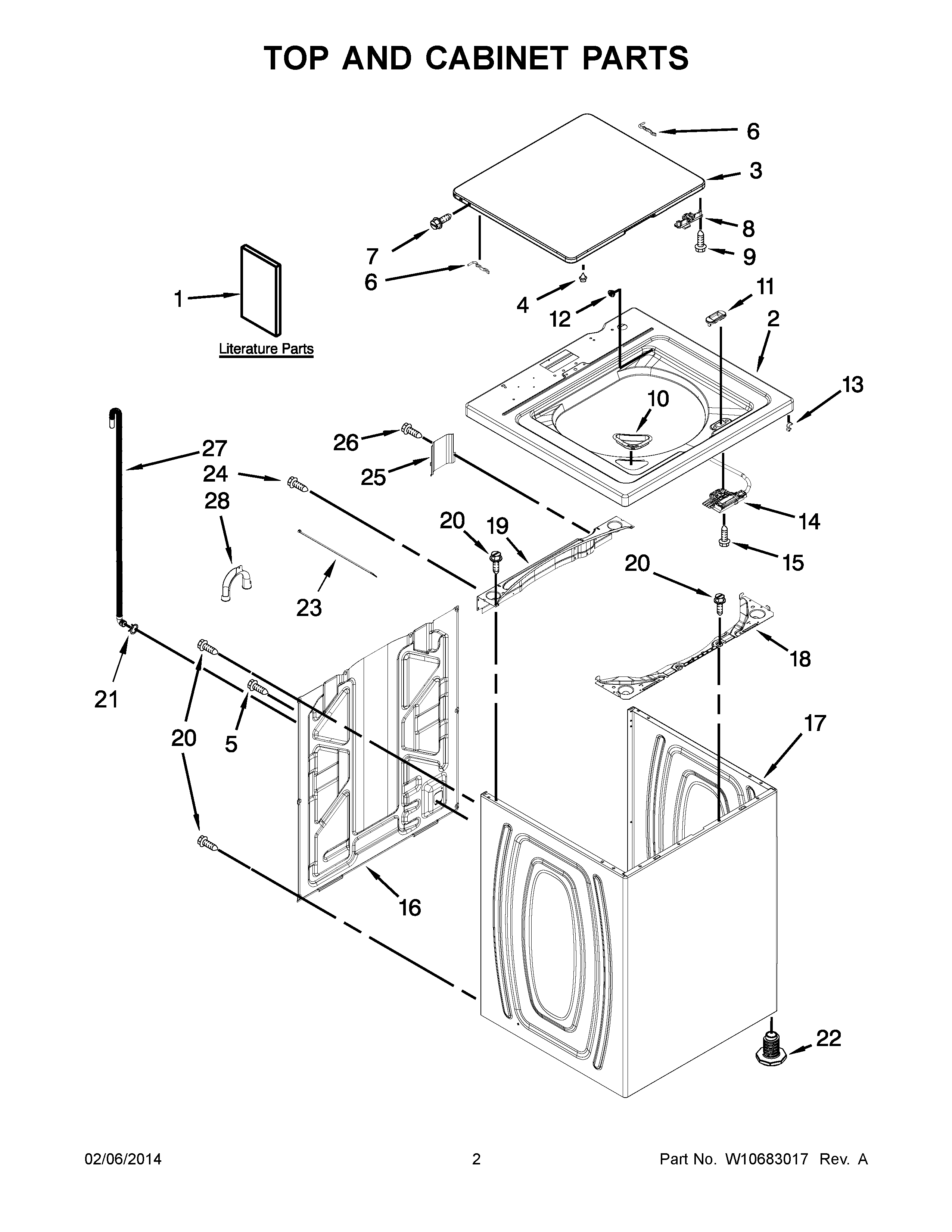

4GNTW4400YQ2 02 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10589598
1	MAY W10620479
1	MAY W10589601
2	TOP (WHITE)
3	LID & BUMPER ASSEMBLY (WHITE)
4	MAY 9724509
5	SCREW
6	HINGE, LID
7	Screw And Washer
8	MAY W10240513
9	SCREW
10	MAY W10192089
11	MAY W10392041
12	Hinge, Bearing (2)
13	Clip, Wire (4)
14	LOCK, LID
15	Screw
16	PANEL, REAR
17	MAY W10478060
18	MAY W10215098
19	BRACE, CABINET TOP - REAR
20	MAY 1157158
21	MAY 356138
22	MAY W10397994
23	TIE, CABLE
24	SCREW
25	MAY W10215139
26	Screw, 10-32 x 5/8
27	HOSE, OUTER DRAIN ASSEMBLY
28	MAY W10280024
