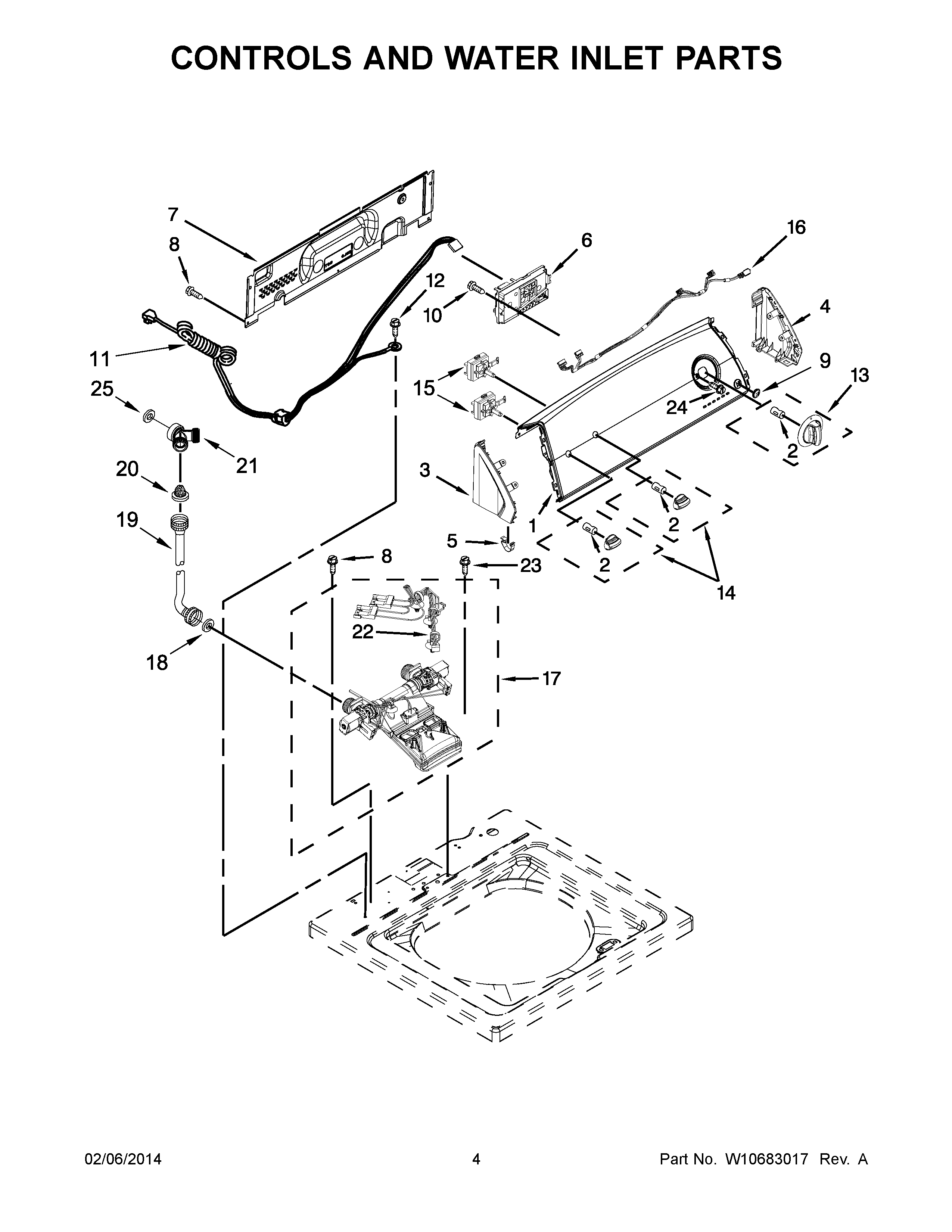

4GNTW4400YQ2 03 – CONTROLS AND WATER INLET PARTS

4GNTW4400YQ2 03 – CONTROLS AND WATER INLET PARTS

Written by

in

4GNTW4400YQ2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NI10A CORD ADAPTER (EUROPEAN)
NI10A CORD ADAPTER (BRITISH)
NI10A CORD ADAPTER (TYPE B)
NI10A CORD LOCK
1MAY W10449048
2CLIP, SPRING
3MAY W10251358
4MAY W10251355
5MAY 8312709
6MAY W10591693
7MAY W10461159
8MAY 1157158
9MAY W10251309
10SCREW,8-18 X 3/8
11MAY W10422755
12Screw, 10-32 x 5/8
13KNOB ASSEMBLY, TIMER
14KNOB ASSEMBLY, CONTROL
15SWITCH, ROTARY ENCODER
16MAY W10537670
17MAY W10486030
18ACCESSORY PARTS, WASHER, HOSE
19MAY W10194210
19MAY W10194211
20MAY 353362
21MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
22MAY W10423127
23Screw
24SCREW
25MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
