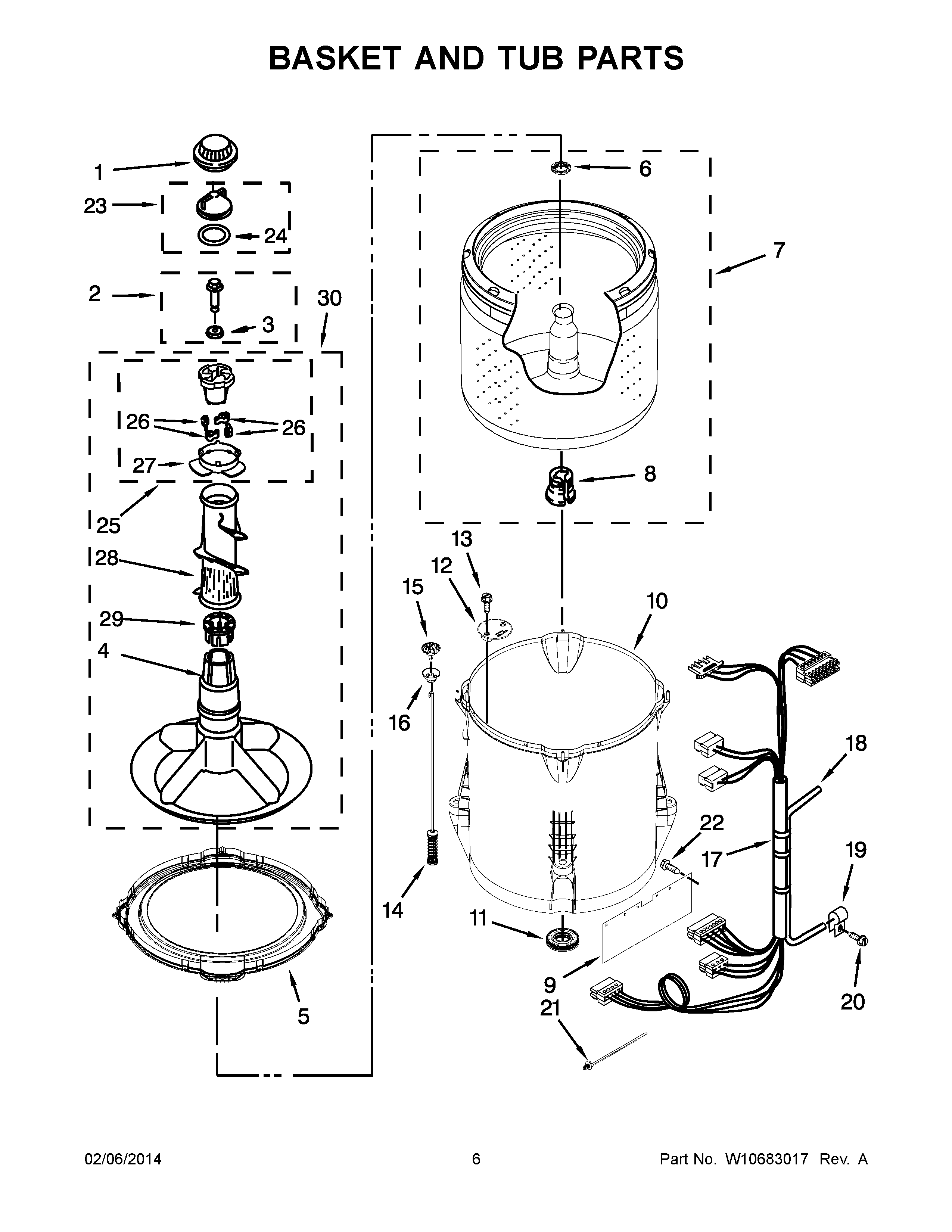

4GNTW4400YQ2 04 – BASKET AND TUB PARTS

4GNTW4400YQ2 04 – BASKET AND TUB PARTS

Written by

in

4GNTW4400YQ2 04 – BASKET AND TUB PARTS

Products

PositionProduct
1MAY 3355758
2SCREW & WASHER
3MAY 3949550
4MAY 3951632
5MAY W10215107
6MAY 21366
7MAY W10358261
8Block, Drive
9MAY W10339098
10TUB (INCLUDES TUB SEAL)
11MAY W10006371
12MAY W10215093
13Screw
14DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES BALL & BUSHING)
15BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSION BUSHINGS)
16BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
17MAY W10504119
18MAY W10431037
19CLAMP, CABLE
20SCREW
21MAY W10298887
22MAY W10429200
23MAY 3354733
24MAY W10072840
25CAM, DRIVEN
26Dog, Agitator (4)
27Bearing, Cam Driven
28MAY 3363003
29Spacer, Thrust
30MAY 3951744
