4GNTW4400YQ2 05 – GEARCASE, MOTOR AND PUMP PARTS
Written by
in

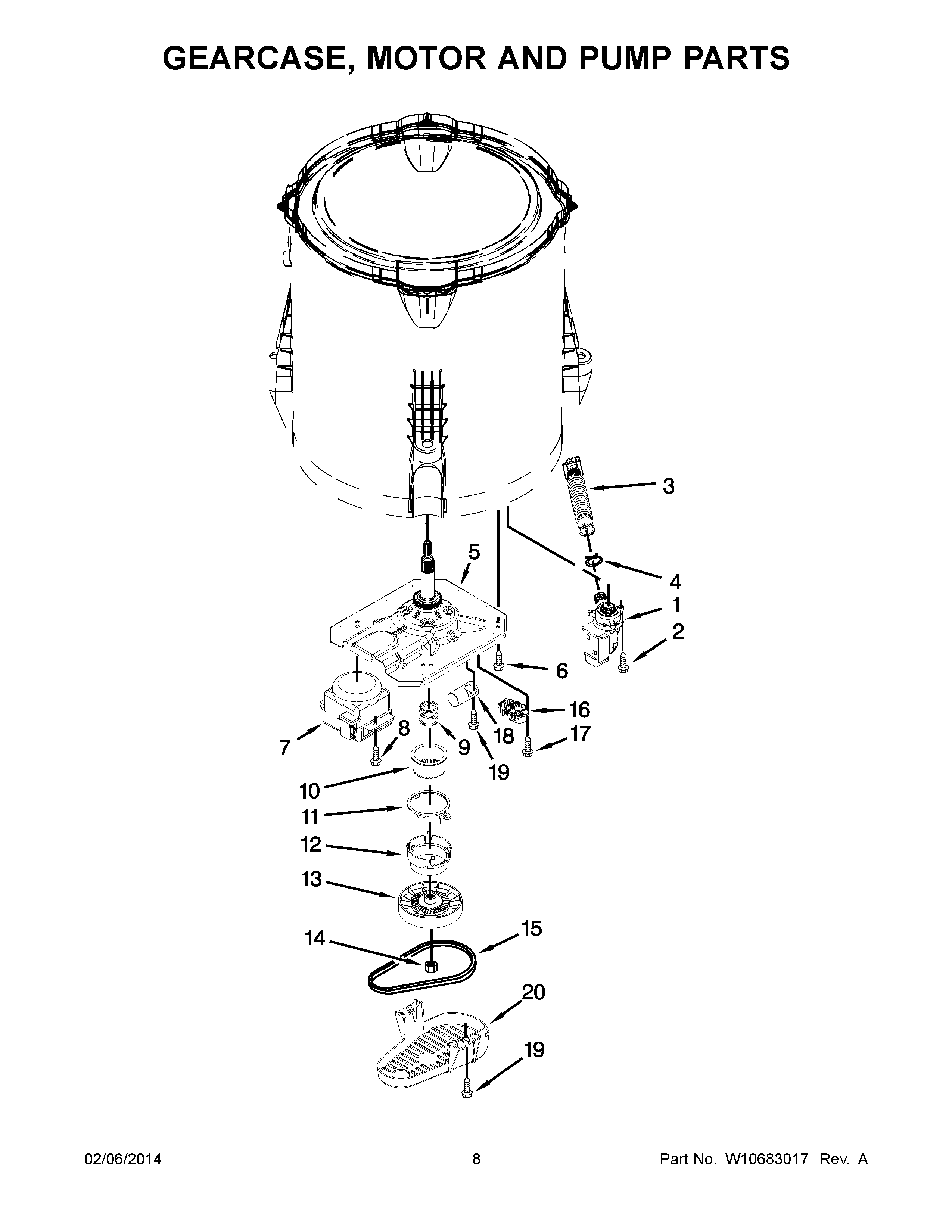

4GNTW4400YQ2 05 – GEARCASE, MOTOR AND PUMP PARTS
Products
Position
Product
1
MAY W10297344
2
SCREW
3
HOSE, INNER DRAIN ASSEMBLY
4
MAY 8317496
5
MAY W10473144
6
SCREW
7
MAY W10416659
8
BOLT, COUNTERWEIGHT
9
SPRING, SPLUTCH
10
SLIDER, SPLUTCH
11
CAM RING, SPLUTCH
12
CAM, SPLUTCH
13
MAY W10536113
14
NUT
15
MAY W10006384
16
MAY W10249623
17
SCREW
18
MAY W10456704
19
SCREW
20
MAY W10427633
←
