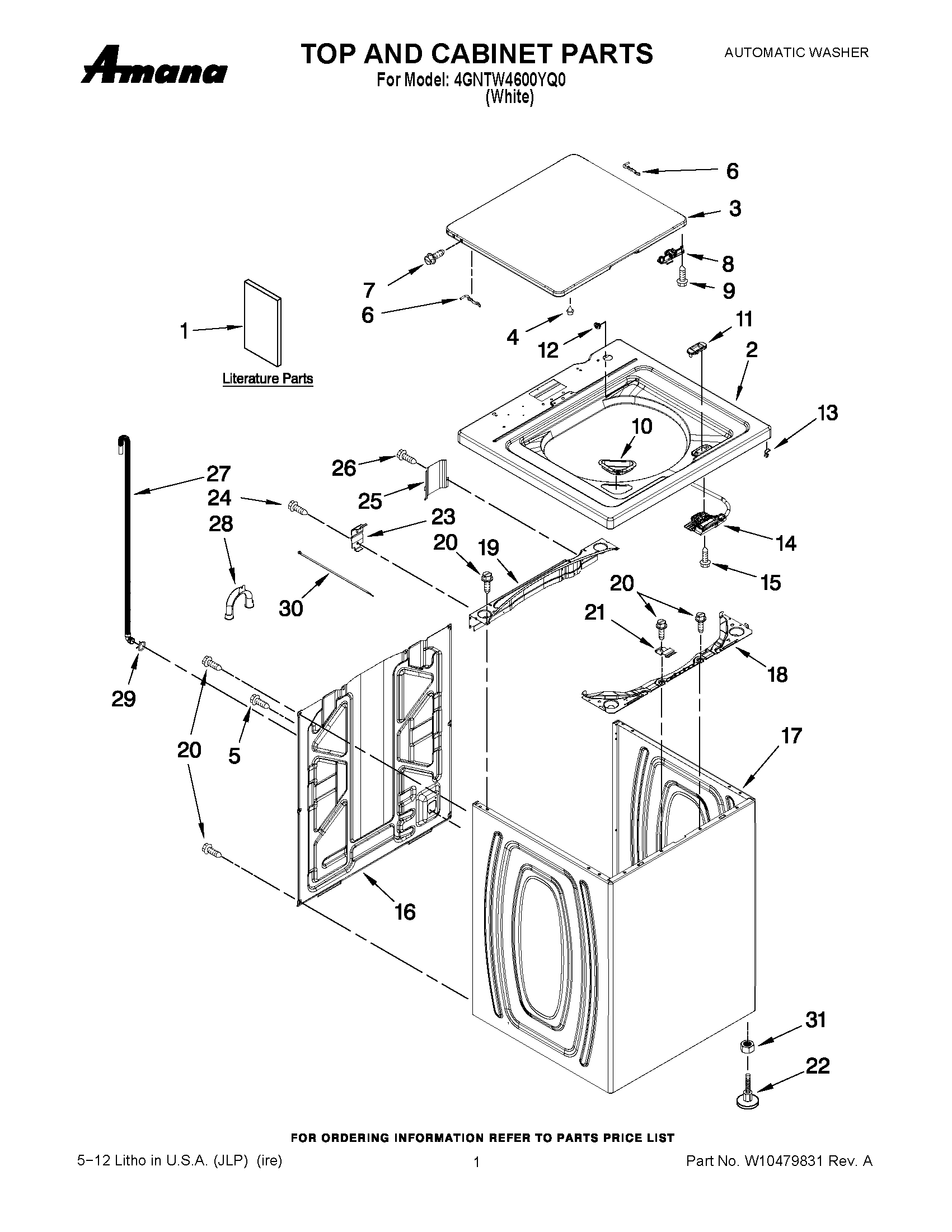

4GNTW4600YQ0 01 – TOP AND CABINET PARTS

4GNTW4600YQ0 01 – TOP AND CABINET PARTS

Written by

in

4GNTW4600YQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10462976
1MAY W10280489
1MAY W10454261
2TOP (WHITE)
3LID & BUMPER ASSEMBLY (WHITE)
4MAY 9724509
5SCREW
6HINGE, LID (RIGHT HAND)
6HINGE, LID
7Screw And Washer
8MAY W10240513
9SCREW
10MAY W10192089
11MAY W10392041
12Hinge, Bearing (2)
13Clip, Wire (4)
14LOCK, LID
15Screw
16PANEL, REAR
17CABINET & FOOT ASSEMBLY (WHITE)
18MAY W10215098
19BRACE, CABINET TOP – REAR
20MAY 1157158
21MAY W10248088
22MAY W10335586
23MAY W10215102
24SCREW
25MAY W10215139
26Screw, 10-32 x 5/8
27HOSE, OUTER DRAIN ASSEMBLY
28MAY W10280024
29MAY 356138
30TIE, CABLE
31Nut, 3/8-16
