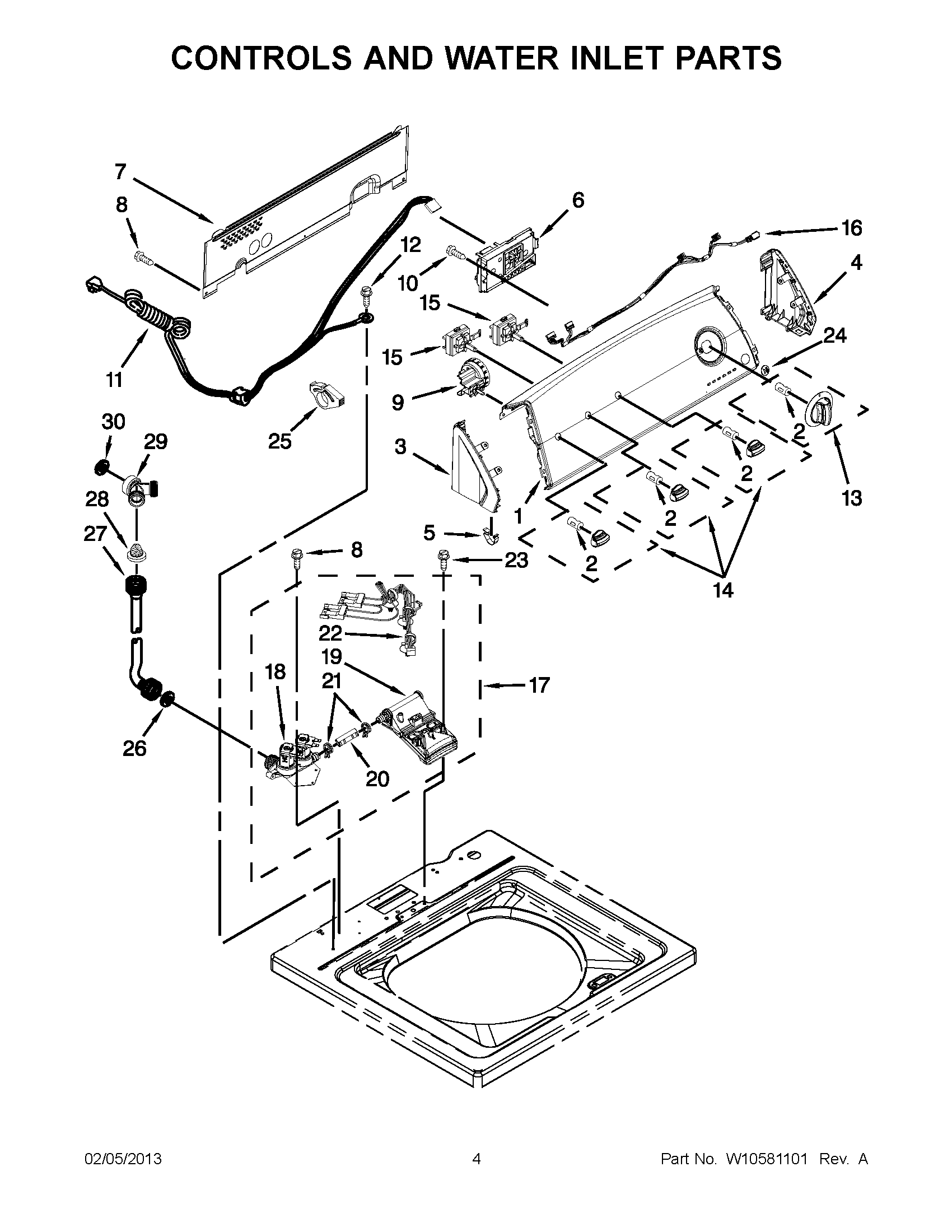

4GNTW4600YQ1 02 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1MAY W10449049
2CLIP, SPRING
3MAY W10251358
4MAY W10251355
5MAY 8312709
6MAY W10480685
7MAY W10420985
8MAY 1157158
9MAY W10268912
10SCREW,8-18 X 3/8
11MAY W10422755
12Screw, 10-32 x 5/8
13KNOB ASSEMBLY, TIMER
14KNOB ASSEMBLY, CONTROL
15SWITCH, ROTARY ENCODER
16MAY W10291174
17MAY W10337066
18MAY W10336726
19MAY W10441423
20MAY W10238347
21MAY W10117298
22MAY W10344775
23Screw
24MAY W10251309
25CLAMP, HOSE
26ACCESSORY PARTS, WASHER, HOSE
27MAY W10194210
27MAY W10194211
28MAY 353362
29MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
30MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
