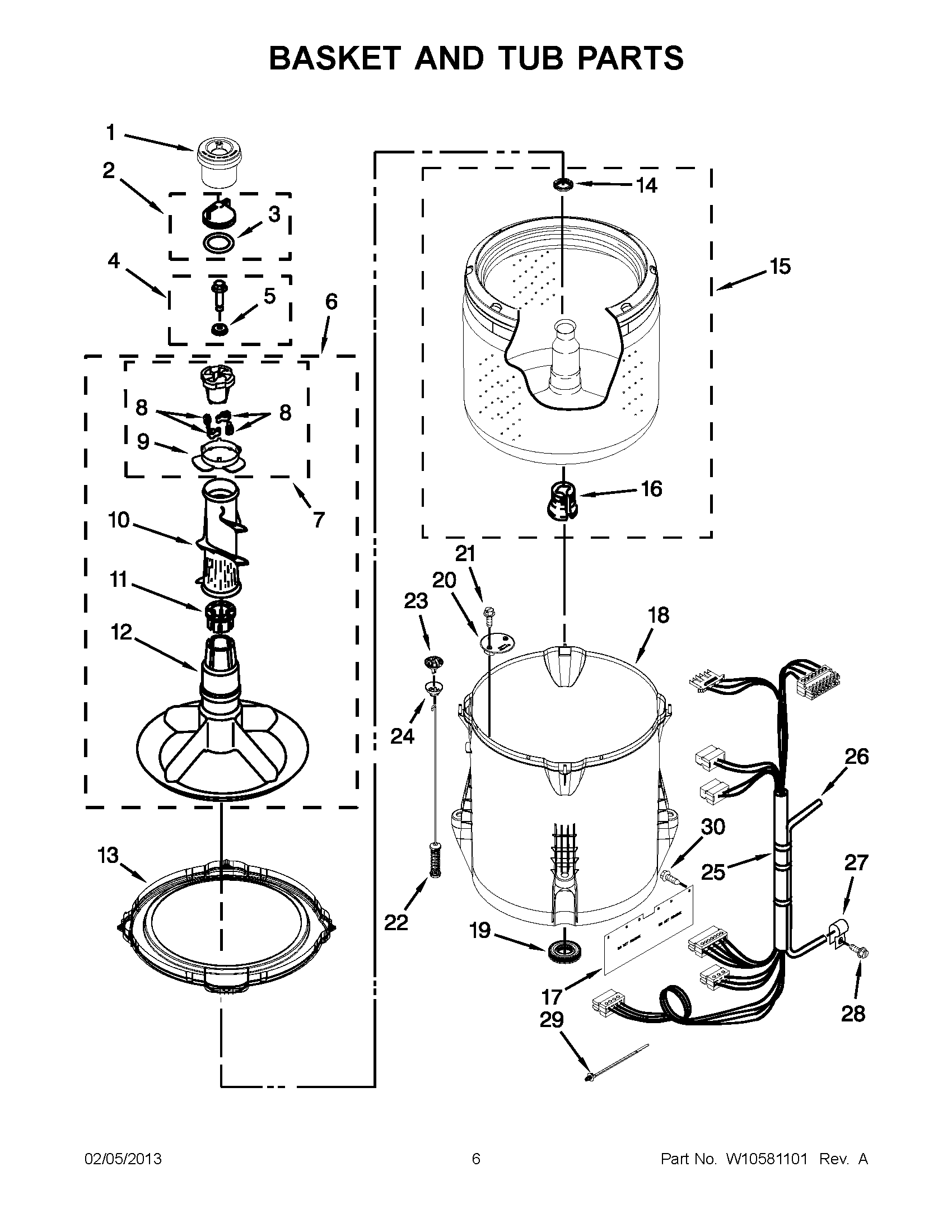

4GNTW4600YQ1 03 – BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8575076
2	MAY 3354733
3	MAY W10072840
4	SCREW & WASHER
5	MAY 3949550
6	MAY 3951744
7	MAY 3951682
8	Dog, Agitator (4)
9	Bearing, Cam Driven
10	MAY 3363003
11	Spacer, Thrust
12	MAY 3951632
13	MAY W10215107
14	MAY 21366
15	MAY W10358261
16	Block, Drive
17	MAY W10339098
18	TUB (INCLUDES TUB SEAL)
19	MAY W10006371
20	MAY W10215093
21	Screw
22	DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES BALL & BUSHING)
23	BALL (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
24	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
25	HARNESS, LOWER
26	MAY W10297436
27	CLAMP, CABLE
28	SCREW
29	MAY W10298887
30	MAY W10429200
