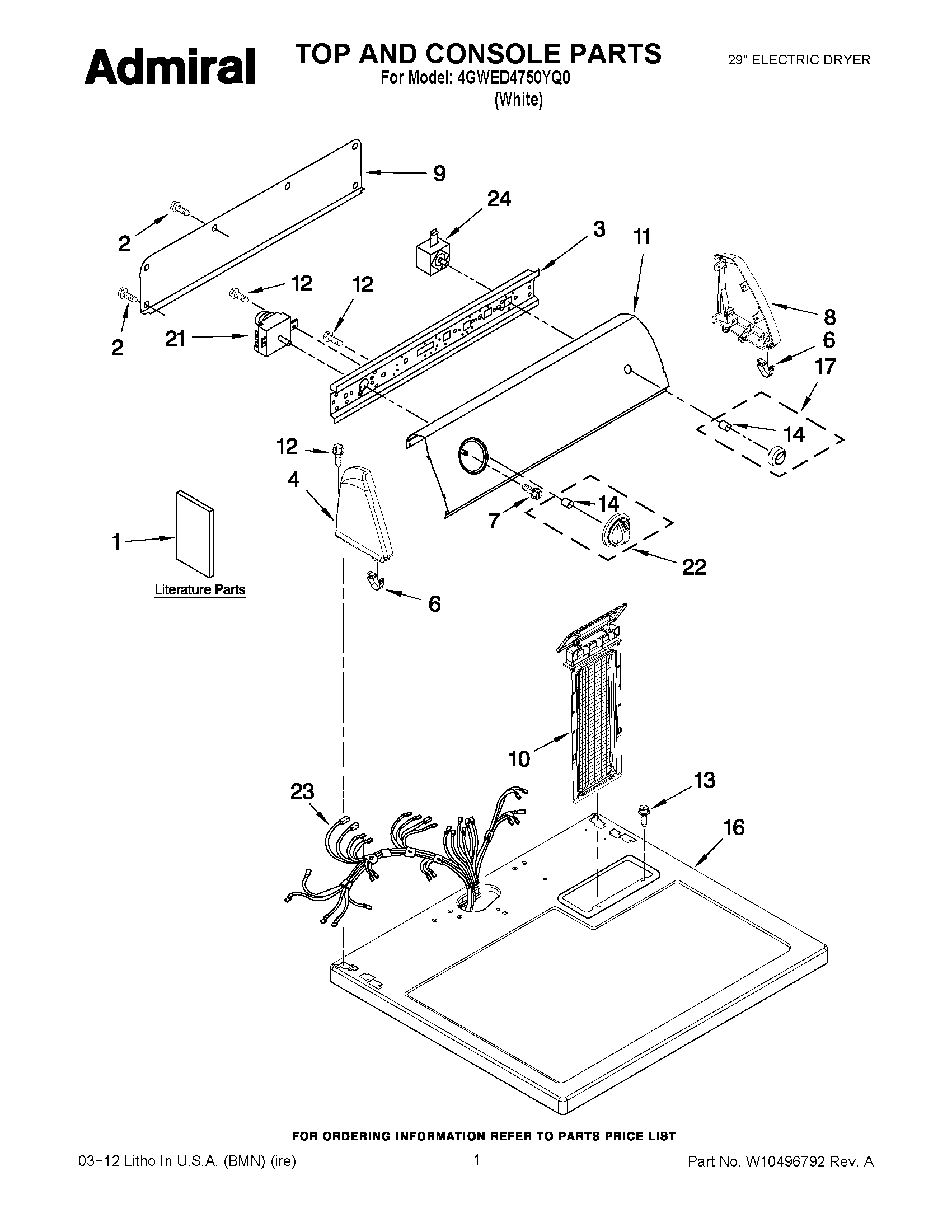

4GWED4750YQ0 01 – TOP AND CONSOLE PARTS

4GWED4750YQ0 01 – TOP AND CONSOLE PARTS

Written by

in

4GWED4750YQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10396178
1	U & C GUIDE (ENGLISH)
1	MAY W10454274
2	Screw
3	BRACKET,CONTROL
4	END CAP (L.H.) (WHITE)
6	MAY 8312709
7	MAY 3348629
8	END CAP (R.H.) (WHITE)
9	MAY W10103406
10	LINT SCREEN WHITE
11	MAY W10365084
12	SCREW,8-18 X 3/8
13	SCREW
14	CLIP, SPRING
16	MAY 8559800
17	KNOB, PUSH-TO-START
21	MAY 8299781
22	KNOB, TIMER (WHITE/METALLIC)
23	MAY W10386309
24	MAY 3977456
