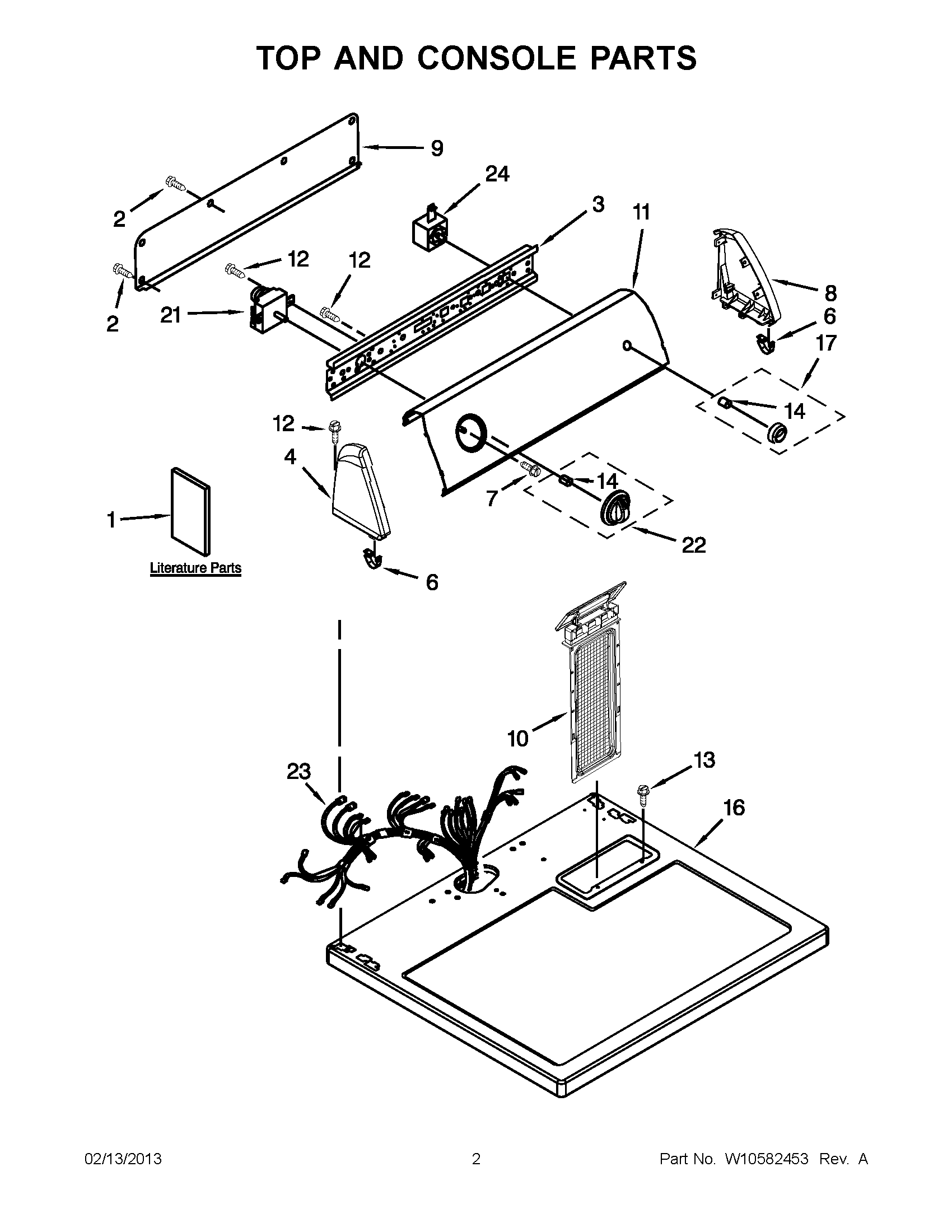

4GWED4750YQ1 01 – TOP AND CONSOLE PARTS

4GWED4750YQ1 01 – TOP AND CONSOLE PARTS

Written by

in

4GWED4750YQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1USE & CARE GUIDE
1INSTRUCTIONS, INSTALLATION
2WP693995 Whirlpool Screw
38566052 Whirlpool Bracket
4WP8565957 Whirlpool Endcap Assembly
6WP8312709 Whirlpool Endcap Clip
7WP90767 Whirlpool Screw
8WP8565954 Whirlpool Endcap
9W10103406 Whirlpool Rear Panel
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11PANEL, CONTROL
13W11693756 Whirlpool Screw Assembly
14WP8536939 Whirlpool Spring Clip
16WP8563663 Whirlpool Top Assembly
17W10034770 Whirlpool Knob Assembly
21WP8299781 Whirlpool Timer
22TIMER KNOB ASSEMBLY
23HARNESS, WIRING
24WP3977456 Whirlpool Start Switch
