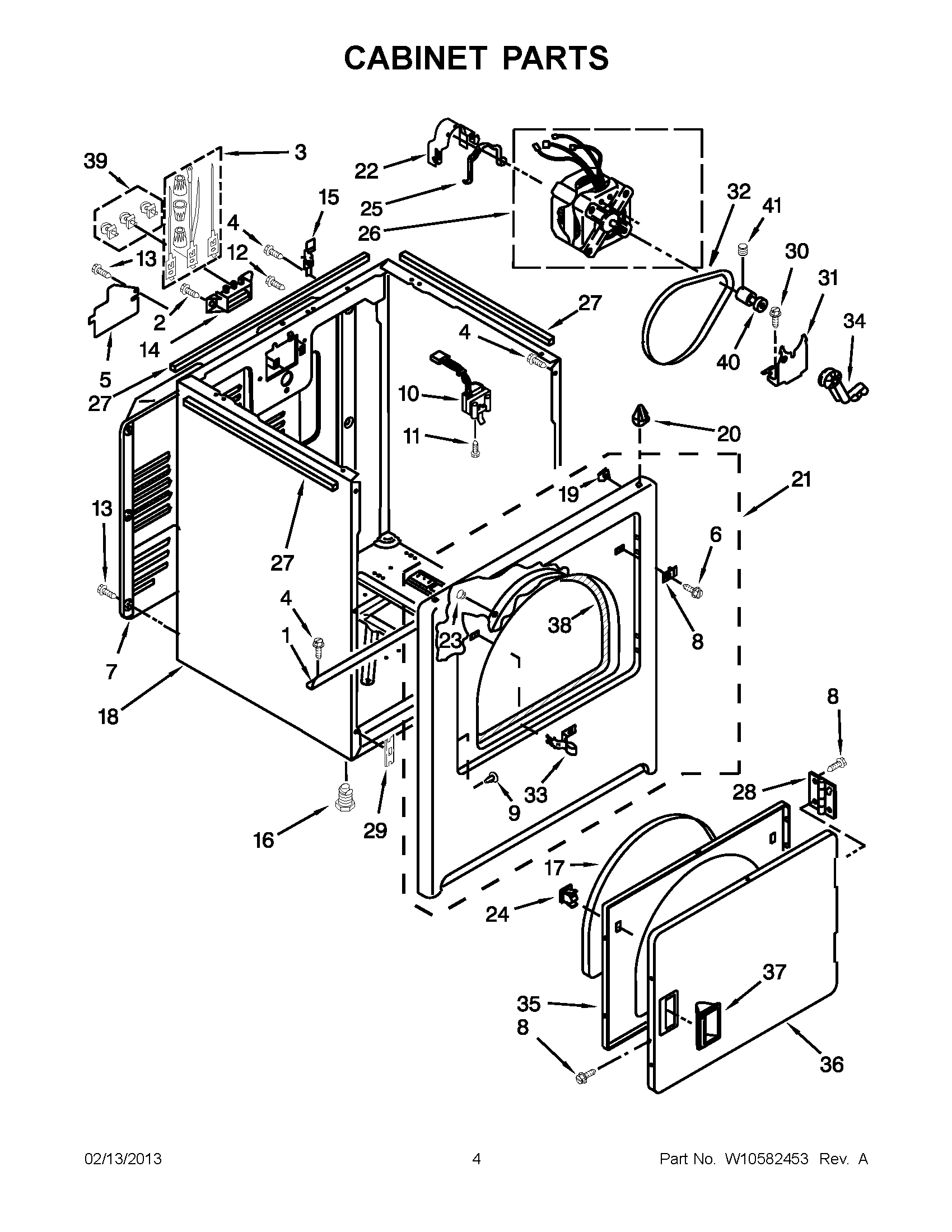

4GWED4750YQ1 02 – CABINET PARTS

Products

Position	Product
1	BRACKET, CABINET
2	WP308685 Whirlpool Microwave Screw
3	279318 Whirlpool Terminal
4	SCREW
5	W11539855 Whirlpool Refrigerator Pump
6	WP3403630 Whirlpool Plug
7	280043 Whirlpool Rear Panel
8	WP488627 Whirlpool Refrigerator Screw
9	WP3404413 Whirlpool Plug
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3390631 Whirlpool Screw
13	WP693995 Whirlpool Screw
14	WP3397659 Whirlpool Terminal Block
15	WP8066217 Whirlpool Hinge
16	49621 Whirlpool Leveling Feet
17	SEAL-DOOR DRYER
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	W10806345 Whirlpool Panel
22	WP3404162 Whirlpool Clamp
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	CLAMP
26	W11618508 Whirlpool Drive Motor
27	WPW10157932 Whirlpool Seal Foam
28	WPW10362431 Whirlpool Hinge Assembly
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
30	3400500 Whirlpool Screw
31	WP348780 Whirlpool Base
32	341241 Whirlpool Dryer Drum Belt
33	W11429589 Whirlpool Strike
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	WP3402341 Whirlpool Door
36	W10861227 Whirlpool Door Assembly
37	WPW10549553 Whirlpool Dryer Door Handle
38	W11035878 Whirlpool Bearing and Seal
39	279393 Whirlpool Terminal Block Screw and Nut Kit
40	W11233559 Whirlpool Motor Pulley
41	SCREW, SET
