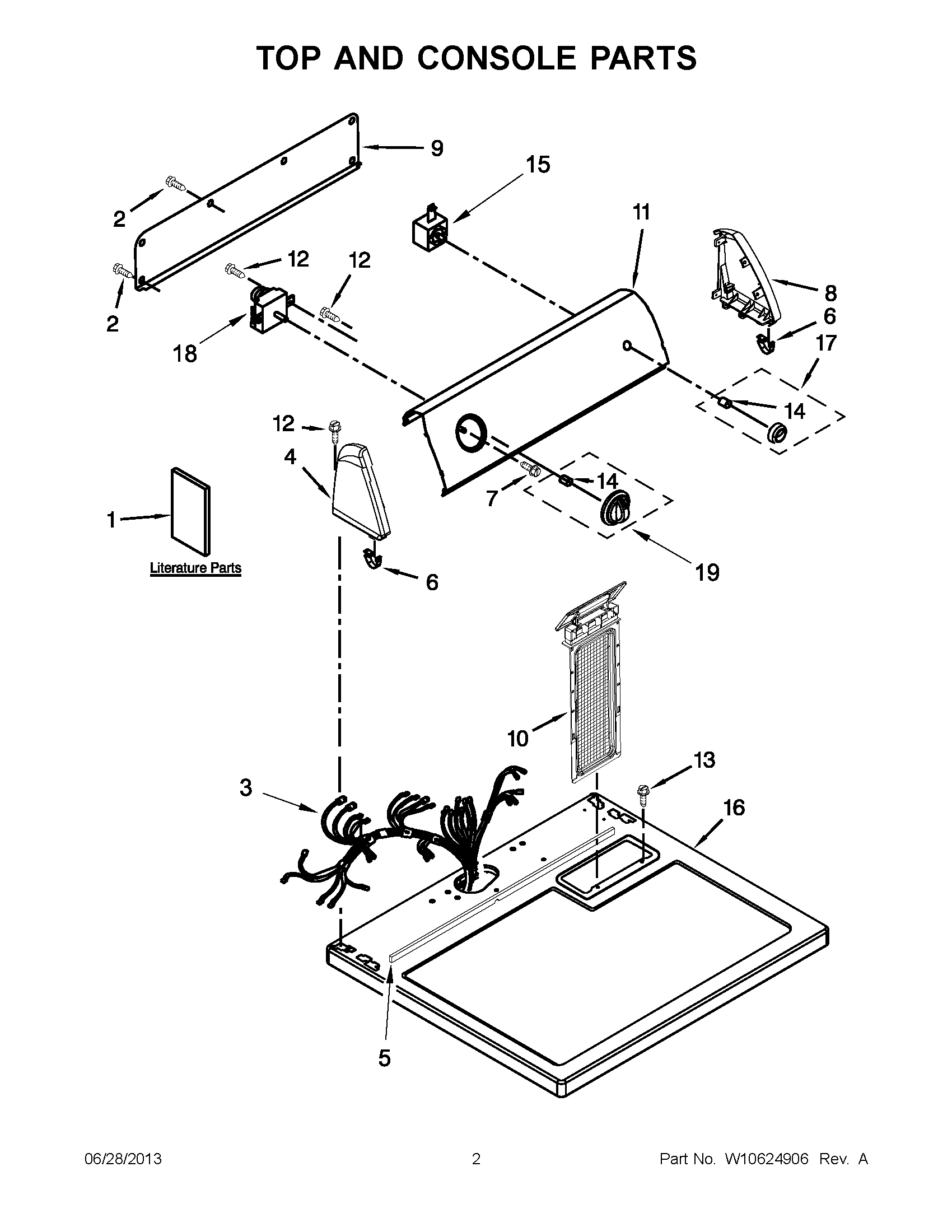

4GWED4750YQ2 01 – TOP AND CONSOLE PARTS

4GWED4750YQ2 01 – TOP AND CONSOLE PARTS

Written by

in

4GWED4750YQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
2WP693995 Whirlpool Screw
3HARNESS, WIRING
4WP8565957 Whirlpool Endcap Assembly
5W10316616 Whirlpool Seal
6WP8312709 Whirlpool Endcap Clip
7WP90767 Whirlpool Screw
8WP8565954 Whirlpool Endcap
9W10103406 Whirlpool Rear Panel
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11PANEL, CONTROL
13W11693756 Whirlpool Screw Assembly
14WP8536939 Whirlpool Spring Clip
15WP3977456 Whirlpool Start Switch
16WP8563663 Whirlpool Top Assembly
17W10034770 Whirlpool Knob Assembly
18WP8299781 Whirlpool Timer
19TIMER KNOB ASSEMBLY
