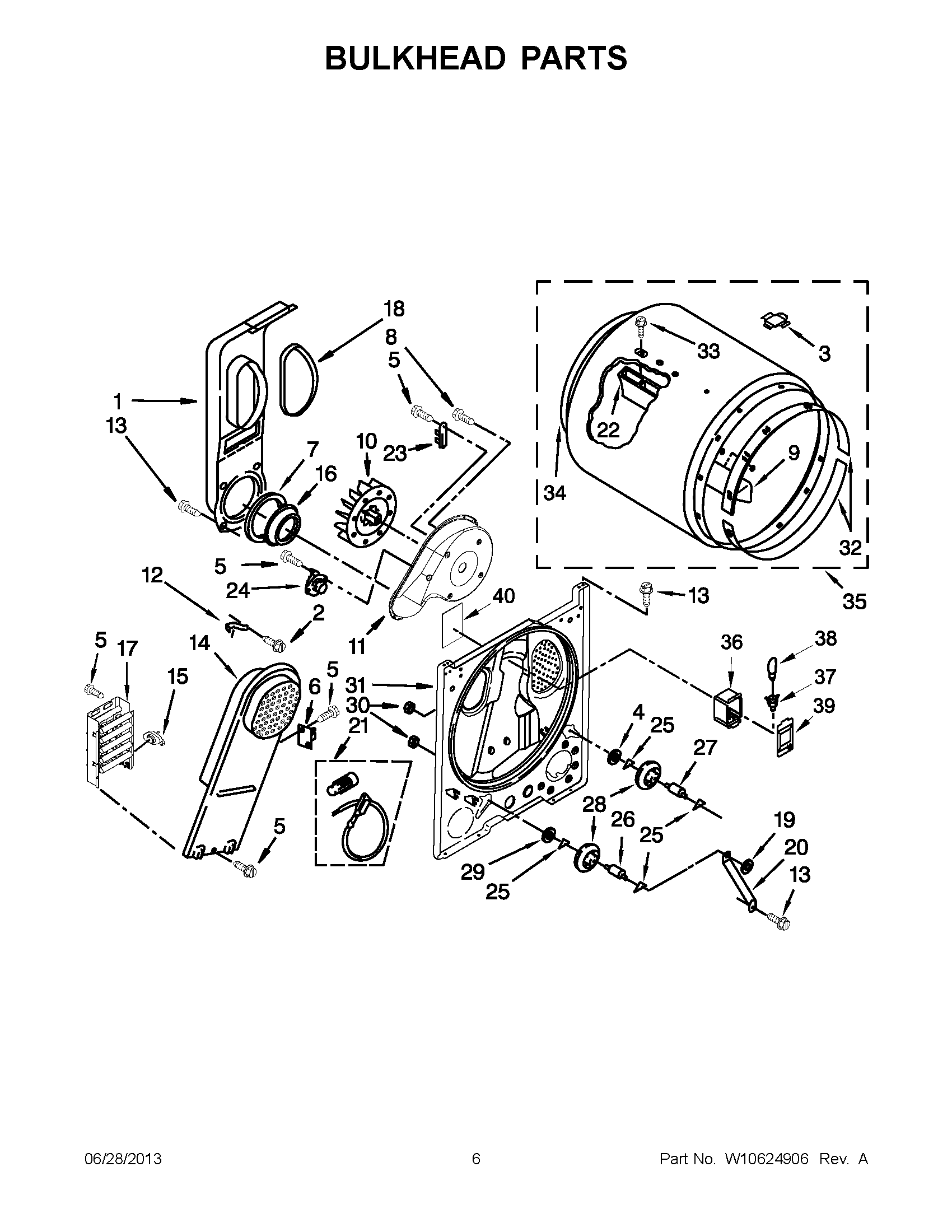

4GWED4750YQ2 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	8066086 Whirlpool Plug
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
7	W11415783 Whirlpool Seal
8	WP488729 Whirlpool Refrigerator Door Screw
9	WP3403636 Whirlpool Drum Baffle
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	CLIP, HEATER BOX
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	W11233063 Whirlpool Shield Assembly
17	279838 Whirlpool Dryer Heating Element 5400W
18	SEAL
19	WP90296 Whirlpool Clip
20	W11684613 Whirlpool Bracket
21	279457 Whirlpool Dryer Heating Element Wide Spade Connection
22	BAFFLE-DRM
23	WP3392519 Whirlpool Dryer Thermal Fuse
24	WP3387137 Whirlpool Thermostat
25	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26	SHAFT SUPPORT ROLLER DRYER
27	SHAFT SUPPORT ROLLER DRYER
28	349241T Whirlpool Dryer Drum Support Roller Kit
29	WP348197 Whirlpool Washer Assembly
30	W11229607 Whirlpool Nut
31	W11178667 Whirlpool Bulkhead Assembly
32	279441 Whirlpool Front Bearing Ring
33	W10853898 Whirlpool Screw
34	W10612022 Whirlpool Felt Seal
35	W10899578 Whirlpool Dryer Drum Assembly
36	3977373 Whirlpool Bracket
37	W11222979 Whirlpool Socket
38	WP22002263 Whirlpool Dryer 10W Light Bulb
39	W11226088 Whirlpool Lens Assembly
40	W11409002 Whirlpool Pad
