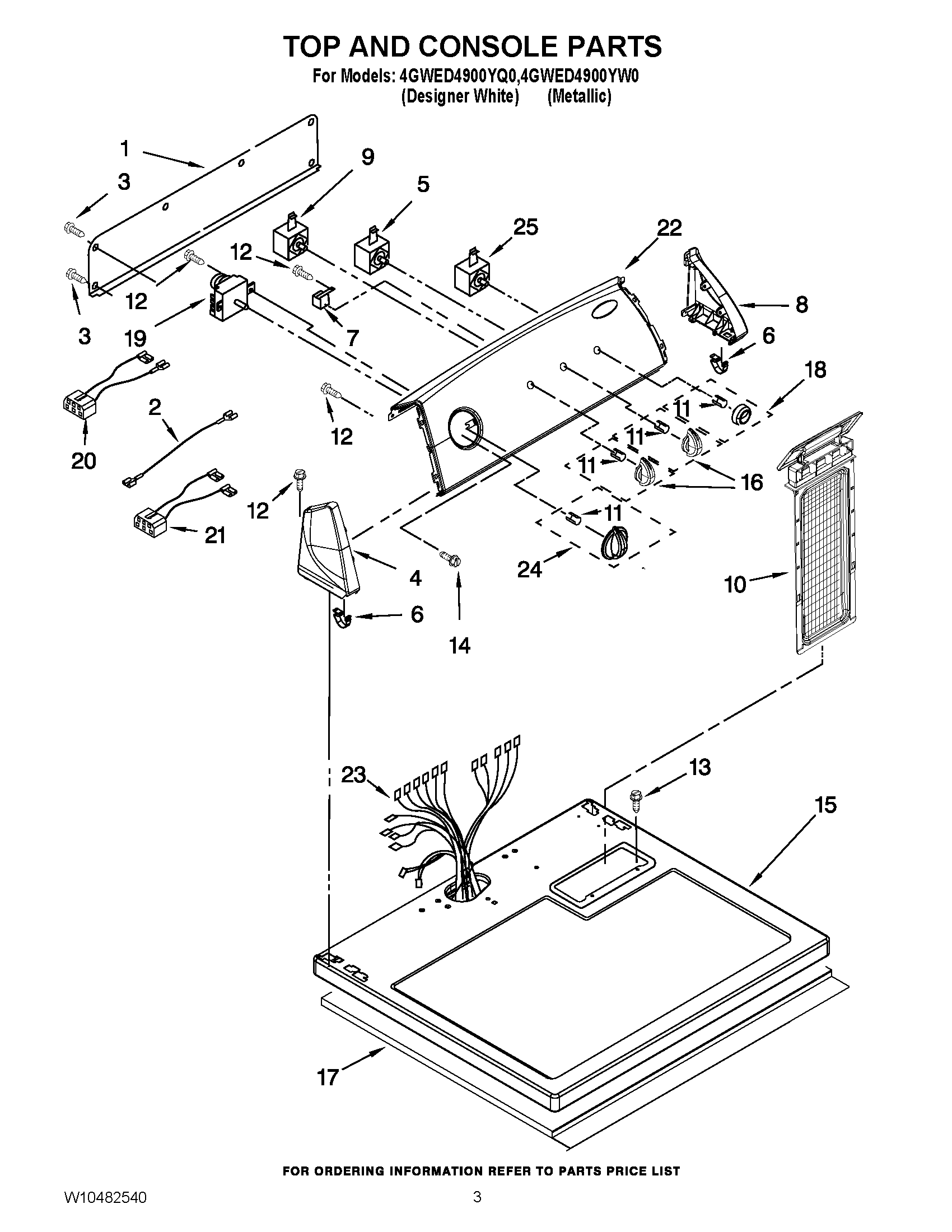

4GWED4900YQ0 02 – TOP AND CONSOLE PARTS

4GWED4900YQ0 02 – TOP AND CONSOLE PARTS

Written by

in

4GWED4900YQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2W10113080 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5WP3405156 Whirlpool Switch
6WP8312709 Whirlpool Endcap Clip
73952439 Whirlpool Buzzer
8WP8565954 Whirlpool Endcap
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP8563663 Whirlpool Top Assembly
16Knob, Control (3)
17W10123956 Whirlpool Sound Absorber
18WPW10034790 Whirlpool Knob
19WP3979618 Whirlpool Timer
203397695 Whirlpool Wire Harness
218539893 Whirlpool Wire Harness
22WPW10434962 Whirlpool Control Panel
22CONTROL PANEL & BRACKET ASSEMBLY (METALLIC)
23WPW10386312 Whirlpool Wire Harness
24TIMER KNOB ASSEMBLY
25WPW10112668 Whirlpool Relay Push to Start
