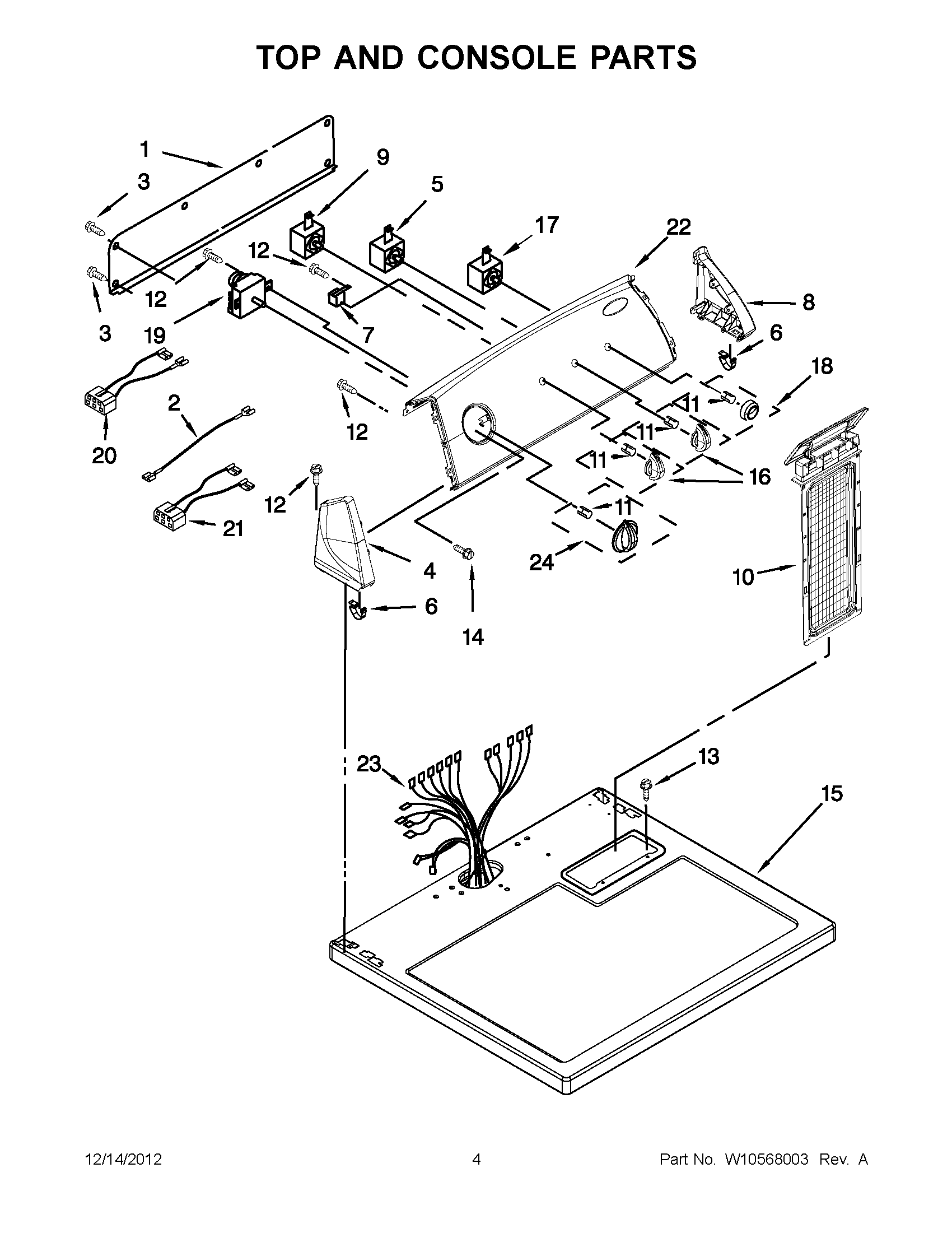

4GWED4900YQ1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
NI	WPW10034790 Whirlpool Knob
1	W10103406 Whirlpool Rear Panel
2	W10113080 Whirlpool Wire Harness
3	WP693995 Whirlpool Screw
4	WP8565957 Whirlpool Endcap Assembly
5	WP3405156 Whirlpool Switch
6	WP8312709 Whirlpool Endcap Clip
7	3952439 Whirlpool Buzzer
8	WP8565954 Whirlpool Endcap
9	WP3399639 Whirlpool Switch
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	W10850756 Whirlpool Screw
15	WP8563663 Whirlpool Top Assembly
16	Knob, Control (3)
17	WPW10112668 Whirlpool Relay Push to Start
18	CABINET (NOT A SERVICEABLE PART)
19	WP3979618 Whirlpool Timer
20	W10521801 Whirlpool Wire Harness
21	8539893 Whirlpool Wire Harness
22	WPW10434962 Whirlpool Control Panel
23	WPW10386312 Whirlpool Wire Harness
24	TIMER KNOB ASSEMBLY
