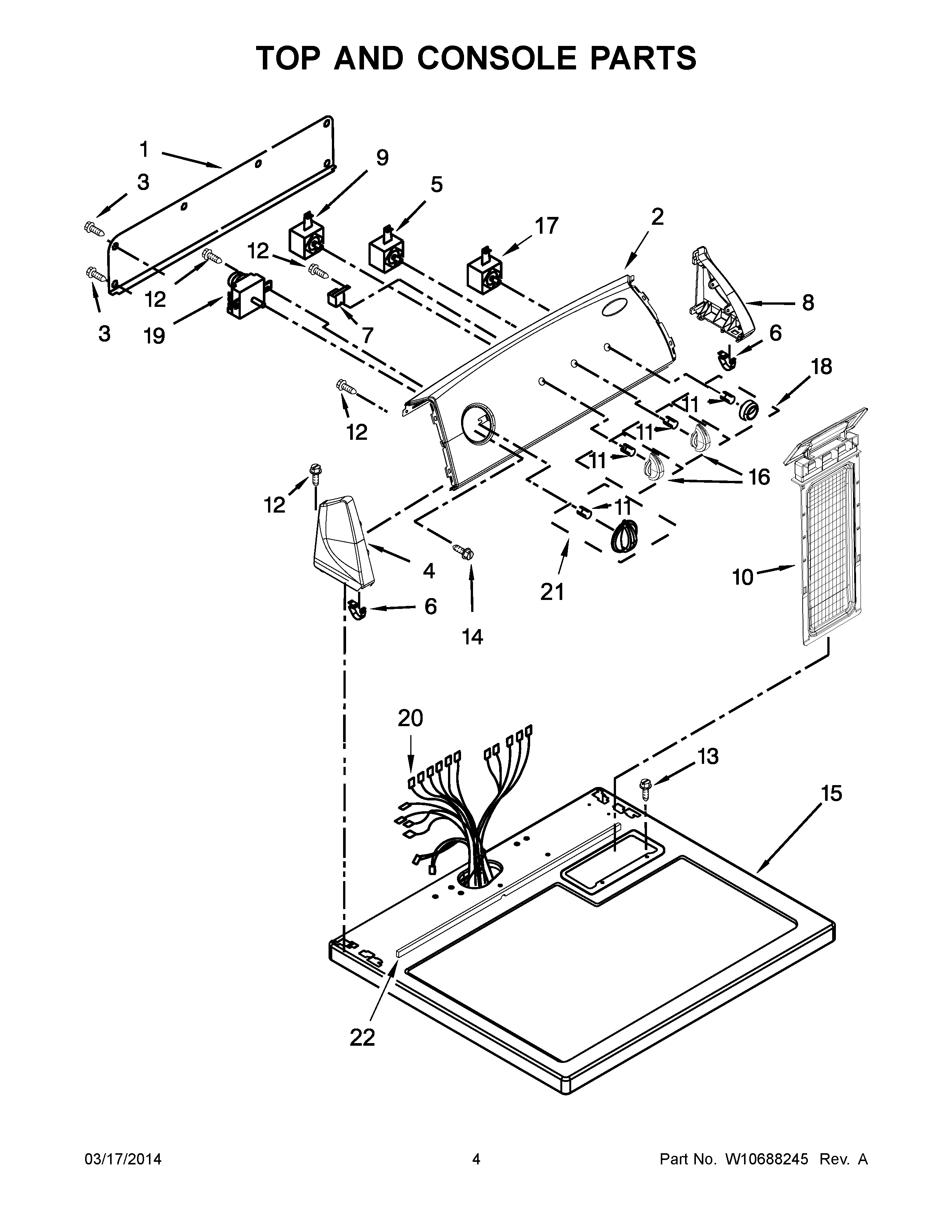

4GWED4900YQ3 03 – TOP AND CONSOLE PARTS

4GWED4900YQ3 03 – TOP AND CONSOLE PARTS

Written by

in

4GWED4900YQ3 03 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2WPW10434962 Whirlpool Control Panel
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5WP3405156 Whirlpool Switch
6WP8312709 Whirlpool Endcap Clip
73952439 Whirlpool Buzzer
8WP8565954 Whirlpool Endcap
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP8563663 Whirlpool Top Assembly
16Knob, Control (3)
17WPW10112668 Whirlpool Relay Push to Start
18WPW10034790 Whirlpool Knob
19WPW10185982 Whirlpool Timer
20HARNESS, MAIN
21TIMER KNOB ASSEMBLY
22W10316616 Whirlpool Seal
