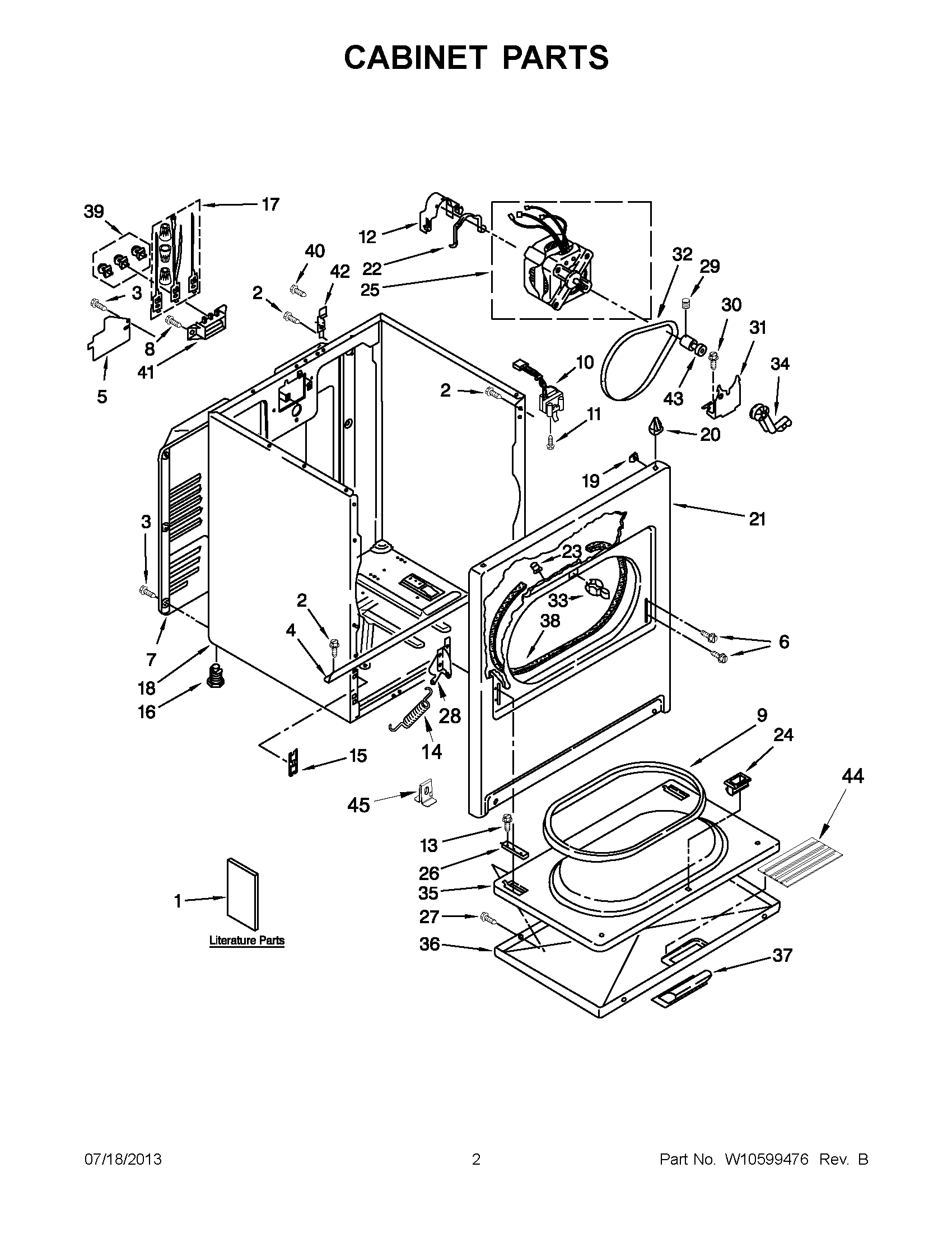

4GWED4900YW2 01 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WIRING DIAGRAM
1	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
2	SCREW
3	WP693995 Whirlpool Screw
4	BRACKET, CABINET
5	W11298298 Whirlpool Cover
6	Screw, 10-32 x 1/2
7	280043 Whirlpool Rear Panel
9	W10906683 Whirlpool Door Seal
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3404162 Whirlpool Clamp
13	WP308685 Whirlpool Microwave Screw
14	WPW10041960 Whirlpool Door Spring
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	279443 Whirlpool Primary Panel
22	CLAMP
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	W11618508 Whirlpool Drive Motor
26	W11252547 Whirlpool Clip Assembly
27	WP488627 Whirlpool Refrigerator Screw
28	WP8066057 Whirlpool Door Hinge
28	WP8066056 Whirlpool Door Hinge
29	SCREW, SET
30	3400500 Whirlpool Screw
31	WP348780 Whirlpool Base
32	341241 Whirlpool Dryer Drum Belt
33	279570 Whirlpool Dryer Door Latch Kit
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	WP695737 Whirlpool Door
36	WP3393549 Whirlpool Door Assembly
37	W10877261 Whirlpool Handle Assembly
38	W11035878 Whirlpool Bearing and Seal
39	279393 Whirlpool Terminal Block Screw and Nut Kit
40	WP3390631 Whirlpool Screw
41	WP3397659 Whirlpool Terminal Block
42	WP8066217 Whirlpool Hinge
43	W11233559 Whirlpool Motor Pulley
44	W10595510 Whirlpool Pad
45	W10575896 Whirlpool Clip
