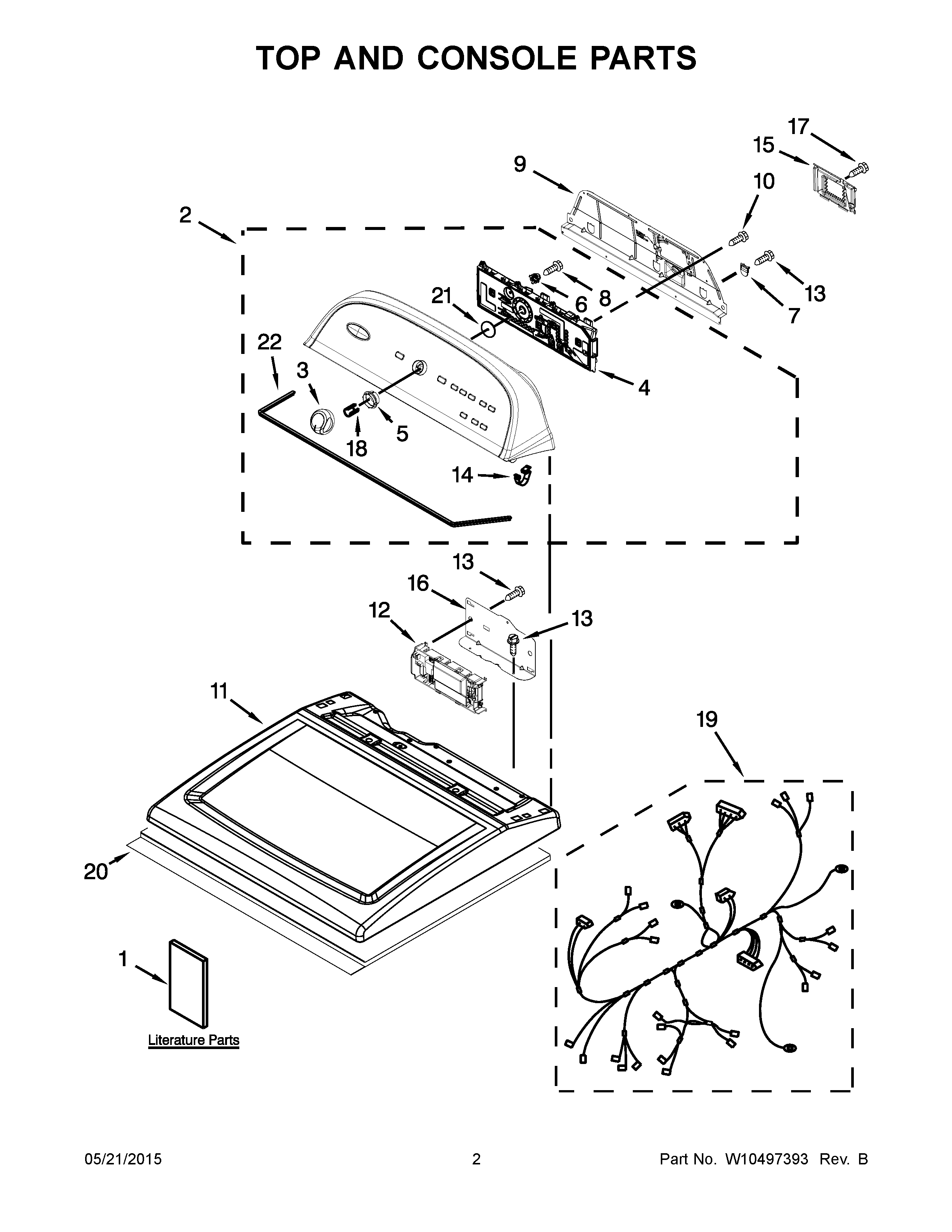

4GWED5500YW0 02 – TOP AND CONSOLE PARTS

4GWED5500YW0 02 – TOP AND CONSOLE PARTS

Written by

in

4GWED5500YW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AGUIDE, USE & CARE
1BTECH SHEET
2ASSEMBLY, CONSOLE (COMPLETE) (WHITE)
3WPW10251392 Whirlpool Knob
4WPW10362634-includeCORE Whirlpool WPW10362634 Refrigerator Electronic Control Board + Core
5W10325119 Whirlpool Spacer
6W10274524 Whirlpool Grommet
7W10279552 Whirlpool Plug
8W11213336 Whirlpool Nut
9W10096969 Whirlpool Rear Panel
11TOP (WHITE)
12WPW10346523-includeCORE Whirlpool WPW10346523 Refrigerator Electronic Control Board + Core
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10119283 Whirlpool Terminal Cover
16W10271580 Whirlpool Mount
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19HARNESS, MAIN
20W10123956 Whirlpool Sound Absorber
21W10323092 Whirlpool Seal
22W10280079 Whirlpool Seal
