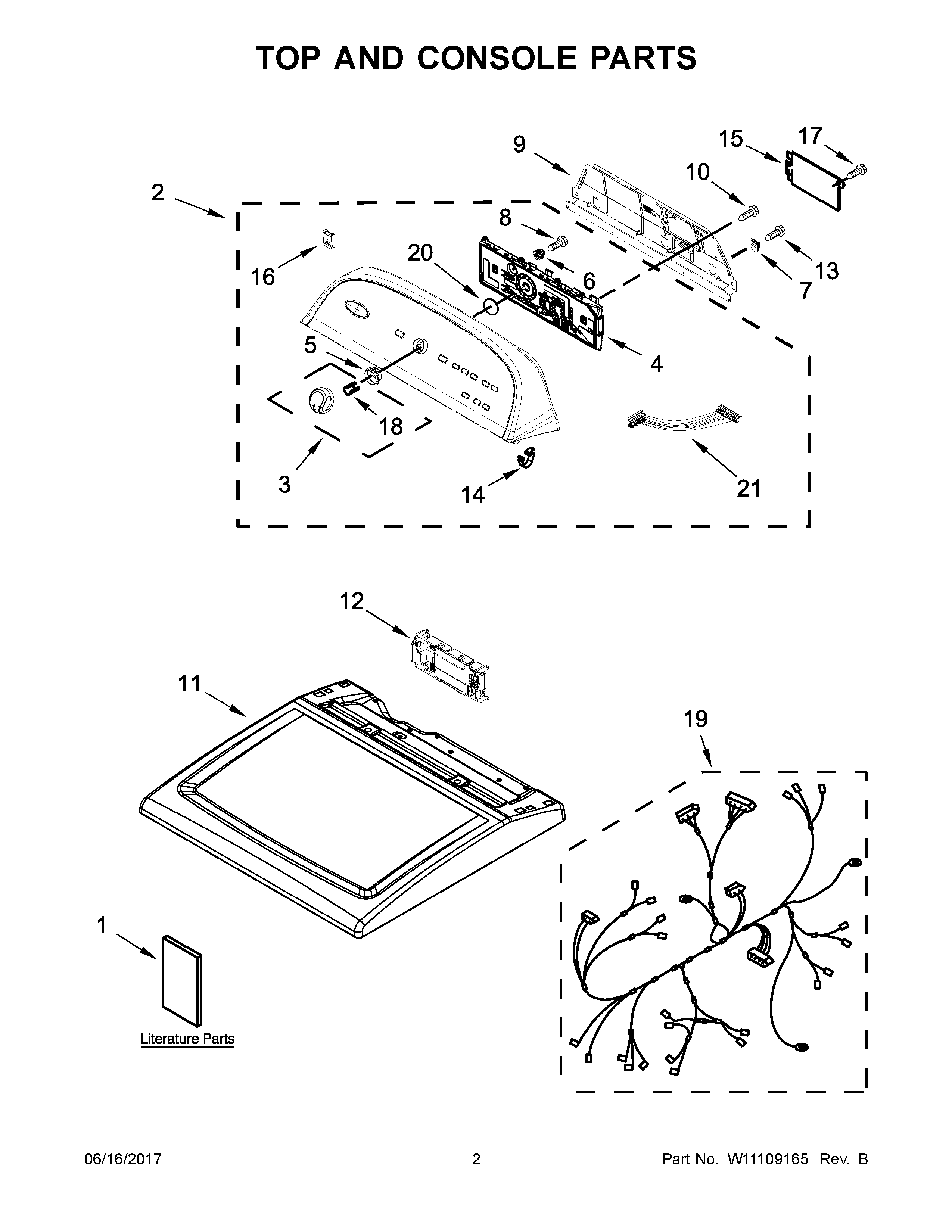

4GWED5500YW3 02 – TOP AND CONSOLE PARTS

4GWED5500YW3 02 – TOP AND CONSOLE PARTS

Written by

in

4GWED5500YW3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE
2ASSEMBLY, CONSOLE (COMPLETE) (WHITE)
3WPW10251392 Whirlpool Knob
4WPW10269623 Whirlpool Electronic Control Board + Core
5W10325119 Whirlpool Spacer
6W10274524 Whirlpool Grommet
7W10279552 Whirlpool Plug
8W10853898 Whirlpool Screw
9W10550615 Whirlpool Rear Panel
11TOP (WHITE)
12W11112655 Whirlpool Electronic Control Board + Core
13WP488729 Whirlpool Refrigerator Door Screw
14WP8312709 Whirlpool Endcap Clip
15COVER, TERMINAL BLOCK
16W11213336 Whirlpool Nut
17WP90767 Whirlpool Screw
18WP8536939 Whirlpool Spring Clip
19HARNESS, MAIN
20W10323092 Whirlpool Seal
21W10285495 Whirlpool Wire Harness
