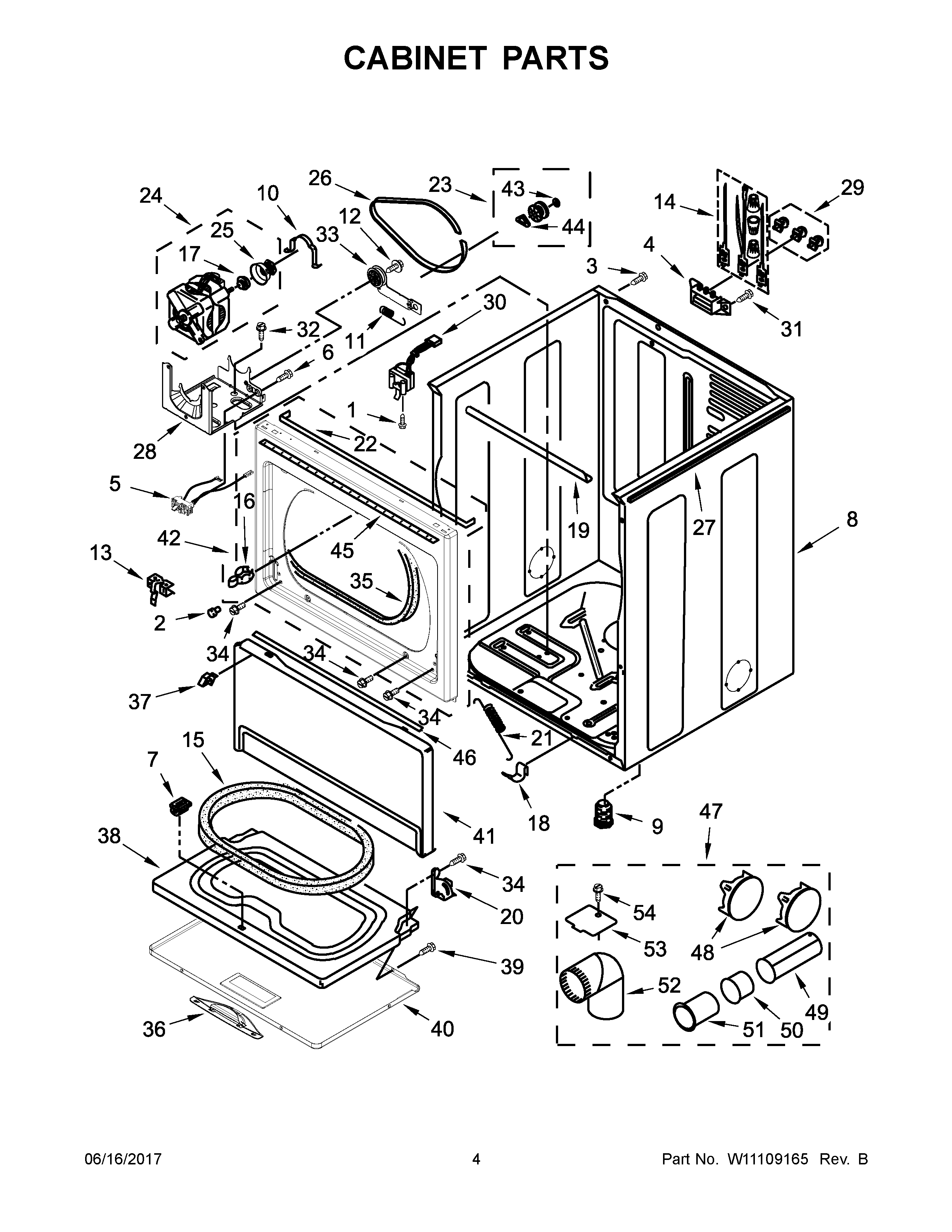

4GWED5500YW3 03 – CABINET PARTS

4GWED5500YW3 03 – CABINET PARTS

Written by

in

4GWED5500YW3 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WP3395530 Whirlpool Screw
2	693152 Whirlpool Bumper
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	WP8318457 Whirlpool Switch Plug
6	3400934 Whirlpool Screw
7	WP3389441 Whirlpool Door Catch
8	W11417441 Whirlpool Cabinet
10	WP660658 Whirlpool Clamp
11	WPW10446781 Whirlpool Spring
12	WP3389420 Whirlpool Screw
13	W10854043 Whirlpool Lever Assembly
14	279318 Whirlpool Terminal
15	W10325058 Whirlpool Door Seal
16	W11366436 Whirlpool Strike
17	WP3393657 Whirlpool Belt Retainer
18	WPW10291934 Whirlpool Clip
19	W10236068 Whirlpool Bracket
20A	WP3387559 Whirlpool Door Hinge
20	WP3387560 Whirlpool Door Hinge
21	WP3387565 Whirlpool Door Spring
22	W10312811 Whirlpool Seal
23	279640 Whirlpool Dryer Idler Pulley Kit
24	W10489550 Whirlpool Drive Motor
25	W10837625 Whirlpool Dryer Motor Pulley
26	661570V Whirlpool Dryer Drum Belt
27	W10336128 Whirlpool Seal
28	WP3387118 Whirlpool Base Assembly
29	279393 Whirlpool Terminal Block Screw and Nut Kit
30	SWITCH-DOOR DRYER
32	SCREW
33	W10837240 Whirlpool Dryer Idler Pulley
34	WP308685 Whirlpool Microwave Screw
35	WP3387242 Whirlpool Seal
36	WPW10284093 Whirlpool Handle
37	WP3388229 Whirlpool Dryer Spring Clip
38	WP8066045 Whirlpool Door Assembly
39	WP488627 Whirlpool Refrigerator Screw
40	DOOR, OUTER (WHITE)
41	WP3406797 Whirlpool Toe Panel
42	PANEL, FRONT (WHITE)
43	WPW10121334 Whirlpool Washer
44	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
45	Seal, Foam
46	SEAL, DEFLECTOR
47	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
48	WPW10404617 Whirlpool Plug Assembly
49	WP8563749 Whirlpool Exhaust Pipe
50	WPW10331278 Whirlpool Exhaust Pipe
51	WP8563747 Whirlpool Exhaust Pipe
52	WPW10416072 Whirlpool Elbow
53	WPW10354249 Whirlpool Cover
54	W11693756 Whirlpool Screw Assembly
