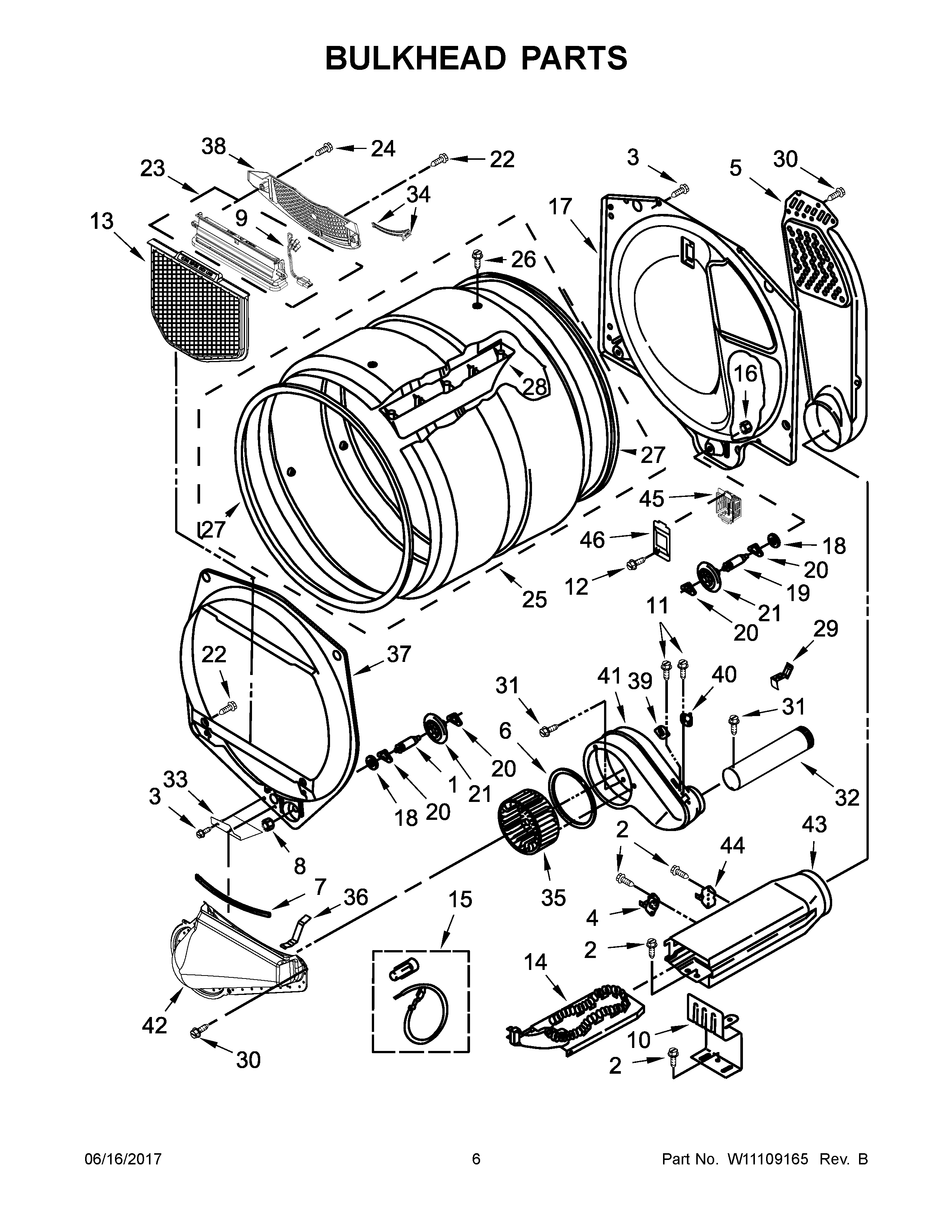

4GWED5500YW3 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
3	WP488729 Whirlpool Refrigerator Door Screw
4	THRMST-FIX
5	WP3387911 Whirlpool Air Duct
6	WP697770 Whirlpool Blower Cover Plate Seal
7	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	WPW10298258 Whirlpool Wire Harness
10	8066099 Whirlpool Bracket
12	WP693995 Whirlpool Screw
13	W10120998 Whirlpool Dryer Lint Screen Filter
14	WP3387747 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11299301 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
23	W11129408 Whirlpool Out Housing
24	WP308685 Whirlpool Microwave Screw
25	W10545923 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	WPW10113136 Whirlpool Drum Baffle
29	W11684573 Whirlpool Clip Assembly
30	WP90767 Whirlpool Screw
31	WP489463 Whirlpool Refrigerator Screw
32	279936 Whirlpool Exhaust Pipe
33	W11257251 Whirlpool Shield
34	WP3387223 Whirlpool Electrode Assembly
35	WHEEL
36	WP8066208 Whirlpool Clip
37	WP697557 Whirlpool Bulkhead Assembly
38	W11086603 Whirlpool Dryer Link Screen Air Grille
39	WP3392519 Whirlpool Dryer Thermal Fuse
40	WP8577274 Whirlpool Dryer Thermistor
41	W10888146 Whirlpool Housing
42	WPW10128606 Whirlpool Lint Duct
43	W10802681 Whirlpool Box Assembly
44	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
45	8578825 Whirlpool Bracket
46	W11226088 Whirlpool Lens Assembly
