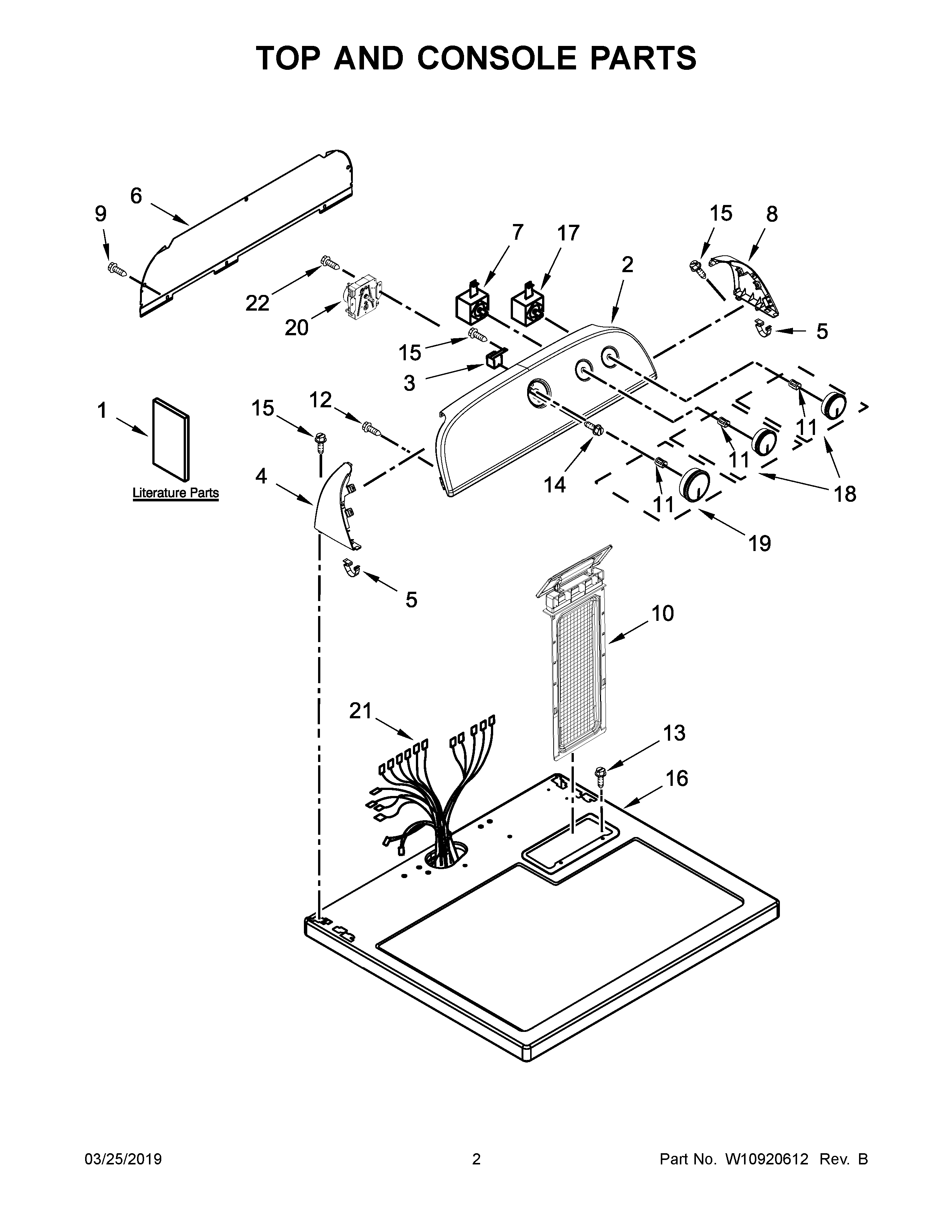

4GWGD4815FW0 02 – TOP AND CONSOLE PARTS

4GWGD4815FW0 02 – TOP AND CONSOLE PARTS

Written by

in

4GWGD4815FW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AUSE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
2ASSEMBLY, PANEL & BRACKET (WHITE)
33952439 Whirlpool Buzzer
4WPW10520782 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W10556829 Whirlpool Rear Panel
7W11050715 Whirlpool Switch
8WPW10520780 Whirlpool Panel
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP688805 Whirlpool Spring Clip
12WP693995 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP90767 Whirlpool Screw
16WPW10225059 Whirlpool Top
17WPW10112668 Whirlpool Relay Push to Start
19W10756270 Whirlpool Dryer Timer Knob
20WPW10185982 Whirlpool Timer
21HARNESS, WIRING
22WP3400818 Whirlpool Screw
